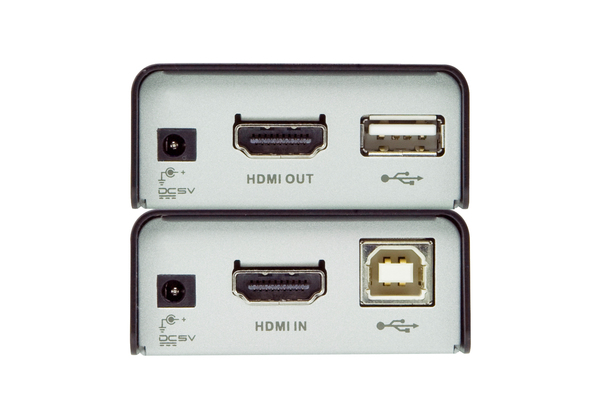

ATEN HDMI ja USB-jatke Ethernet-kaapeliin, 3D, 60m, HDCP, musta

Manufacturer: ATEN
ID: VE803
Product unavailable
This product is end of life or currently not available.

Key Specifications

Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Ports & interfaces
Connectivity technologyWired
USB connector typeUSB Type-A, USB Type-B
DC-in jackcheckmark
HDMI in1
Number of HDMI outputs1
Weight & dimensions
Weight495 g
Receiver dimensions (W x D x H)90 x 57.4 x 24 mm
Receiver weight160 g
Transmitter dimensions (WxDxH)90 x 57.4 x 24 mm
Transmitter weight160 g
Energy management
Operating voltage (transmitter)5 V
Operating voltage (receiver)5 V
Operational conditions
Operating relative humidity (H-H)0 - 80%
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)0 - 50 °C
Storage relative humidity (H-H)0 - 80%
Packaging data
Package weight652 g
Package depth239 mm
Package height160 mm
Package width59 mm
Packaging content
AC adapter includedcheckmark
Cables includedUSB
Manualcheckmark
Mounting kitcheckmark
Features
TypeAV transmitter & receiver
MaterialMetal
Maximum resolution1920 x 1200 pixels
Product colourBlack
Bandwidth225 MHz
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Supported video modes1080i, 1080p
HDCPcheckmark
3Dcheckmark
Electrostatic Discharge (ESD) protection15 kV
Cable types supportedCat5e
Maximum transfer distance60 m
Logistics data
Master carton height338 mm
Master carton width315 mm
Master carton weight13.5 kg
Master carton length490 mm
Quantity per master carton20 pc(s)
Master carton net weight9.9 kg
EAN4710423779716
Source: Icecat.biz

The VE803 HDMI USB Extender extends an HDMI signal up to 60 meters from the HDMI source using two Cat 5e cables. It is capable of sending 1080i signals up to 60 meters and 1080p signals up to 40 meters.

The VE803 is equipped with USB connectors which allow you to extend any USB device between the units. The USB feature also provides support for touch panel control, allowing you to control the local HDMI source device from the remote display, or control the remote display through the local unit.

1x VE803T HDMI USB Extender
1x VE803R HDMI USB Extender
1x 0AD6-1705-10EG Power Adapter
1x USB Cable (1.8 m)
1x Mounting Kit
1x User Instructions
