No price development information for this product.

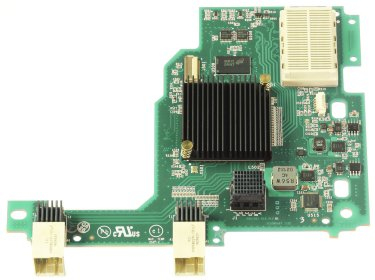

Emulex 10GbE Virtual Fabric Adapter Advanced II for IBM BladeCenter HS23 - Verkkoadapteri - PCI Express 2.0 x8 matala profiili - Gigabit LAN, 10 Gigabit LAN - 2
This product is end of life or currently not available.
System requirements | |
Windows operating systems supported | |
Linux operating systems supported | |
Ports & interfaces | |
Interface | Ethernet |
Connectivity technology | Wired |
Ethernet LAN (RJ-45) ports | 2 |
Host interface | PCI Express |
Weight & dimensions | |
Weight | 130 g |
Height | 15 mm |
Width | 160 mm |
Depth | 125 mm |
Operational conditions | |
Operating relative humidity (H-H) | 8 - 80% |
Storage temperature (T-T) | -40 - 60 °C |
Operating temperature (T-T) | 0 - 50 °C |
Storage relative humidity (H-H) | 5 - 80% |
Networking | |
Maximum data transfer rate | 10000 Mbit/s |
Ethernet LAN | |
Networking standards | IEEE 802.1Q,IEEE 802.3,IEEE 802.3ad |
Jumbo frames support | |
Ethernet LAN data rates | 1000,10000 Mbit/s |
Packaging data | |
Package weight | 400 g |
Package depth | 208 mm |
Package height | 58 mm |
Package width | 229 mm |
Wireless LAN features | |
Wi-Fi | |
Design | |
Internal | |
EAN | 0883436229555 |
Warranty | 1 year |
Source: Icecat.biz |
The Emulex 10GbE Virtual Fabric Adapter II (VFA II) and Emulex 10GbE VFA Advanced II for IBM® BladeCenter® HS23 are the new options available to the existing IBM BladeCenter Virtual Fabric portfolio. These adapters are supported on the new HS23 blade to enable up to four uplink/downlink ports for increased I/O bandwidth and maximum performance. The combination of HS23 and Emulex options enables clients to simplify their I/O infrastructure by reducing the number of switches needed inside the chassis while supporting Ethernet and virtual NICs (vNICs) using the same hardware components.
The virtual NICs are configured to meet the client's mix of network connectivity and throughput demands for today's complex server application environments. Both physical 10 Gbps ports on the adapter can be divided into four virtual ports with bandwidth allocation in 100 Mbps increments up to the maximum of 10 Gbps per physical port.
