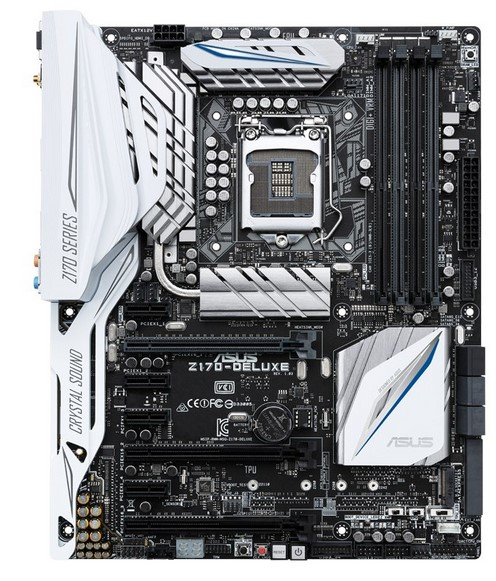

Asus Z170 Deluxe, ATX motherboard

Z170-DELUXE
Product is end of life or currently not available. Please contact our customer service for more information regarding this product.
Specifications
Processor
Processor manufacturerIntel
Maximum number of SMP processors1
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Processor socketLGA1151
Memory
Maximum internal memory64 GB
Non-ECCcheckmark
Supported memory clock speeds2133,2400,2666,2800,3000,3200,3300 MHz
Supported memory typesDDR4-SDRAM
Memory channelsDual
Unbuffered memorycheckmark
Memory slots typeDIMM
Supported memory module capacities16GB
Weight & dimensions
Width305 mm
Depth244 mm
Energy management
Power source typeATX
Networking
Wi-Fi standardsIEEE 802.11a,IEEE 802.11g,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11n
Bluetooth version4.0
Ethernet LANcheckmark
Bluetoothcheckmark
LAN controllerIntel® I211-AT
Wi-Ficheckmark
Ethernet interface typeGigabit Ethernet
Internal I/O
USB 2.0 connectors2
S/PDIF out connectorcheckmark
CPU fan connectorcheckmark
ATX Power connector (24-pin)checkmark
Number of EATX power connectors1
Number of chassis fan connectors4
Front panel audio connectorcheckmark
TPM connectorcheckmark
EPS power connector (8-pin)checkmark
USB 3.0 (3.1 Gen 1) connectors2
Number of SATA III connectors6
Supported storage drive interfacesSerial ATA III
Number of SATA Express connectors1
Thunderbolt headers1
Back panel I/O ports
USB 2.0 ports quantity1
Ethernet LAN (RJ-45) ports2
Headphone outputs1
Microphone incheckmark
S/PDIF out portcheckmark
HDMI ports quantity1
DisplayPorts quantity1
DisplayPort version1.2
USB 3.0 (3.1 Gen 1) Type-A ports quantity1
USB 3.1 (3.1 Gen 2) Type-A ports quantity6
Storage controllers
RAID levels1, 5, 10
Expansion slots
PCI Express x1 slots4
PCI Express x16 (Gen 3.x) slots3
Number of M.2 (M) slots1
BIOS
BIOS memory size16 MB
BIOS typeUEFI AMI
ACPI version5.0
Clear CMOS buttoncheckmark
Graphics
Maximum graphics adapter memory512 MB
Graphics adapterHD Graphics
Parallel processing technology supportSLI
On-board graphics adaptercross
Discrete graphics supportcheckmark
Number of displays supported3
Processor special features
Intel® Turbo Boost Technology2.0
Intel® Quick Sync Video Technologycheckmark
Intel® InTru™ 3D Technologycheckmark
Intel® Clear Video HD Technology (Intel® CVT HD)checkmark
Intel® Insider™checkmark
Intel Extreme Memory Profile (XMP)checkmark
Features
Motherboard chipsetIntel® Z170
Motherboard form factorATX
Audio output channels7.1 channels
Windows operating systems supportedWindows 10 Education,Windows 10 Enterprise,Windows 10 Home,Windows 10 Pro,Windows 7 Enterprise x64,Windows 7 Home Basic x64,Windows 7 Home Premium x64,Windows 7 Professional x64,Windows 7 Starter x64,Windows 7 Ultimate x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Motherboard chipset familyIntel
Component forPC
Audio chipRealtek ALC1150
EAN4712900113884
