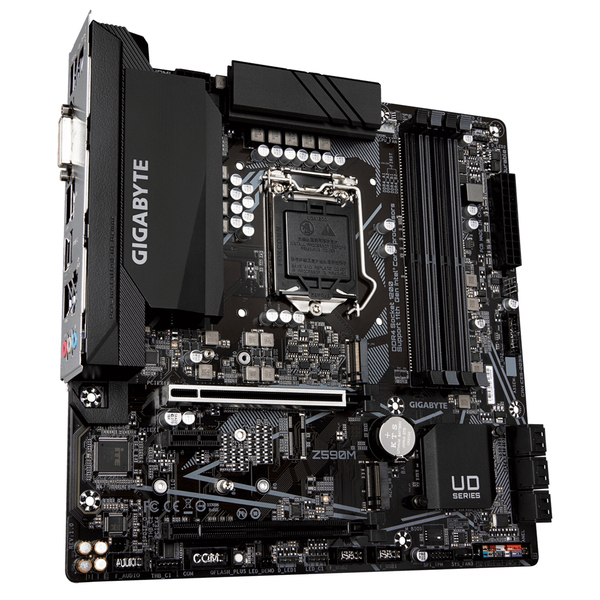

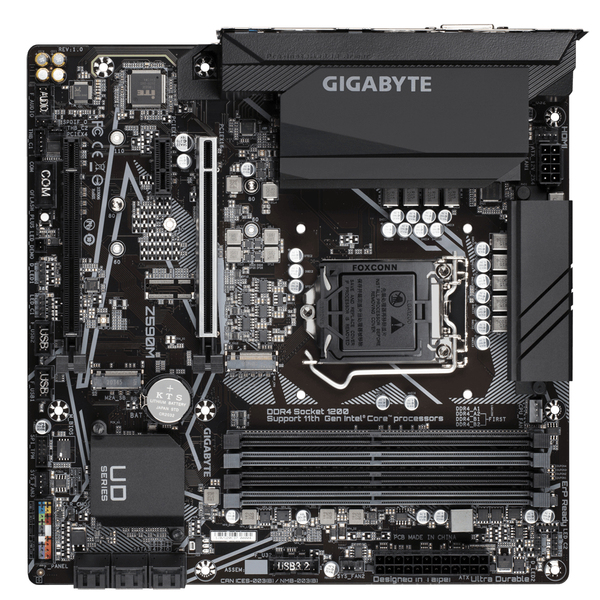

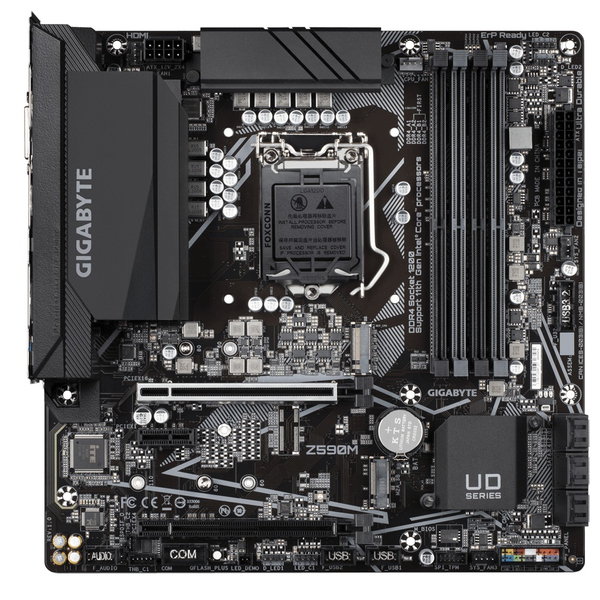

Gigabyte Z590M mATX - motherboard

Gigabyte Z590M mATX - motherboard

Производитель: GIGABYTE
ID: Z590M
152,90 € Показать НДС 0% Показать НДС 24%
Онлайн: 9 шт Время доставки: 24.05 - 25.05
Характеристики
Описание
Наличие в магазинах
Доставка
Динамика цен
Процессор
Производитель процессораIntel
Совместимые серии процессоровПроцессор Intel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel Core i9, Процессор Intel® Pentium®
Сокет процессораLGA 1200
Поддерживаемые сокеты процессоровLGA 1200 (Socket H5)
Память
Максимальная внутренняя память128 GB
Error-correcting code (ECC)checkmark
без функции коррекции ошибокcheckmark
Поддерживаемые частоты памяти2133,2400,2666,2800,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz
Поддерживаемые типы памятиDDR4
Каналы памятиDual-channel
Небуферизованная памятьcheckmark
Тип слотов памятиDIMM
Количество слотов памяти4
Вес и размеры
Ширина244 mm
Глубина244 mm
Сеть
Подключение Ethernetcheckmark
Wi-Ficross
Тип Ethernet интерфейсаГигабитный Ethernet
Внутренние порты
Разъемы USB 2.02
Разъем выхода S/PDIFcheckmark
Разъем вентилятора центрального процессораcheckmark
Разъем питания ATX (24-конт.)checkmark
Количество разъемов вентилятора корпуса3
Аудиоразъем передней панелиcheckmark
TPM коннекторcheckmark
EPS разъем питания (8-конт)checkmark
Разъемы USB 3.2 Gen 1 (3.1 Gen 1)1
Количество разъемов SATA III6
Коннекторы последовательного порта1
разъемы Thunderbolt2
Разъем передней панелиcheckmark
12В разъем питанияcheckmark

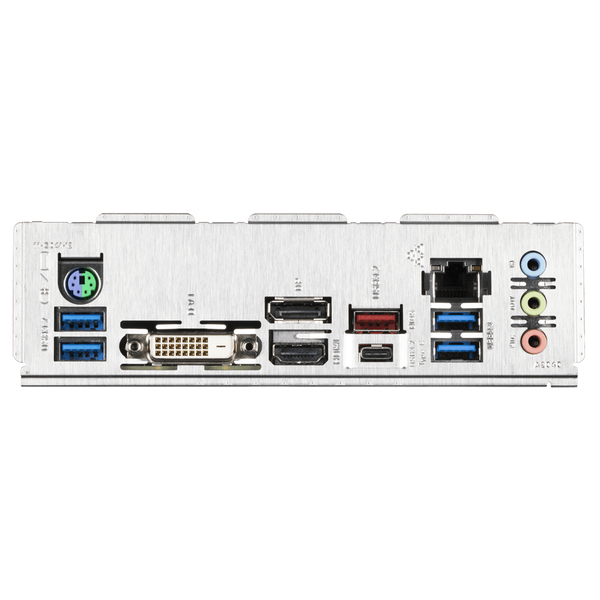

Порты на задней панели
Количество портов PS/21
Тип USB коннектораUSB тип-A, USB Type-C
Количество портов Ethernet LAN ( RJ-45)1
Линейные выходы наушников3
Линейный вход микрофонаcheckmark
Количество портов DVI-D1
Количество HDMI портов1
Версия HDMI1.4
Количество портов DisplayPort1
Версия DisplayPort1.2
Количество портов USB 3.0 (3.1 Gen 1) Type-A4
Количество портов USB 3.2 Gen 1 (3.1 Gen 1) Type-С1
Количество портов USB 3.1 (3.1 Gen 2) Type-A1
Контроллеры хранения данных
Уровни RAID0,1,5,10
Количество поддерживаемых дисков памяти8
Поддерживаемые типы накопителейHDD & SSD
Поддерживаемые интерфейсы носителяM.2,SATA III
Содержимое упаковки
Поставляемое ПОNorton Internet Security, cFosSpeed
Слоты расширения
PCI Express x16 слоты2
PCI Express x1 слоты1
Количество M.2 (M) слотов2
BIOS
Размер памяти BIOS256 Mbit
Тип BIOSUEFI AMI
Версия ACPI5.0
Перемычка Clear CMOScheckmark
Desktop Management Interface (DMI) версия2,7
Графический адаптер
Максимальное разрешение4096 x 2304 пикселей
Поддержка технологии параллельной обработкиCrossFire
HDCPcheckmark
Количество поддерживаемых дисплеев3
Свойства
Чипсет материнской платыIntel Z590 Express
Формат материнской платыМикро ATX
Выходные звуковые каналы7.1 канала
Мониторинг состояния ПКВентилятор, Температура, Напряжение
Поддерживаемые операционные системы WindowsWindows 10 x64
Семейство чипсета материнской платыIntel
Комплектующие дляПК
EAN4719331815479
Source: Icecat.biz

Direct 8+1 Phases Digital VRM Solution with DrMOS
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

- Digital PWM Controller to deliver appropriate voltage to the CPU.
- Direct 8+1 Phases DrMOS without PWM Doublers, each power phase connects directly to the CPU, With capability to handle 400 Amps current in total.
- All-solid capacitors to improve transient response and minimize oscillation.
- 8 Solid Pin CPU Power Connector.

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

High Current Support
Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
Precision Control
Up to 7 temperature/fan speed control points for precise fan curve
Dual Curve Mode
Slope/Stair dual mode for different user scenario

Smart Fan 6 BIOS UI
Improve fan curve UI

We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.
Slope/Stair dual graph mode
Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.
Manual Input
For advanced users, we provide fan speed manual input for more precise control.
EZ Tuning
Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.
Fan curve profile
Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.

Dual PCIe 4.0/3.0 x4 M.2 Connectors
GIGABYTE Ultra Durable Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their Systems’ potential.

Intel® GbE LAN with cFosSpeed Internet Accelerator Networking
Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Connecting the Future - USB Type-C®
The World's Next Universal Connector Reversible USB Type-C® with USB 3.2 Gen1

The USB Type-C® is a new reversible connector that is loaded with useful features such as USB 3.2 Gen1 support for 10Gb/s transfer speed. Powered by the Intel® USB 3.2 Gen1 controller, this little port provides the best USB Type-C® experience possible.

RGB FUSION 2.0
With Z590M Motherboard, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on Z590 Series Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

With Z590M Motherboard will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.

With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.

GIGABYTE RGB Fusion APP
Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.

Solid Pin Power Connectors
Z590 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan

Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.

With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

START SULFURIZATION PROTECTION
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

Refreshed BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

APP CENTER
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.

EasyTune™
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.
