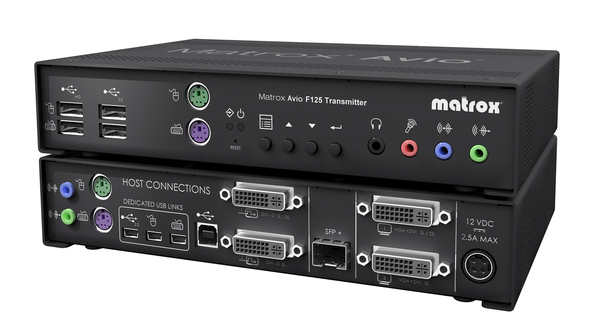

Avio F125 Transmitter unit

2917,90 € Показать НДС 0% Показать НДС 24%
Онлайн: Нет в наличии Время доставки: Нет в наличии
Наличие / Доставка
Динамика цен
Технические характеристики
Размеры (ШхГхВ)215,9 x 41,9 x 135,6 мм
Максимальное разрешение4096 x 2160 пикселей

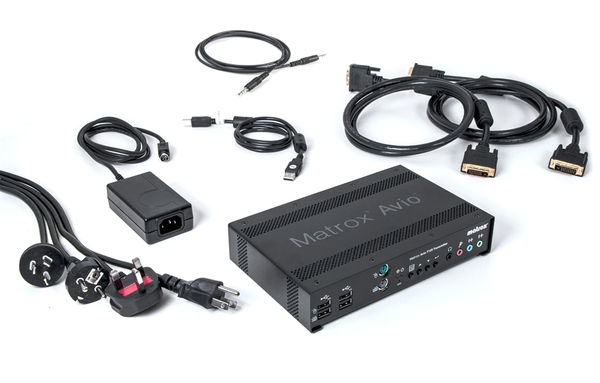

Содержимое упаковки
Сетевой адаптер в комплектеcheckmark
Поставляемые кабелиКабель переменного тока, Аудио (3,5 мм), DVI, USB
СертификацияACMA, CE, FCC, VCCI, KCC
Монтаж в стойкуcheckmark
Plug & Playcheckmark
Технология подключенияПроводная
Цвет товараЧерный
Экранное меню (OSD)checkmark
Легкая установкаcheckmark
Максимальное аналоговое разрешение1920 x 1200 пикселей
Максимальное цифровое разрешение4096 x 2160 пикселей
Поддерживаемые типы кабеляФибра
Гарантия3 лет
Source: Icecat.biz

Dual-DVI Fiber Optic KVM Extender Delivers

Uncompromised Performance

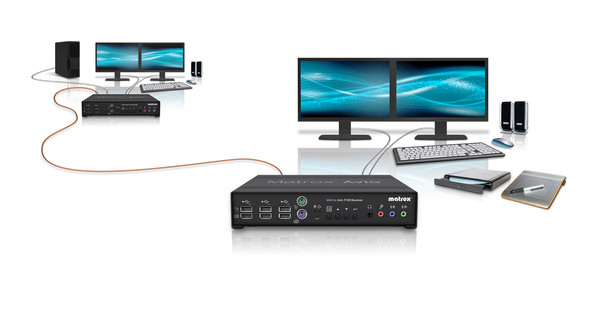

Matrox Avio F120 and F125 KVM extenders consist of a transmitter and receiver pair. The Avio transmitter unit captures I/O functionality of the host computer and sends it uncompressed over a single duplex LC-LC fiber optic cable to the Avio receiver unit, letting you separate the computer from the user environment and place it in a climate controlled machine room. Matrox Avio is the ideal KVM extension solution for design, 3D visualization, process control, broadcast, post-production, industrial and military applications where system performance and security are key requirements. Its high bandwidth transmission maintains system performance and does not introduce any latency or dropped frames. Matrox Avio is the solution designed to minimize total ownership cost and maximize performance.

- 10Gbps SFP+ transceivers enable uncompressed video transmission at full frame rate across a single duplex LC-LC fiber optic cable
- Smooth HD, 2K, 4K video playback without dropping any frames
- Two Single-link DVI monitor or one Dual-link DVI display support
- USB HID ports for keyboard, mouse, touchscreens and other HID devices.
- USB 2.0 high-speed support for touchscreens, printers, scanners, hard drives, as well as isochronous USB 2.0 audio and video devices (available with Avio F125)
- Maximum distances of 400 m (1312 ft) in multimode and 10 km (6.2 mi) in single-mode 1
- Digital-to-analog conversion enables support for 2x VGA monitors with a maximum resolution of 1920x1200 60Hz
- Analog stereo audio support to place audio devices such as speakers, microphones and headphones away from the system
- DDC compliance and advanced EDID management ensure a reliable communication between the system and the remote displays
- HDCP compliance for protected content playback (available with Avio F125) 2
- PS/2 keyboard and mouse support for industrial or legacy systems
- Local outputs on the Avio transmitter unit for easy maintenance or to share the remote desktop on a collaborative video wall
- Passive cooling (no fan) for silent operation and extra reliability
- On-screen Display (OSD) to view diagnostic information and access advanced configuration options
- Rack mountable or stand alone units
- Plug & play design for easy deployment with no software installation
- Compatibility with Microsoft® Windows®, Mac OS X®, Linux® and UNIX® operating systems
- Compatible with select layer one fiber optic network switches
- Global sales and technical support

1 Matrox Avio SFP+ Single-Mode upgrade kit required (Part# AV-SFP10G-2SMF)
2 HDCP pass through is available on Avio F125 and requires an HDCP compliant video source and destination. By default, HDCP is disabled and can be enabled through the Avio OSD.
