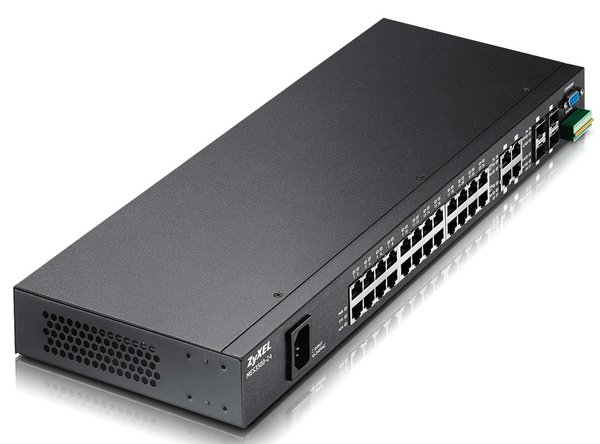

ZYXEL MES3500-24 Switch

ZYXEL
MES3500-24-EU01V1F
743,90 € Показать НДС 0% Показать НДС 24%
Онлайн: 2 шт доступно Время доставки: 1-4 дней
Характеристики
Описание
Наличие / Доставка
Динамика цен
Порты и интерфейсы
Количество комбинированных SFP портов4
Тип RJ-45 Ethernet портов для основного подключенияFast Ethernet (10/100)
Количество RJ-45 Ethernet портов для основного подключения24
Вес и размеры
Вес2,6 кг
Высота44,5 мм
Ширина440 мм
Глубина200 мм
Энергопитание
Потребляемая мощность (в обычном режиме)14 Вт
Входящее напряжение сети110 - 240 В
Внешние условия
Диапазон относительной влажности при эксплуатации10 - 95%
Диапазон температуры хранения-40 - 70 °C
Диапазон рабочих температур0 - 50 °C
Протоколы
Протоколы управленияSNMP v1/v2c/v3, Telnet, DHCP
Сеть
Стандарты сетиIEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Поддержка управления потокамиcheckmark
Зеркальное отражение портаcheckmark
Объединение каналовcheckmark
Контроль "широковещательного шторма"checkmark
Ограничение скоростиcheckmark
Протокол Spanning treecheckmark
Поддержка 10Gcheckmark
Передача данных
Размер адресной таблицы16000 записей
Коммутационная способность12,8 Гбит/с
Поддержка Jumbo Framescheckmark
Количество очередей8
Данные об упаковке
Масса брутто3,45 кг
Глубина упаковки286 мм
Высота упаковки71 мм
Ширина упаковки495 мм
Безопасность
Алгоритмы шифрования данных802.1x RADIUS,SSH,SSL/TLS
Фильтрация MAC-адресовcheckmark
Список контроля доступа (ACL)checkmark
Отслеживание сетевого трафика IGMPcheckmark
Характеристики управления
Поддержка MIBRFC1213 MIB II
Уровень свичаL2
Поддержка Quality of Service (QoS)checkmark
Управление через веб-интерфейсcheckmark
Тип свичаУправляемый
Дизайн
СертификацияBSMI
CE
FCC
EN 60950-1
IEC 60950-1
EU RoHS
Светодиодные индикаторыcheckmark
Цвет товараЧерный
Тип корпусаОтдельностоящий
Power over Ethernet (PoE)
Питание по Ethernet (PoE)cross
Характеристики
Обновляемое встроенное ПОcheckmark
Пакетная буферная память0,32 МБ
Поддержка VLANcheckmark
Поддержка многоадресной передачиcheckmark
EAN4718937566525
Гарантия5 года
Source: Icecat.biz

The ZyXEL MES3500-24/MES3500-24F has been specially designed for service providers to deliver profitable Ethernet services. With the high-performance hardware platform, service providers can easily extend network topologies while enabling robust security, QoS and management functions to help customers fulfilling different needs and to support the IPv6 for trouble-free future network expansions.
Telco-class Layer 2 Fast Ethernet Switch with Access Control List (ACL)
Advanced QoS for significant services
Consistent service quality and reliable connecting ability in a converged network is the key for Carrier to connect and satisfy customers; therefore the ability to control traffic flow and set traffic policy becomes more critical than ever. The ZyXEL MES3500-24/MES3500-24F 24-port FE L2 Switch offers wire-speed flow control that classifies and prioritizes the incoming packets according to the predefine QoS policies that meet requirements of service providers.
In terms of classification, the Differentiated Services Code Point (DSCP) field and the 802.1p Class of Service (CoS) field are identified to assess the priority of incoming packets. Classification and reclassification can be based on criteria as specific as rules based on IP, MAC addresses, VLAN ID or TCP/UDP port number. For bandwidth management, the MES3500-24/MES3500-24F provides 8 priority queues per port for different types of traffics, allowing service providers to set policy-based rate limitations that take full advantage of constrained network resources and guarantee the best performance.
Enhanced security for protection among customers
Avoiding subscribers affecting each other on a shared network or shared device is a major concern for service providers. The ZyXEL MES3500-24/MES3500-24F offers a complete set of security features to protect user data while administrating the traffics. Port security provides the ability to deny unauthorized users from accessing the network. Moreover, the 802.1X feature cooperating with RADIUS is useful to prevent unauthorized access based on username and password (or other credentials) and acts as powerful access control for converged networks with mixed wired and wireless access.
The MES3500-24/MES3500-24F provides a multilayer (L2/L3/L4) ACL suite of sophisticated policy-based control mechanisms that enables service providers to deploy easily based on actual network environment needs via a Web GUI or command line interface to prevent abnormal or illegal access. The policies can be defined to deny packets based on source and destination MAC addresses, IP addresses or TCP/UDP ports.
Resilient and redundant design
A quick recovery and round-the-clock network is vital for service providers to establish a robust network. The MES3500-24/MES3500-24F provides comprehensive features to make sure network is well operated. The IEEE 802.3ad Link Aggregation feature reduces network downtime by providing redundant paths and bandwidth aggregation to critical connections, while IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) and IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) allow immediate recovery from failed connections by sending packets via the backup link.
Digital Diagnostics Monitoring Interface (DDMI) SFP support
The enhanced digital interface allows real-time access to the device operating parameters, and it includes optional digital features such as soft control and monitoring of SFP I/O signals. In addition, the MES3500-24/MES3500-24F fully incorporates the functionality needed to implement digital alarms and warnings from fault isolation and failure prediction tasks as well as component monitoring features, among others.
With the digital diagnostic monitoring interface, the MES3500-24/MES3500-24F enables users to easily detect packet loss from transceivers and aging cables; therefore users can not only avoid troubles such as unstable networking services, but also boost productivity significantly.
Rich IPv6 features built-in for future-proof network expansions
As ZyXEL considers IPv6 management features as a future trend, complete IPv6 host management capabilities are added to the MES3500-24/MES3500-24F for guaranteed IPv6/4 migration and future-proof expansion. It’s not only beneficial for high-density Fast Ethernet deployments, but also capable of preventing investment loss and therefore perfectly suitable for both network cores and edges.
