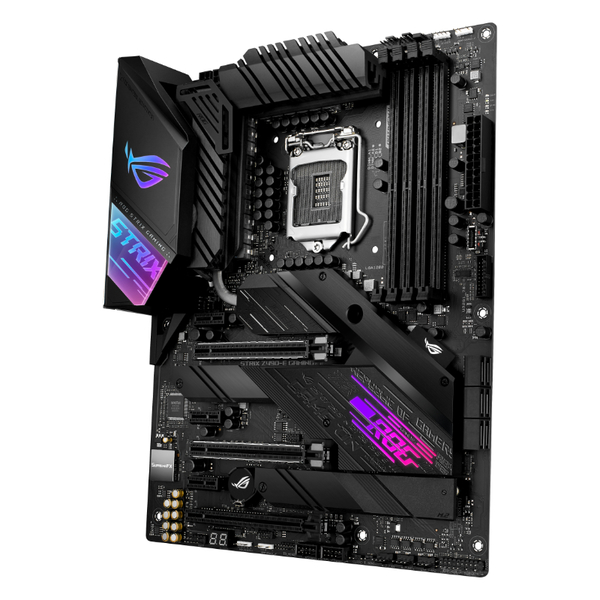

Asus ROG Strix Z490-E Gaming ATX - motherboard

Производитель: ASUS
ID: 90MB12P0-M0EAY0
Товар не доступен
Данный товар более не продается или в настоящий момент не может быть приобретен.
Характеристики
Описание
Наличие в магазинах
Доставка
Динамика цен
Процессор
Производитель процессораIntel
Совместимые серии процессоров10th Gen Intel Core
Сокет процессораLGA 1200
Память
Слоты памяти4
Максимальная внутренняя память128 GB
без функции коррекции ошибокcheckmark
Поддерживаемые частоты памяти4600+ (OC)
Поддерживаемые типы памятиDDR4
Каналы памятиDual-channel
Небуферизованная памятьcheckmark
Тип слотов памятиDIMM
Количество слотов памяти4
Вес и размеры
Ширина305 mm
Глубина244 mm
Сеть
Wi-Fi стандартов802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Беспроводная технология802.11 a/b/g/n/ac/ax
Версия Bluetooth5.1
Подключение Ethernetcheckmark
Bluetoothcheckmark
Контроллер LANIntel I225V
Скорость Wi-Fi (макс)2400 Мбит/с
Wi-Ficheckmark
Скорость передачи данных Ethernet LAN2.5Gb
Тип Ethernet интерфейса2.5 Gigabit Ethernet
Внутренние порты
Число коннекторов SATA6
Разъемы USB 2.04
Разъем вентилятора центрального процессораcheckmark
Разъем питания ATX (24-конт.)checkmark
Количество разъемов питания EATX1
Количество разъемов вентилятора корпуса2
EPS разъем питания (8-конт)checkmark
Разъемы USB 3.2 Gen 1 (3.1 Gen 1)1
Количество разъемов SATA III6
Количество M.2 (M) слотов2
разъемы Thunderbolt1
Разъемы USB 3.1 (Gen 2)1
Порты на задней панели
Выход аудиоДа
Количество портов USB 2.08
Количество портов Ethernet LAN ( RJ-45)1
Линейные выходы наушников1
Линейный вход микрофонаcheckmark
Порт выхода S/PDIFcheckmark
Количество HDMI портов1
Версия HDMI1.4b
Количество портов DisplayPort1
Версия DisplayPort1.4
Количество портов USB 3.0 (3.1 Gen 1) Type-A2
Количество портов USB 3.1 (3.1 Gen 2) Type-A3
Количество портов USB 3.2 Gen 2 (3.1 Gen 2) Type-С1
Контроллеры хранения данных
Уровни RAID0, 1, 5, 10
Поддерживаемые типы накопителейHDD & SSD
Поддерживаемые интерфейсы носителяM.2, SATA III
Содержимое упаковки
Поставляемые кабелиSATA
Слоты расширения
Слоты PCI Express x4 (поколение 2.x)1
Слоты PCI Express x1 (поколение 3.x)3
Слоты PCI Express x16 (поколение 3.x)2
BIOS
Размер памяти BIOS192 Mbit
Тип BIOSUEFI AMI
Перемычка Clear CMOScheckmark
Графический адаптер
Максимальное разрешение4096 x 2304 пикселей
Поддержка технологии параллельной обработкиSLI
Свойства
Чипсет материнской платыIntel Z490
Формат материнской платыATX
Выходные звуковые каналы8.0 канала
Параметры разгонаAI Overclocking
Поддерживаемые операционные системы WindowsWindows 10 x64
Семейство чипсета материнской платыIntel
Комплектующие дляПК
Аудио чипSupremeFX S1220A
EAN4718017671620
Гарантия3 лет

ROG Strix Z490-E Gaming

  • Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
  • Optimal Power Solution: 14+2 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
  • Optimized Thermal Design: MOS Heatsink with U-shaped heatpipe, extended VRM heatsink, dual onboard M.2 heatsinks, including a bundled fan bracket and additional MOS fan for improved cooling
  • High-performance Networking: On-board Intel® WiFi 6 AX201 (802.11 ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
  • Best Gaming Connectivity: Supports HDMI 1.4 and DisplayPort 1.4 output, and featuring dual M.2 and USB 3.2 Gen 2 Type-A and Type-C® connectors
  • Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling and AI Networking, helping you configure your gaming build easily
  • DIY Friendly Design: Pre-mounted I/O shield, BIOS Flashback, Q-Code and FlexKey
  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers
  • Industry-leading Gaming Audio: High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action
Power Delivery Enhancements

Digital power control and an array of power stages ensure Strix Z490-E Gaming has the muscle to control the latest Intel CPUs.

  1. The ProCool II socket is built to tight specifications to ensure flush contact with the PSU power lines and have a metal armour for improved heat dissipation. The connector's lower impedance helps prevent hotspots and improves reliability.
  2. ROG Strix Z490-E Gaming utilizes 14+2 DrMOS power stages to combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest Intel processors demand.
  3. Superior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard.
Cooling Innovation
  1. Fan Bracket and MOS Fan: A bundled fan bracket and additional MOS fan provide additional cooling to areas around the VRM as you push your build to its limits.
  2. MOS Heatsink with U-shaped Heatpipe: The U-shaped design allows rapid and even heat transfer from the VRM to the extended MOS heatsink for better performance and wattage resistance. In addition, the MOS heatsink provides a large contact area for MOSFETs and chokes.
  3. Extended VRM heatsink: The extended heatsink at the end of heatpipe increases thermal mass to offset the additional heat generated by high voltage, lowering temperatures by up to 5°C.
  4. Dual M.2 Heatsinks: The M.2 heatsinks keep the M.2 SSD at the optimum operating temperature for consistent performance and reliability.
Cooler By Design

ROG Strix Z490 series features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS

  • Multiple Temperature Sources: Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling. And all settings can be easily managed by Fan Xpert 4 or UEFI.
  • 4-pin PWM/DC Fan Header: Every onboard header supports auto-detection of PWM or DC fans.
  • AIO Pump Fan Header: A dedicated PWM/DC header for self-contained water-cooling setups.
  • Water Pump Header: A dedicated header that can supply over 3A to high-performance PWM or DC water pumps.
Intelligent Control

Our ROG engineers developed and extensively-tested intelligent software solutions to ensure your system stays in optimal condition.

  • AI Overclocking: Tuning is now faster and smarter than ever before. AI Overclocking profiles the CPU and cooling to predict the optimal configuration for each system.
  • AI Cooling: AI Cooling automatically manages and controls motherboard connected fans, ensuring the most efficient settings depending on the current system load and temperature.
  • AI Networking: GameFirst VI optimizes and organizes network bandwidth, effectively reducing jitter and eliminating spike lag to ensure smooth online gameplay.
Dual PCIe 3.0 M.2

Two M.2 slots are available, with one supporting both SATA and PCIe 3.0 x4 modes, and the other supporting PCIe 3.0 x4 for NVMe. Together, they give you the fastest and most-flexible M.2 interface available.

Next-gen Connectivity
  1. WiFi 6 (802.11 ax): Onboard WiFi 6 (802.11ax) supports ultrafast wireless-networking speeds, improved capacity and better performance in dense wireless environments, providing exceptional online gaming experiences. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.
  2. Intel 2.5G Ethernet: Onboard 2.5G Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming.
Sonic Studio III

Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

Sonic Studio Link

The new Sonic Studio Link now allows you to apply Sonic Studio effects on all playback devices. Simply press the Sonic Studio Link button to enjoy the effect on any playback devices.

Sonic Studio Virtual Mixer

A virtual audio device that lets streamers combine sound output and output from different apps. This allows you to mix your voice and video game audio within streaming software. A variety of adjustment and monitoring tools provide a high level of digital control.

Undeniably ROG Strix

ROG Strix Z490-E Gaming is unmistakably ROG, it features a mirror-like stainless steel finish, complete with diagonal lines across the I/O shield and futuristic cyber-text.

DIY Friendly
  • Pre-mounted I/O shield: ROG’s patented I/O shield is finished in sleek matte black and comes pre-mounted to make it easy to install the motherboard.
  • Q-Code: Diagnostic codes provide a reference for fast and easy look up of common installation and component problems.
  • FlexKey: The front-panel header lets you customize the reset button on the front-panel of your chassis to provide quick access to your choice of Aura lighting controls, DirectKey or system reset.
  • BIOS Flashback™: BIOS Flashback™ is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS Flashback port and press the button. Updates can even be performed without having memory or a CPU installed.
