Коротко о товаре
Найдите похожие товары выбрав одну или несколько ключевых особенностей товара.Процессор | |
Производитель процессора | Intel |
Совместимые серии процессоров | Процессор Intel® Celeron®, Процессор Intel® Pentium® |
Сокет процессора | LGA 1151 |
Память | |
Максимальная внутренняя память | 64 GB |
Error-correcting code (ECC) | |
без функции коррекции ошибок | |
Поддерживаемые частоты памяти | 2133,2400,2666,2800,3000,3200,3300,3333,3400,3466,3600,3666,3733,3866 МГц |
Поддерживаемые типы памяти | DDR4 |
Каналы памяти | Dual |
Тип слотов памяти | DIMM |
Количество слотов памяти | 4 |
Вес и размеры | |
Ширина | 305 mm |
Глубина | 264 mm |
Энергопитание | |
Тип источника питания | ATX |
Сеть | |
Подключение Ethernet | |
Тип Ethernet интерфейса | Гигабитный Ethernet |
Внутренние порты | |
Число коннекторов SATA | 11 |
Разъемы USB 2.0 | 2 |
Разъем выхода S/PDIF | |
Разъем вентилятора центрального процессора | |
Разъем питания ATX (24-конт.) | |
Аудиоразъем передней панели | |
TPM коннектор | |
Периферийные (Molex) разъемы питания (4-конт) | 1 |
EPS разъем питания (8-конт) | |
Разъемы USB 3.2 Gen 1 (3.1 Gen 1) | 2 |
Коннекторы последовательного порта | 1 |
Поддерживаемые интерфейсы носителя | Serial ATA |
Количество разъёмов SATA Express | 3 |

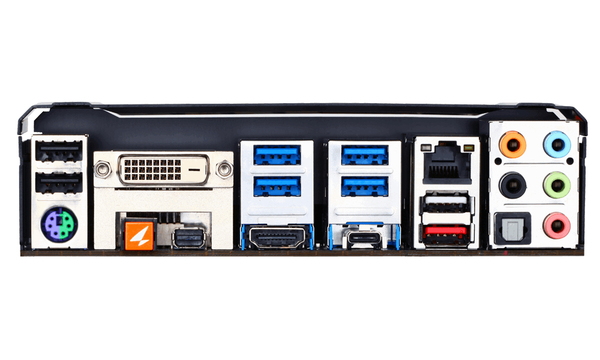

Порты на задней панели | |
Количество портов PS/2 | 1 |
Количество портов USB 2.0 | 2 |
Количество портов Ethernet LAN ( RJ-45) | 1 |
Линейный вход микрофона | |
Порт выхода S/PDIF | |
Количество портов DVI-D | 1 |
Количество HDMI портов | 1 |
Версия HDMI | 1.4 |
Количество мini DisplayPort портов | 1 |
Количество портов USB 3.2 Gen 1 (3.1 Gen 1) Type-A | 5 |
Количество портов USB 3.2 Gen 2 (3.1 Gen 2) Type-A | 1 |
Количество портов USB 3.2 Gen 2 (3.1 Gen 2) Type-С | 1 |
Контроллеры хранения данных | |
Уровни RAID | 0, 1, 5, 10 |
Содержимое упаковки | |
Поставляемое ПО | Norton® Internet Security (OEM version), Intel® Smart Response Technology, cFosSpeed |
Поставляемые кабели | SATA |
Краткое руководство по установке | |
Драйвера в комплекте | |
Слоты расширения | |
Слоты PCI Express x8 (поколение 2.x) | 1 |
Слоты PCI Express x8 (поколение 1.x) | 1 |
Слоты PCI Express x1 (поколение 3.x) | 3 |
Слоты PCI Express x16 (поколение 1.x) | 1 |
Слоты PCI Express x16 (поколение 2.x) | 1 |
BIOS | |
Размер памяти BIOS | 256 Mbit |
Тип BIOS | UEFI AMI |
Версия ACPI | 5.0 |
Кнопка сброса CMOS | |
Перемычка Clear CMOS | |
Кнопка переключения BIOS | |
Прочие свойства | |
Другие особенности | 3D OSD, @BIOS, Ambient LED, AutoGreen, Cloud Station, EasyTune, Easy RAID, Fast Boot, Smart TimeLock, Smart Keyboard, Smart Backup, System Information Viewer, USB Blocker, Q-Flash, Smart Switch, Xpress Install, GIGABYTE HW OC |
Графический адаптер | |
Объём памяти графического адаптера | 512 MB |
Максимальное разрешение | 4096 x 2160 пикселей |
Поддержка технологии параллельной обработки | SLI |
Семейство графического адаптера | AMD,Intel,NVIDIA |
Поддержка выделеной видео карты | |
Количество поддерживаемых дисплеев | 3 |
Свойства | |
Чипсет материнской платы | Intel Z170 |
Формат материнской платы | Расширенный ATX |
Выходные звуковые каналы | 7.1 канала |
Поддерживаемые операционные системы Windows | Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8.1 Enterprise x64,Windows 8.1 Pro x64,Windows 8.1 x64 |
Семейство чипсета материнской платы | Intel |
Комплектующие для | ПК |
Материнская плата | |
Формат материнской платы | ATX |
EAN | 889523002490 |
Гарантия | 1 год |
- Supports 6th Generation Intel® Core™ Processor
- Dual Channel DDR4, 4 DIMMs
- 22 phases digital power delivery design
- Exclusive OC Touch with Metal shielding design
- Exclusive Ultra Durable Metal Shielding over the PCIe Slot
- Built-in advanced performance tuning IC
- Intel® USB 3.1 with USB Type-C™ - The World's Next Universal Connector
- Extreme 4-Way Graphics Support with OC Brace
- 3 SATA Express Connectors for up to 16Gb/s Data Transfer
- 3 PCIe Gen3 x4 M.2 Connectors with up to 32Gb/s Data Transfer
- 115dB HD audio with build-in rear audio amplifier
- Intel® GbE LAN with cFosSpeed Internet Accelerator Software
- LED Trace Path with Multi-Color Choice
- Water Cooling Ready Heat sink Design with G1/4 Threaded Fittings
- GIGABYTE UEFI DualBIOS™ with Q-Flash Plus USB port
The Intel® USB 3.1 controller utilizes 2 PCIe Gen3 lanes, offering a total of up to 16Gb/s, which means you have extra bandwidth to take full control of the 10Gb/s USB 3.1 ports. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C™ and the traditional USB Standard-A connector for better compatibility over a wider range of devices.
The World's Next Universal Connector
Reversible USB Type-C™ with USB 3.1
The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.1 support for 10Gb/s transfer speed. Powered by the Intel® USB 3.1 controller, this little port provides the best USB Type-C™ experience possible.
Triple PCIe Gen3 x4 M.2 Connectors
With three PCIe Gen3 x4 M.2 connectors onboard, GIGABYTE brings to the user PCI-Express connectivity for SSD devices. Delivering up to 32 Gb/s data transfer speed per connector, the triple M.2 provides an ideal storage solution as it also supports RAID modes.
Exclusive OC Touch with Metal Shielding Design
GIGABYTE OC Touch includes a range of hardware overclocking buttons directly on the motherboard, making overclocking on the fly extremely fast and easy.
OC Ignition
OC Ignition maintains power to the motherboard and connected components while the system is shut down. This means that system fans will continue to provide airflow in cold bug situations, while i-RAM drive users will not lose installed data. OC Ignition also allows users to pre-test water cooling setups, and allows case mod demonstrations without having to turn on the PC.
OC PCIe Switch
Overclockers can manually turn on or off each installed PCIe lane of the motherboard, allowing users to disable individual graphics cards without physically removing them. This is especially useful when overclocking on LN2 and water cooled systems.
115dB High Definition Audio Design
The Realtek ALC1150 is a high-performance multi-channel high definition audio codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.
High Quality audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.
Ambient LED
LED lighting for the audio guard path provides a cool, custom look to your rig. Not only does the Audio Noise Guard protect the board's sensitive analog audio components, but its LEDs can also be programed to beat at the rhythm of the music you are listening to, or pulse at a soothing pace to create a great atmosphere to enhance the environment of your game, movie or music.
Turbo B-Clock
Built-in Advanced Performance Tuning IC
Thanks to the onboard TURBO B-Clock Tuning IC, GIGABYTE Motherboards enable Overclockers to have the ability to change their BCLK Frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 90MHz to 500MHz are now possible, so that overclockers are not limited to the 5% ranges of traditional straps.
22 Phases Digital Power Delivery Design
For its 100 series motherboards, GIGABYTE features a 22 phase power delivery design equipped with 4th gen. IR® digital power controllers and 3rd gen. PowIRstage® ICs featuring Isense technology, which provides more precise current sensing accuracy. This helps evenly distribute the thermal loading between the PowerIRstage® ICs, preventing the overheating of each individual PowerIRstage®, resulting in longer lifespan and better reliability.
