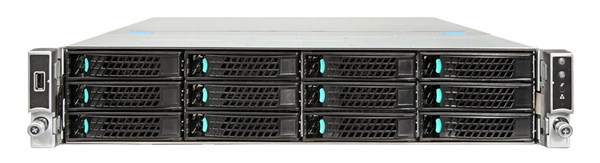

Intel Server System R2312WTTYSR - Palvelin - telineasennettava - 2U - 2-teinen - RAM 0 Gt - SAS - pikavaihto 2.5", 3.5" - ei kiintolevyä - GigE, 10 GigE - monit
Processor | |
Moderkortets chipset | Intel C612 |
Kompatibla processorer | Intel® Xeon® |
Processorfamilj | Intel |
Processorsockel | LGA 2011 |
Intel® Xeon-serien | E5-2600 |
Antal processorer som stöds | 2 |
Högsta internminne som stöds av processorn | 1536 GB |
Minne | |
Maximalt internminne | 1536 GB |
Antalet DIMM-platser | 24 |
Minnestyper som stöds | DDR4 |
Stöd för RDIMM klockfrekvenser | 1600,1866,2133 MHz |
Maximalt RDIMM minne | 1536 GB |
Anslutningar | |
Seriella portar | 2 |
Antal USB 2.0 anslutningar | 1 |
Antal LAN (RJ-45) anslutningar | 2 |
Kvalitet på VGA (D-Sub) porten | 1 |
Antalet Seriella ATA anslutningar | 10 |
InfiniBand | |
Antal USB-portar | 5 |
Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar | 5 |
Vikt & dimension | |
Höjd | 89 mm |
Bredd | 439 mm |
Djup | 712 mm |
Strömtillförsel | |
Nätaggregatstyp | AC |
Antal strömförsörjningsaggregat | 1 |
Strömförsörjning | 1100 W |
Stöd för redundant strömförsörjning (RPS) | |
Nätverk | |
Nätverksansluten (Ethernet) | |
Datahastighet för Ethernet-LAN | 10,100,1000,10000 Mbit/s |
Typ av ethernet-gränssnitt | 10 Gigabit Ethernet, Snabb Ethernet, Gigabit Ethernet |
Lagringsmedia | |
Hårddisk hot swap | |
RAID-nivåer | 0, 1, 10 |
Antal 3,5 "vikar | 12 |
Antal lagringsenheter som stöds | 12 |
Storlekar som stöds på lagringsenhet | 2.5,3.5" |
Embedded USB (eUSB) SSD alternativet | |
Lagringsenhetsgränssnitt som stöds | Serial Attached SCSI (SAS), SATA |
Förpackning | |
Medföljande programvara | Intel Server Management Software |
Förpackningarnas innehåll | (1) Intel Server Board S2600WTTR; (1) airduct; (1) control panel on rack handle (A2UHANDLKIT); (12) 3.5 inch hot-swap drive carrier (FXX35HSCAR); (1) backplane (F2U12X35S3HSBP); (1) cable (AXXCBL800HDHD); (1) cable (AXXCBL875HDHD); (1) cable (AXXCBL950HDHD); (2) heatsinks (FXXCA84X106HS); (6) redundant and hot-swap cooling fans; (2) risers with 3 x8 PCIe* 3.0 slots on each (2x FHFL 1x FHHL) (A2UL8RISER2); (1) rear-accessible dual 2.5 inch hot-swap drive cage (A2UREARHSDK); (1) battery backup unit bracket with three mounting locations over the airduct; (1) 1100W AC power supply (FXX1100PCRPS) |
Expansionsplatser | |
PCI Express x8 kortplatser | 6 |
PCI Express x4 platser | 1 |
PCI Express-kortplatser version | 3.0 |
PCI Express x8 (Gen 3.x)-kortplatser | 6 |
Övriga egenskaper | |
Ombord grafikkort | |
CPU konfiguration (max) | 2 |
Produkttyp | System |
Status | Launched |
Chassimått | 430 x 709,9 x 87,4 mm (16.9 x 27.9 x 3.44") |
Lanseringsdatum | Q1'16 |
Redundanta fläktar | Y |
Stöd för 3,5 tums hårddisk | Hot-swap 3.5" HDD or 2.5" SSD |
Stöd för Firewire | |
Stöd för optisk disk | |
RAID-konfiguration som stöds | SW RAID 0, 1, 10, optional 5 |
Senaste ändring | 63903513 |
Kort som stöds | Intel Server Board S2600WTTR |
Produktfamilj | 2U-serversystem |
Produktserie | Intel R2000WT |
Produktens kodnamn | Wildcat Pass |
Förväntat upphörandedatum | Q3'20 |
Målmarknad | Cloud/Datacenter |
URL för ytterligare information | http://www.intel.com/content/www/us/en/motherboards/server-motherboards/server-board-s2600wt.html |
Förlängd garanti finns att köpa (i utvalda länder) | |
Design | |
Chassityp | Rack (2U) |
Produktens färg | Svart, Metallisk |
Rack-Friendly styrelse | |
Kylfläns | 2 |
Kylfläns ingår | |
Kuggskenor | |
Processor specialfunktioner | |
Intelligent Platform Management Interface (IPMI) stöd | |
Intel® Snabb Memory Access | |
Intel® Flex minnesåtkomst | |
Intel® Virtualization Technology (Intel® VT) | VT-d |
Intel® I / O-acceleration teknik | |
Intel® Advanced Management Technology | |
Intel® Intel®ligent Power Node Manager | |
Intel® Matrix Storage Technology (Intel® MST) | |
Intel® Tyst System Technology (QST) | |
Intel® On-Demand Redundant ström Teknik | |
Intel® Rapid Storage Technology | |
Programvara för Intel® Server Management | |
Stöd för Intel® Remote Management Module | Y |
Intel® Server Anpassning Teknik | |
Intel® Build Assurance Technology | |
Intel® Tyst Thermal Technology | |
Intel® Effektiv Power Technology | |
Intel® Rapid Storage Technology för företag | |
Intern I / O- expansionsmodul x8 Gen 3 | 1 |
Intel® Virtualization Technology for Directed I/O (VT-d) | |
Kontakt till Intel I/O expansionsmodul x8 Gen 3 | 1 |
Egenskaper | |
Optisk enhetstyp | Y |
Trusted Platform Module (TPM) | |
Trusted Platform Module (TPM)-version | 1.2 |
Marknadssegment | Server |
ARK ID | 88286 |
EAN | 5032037076036 |
Garanti | 1 år |
Source: Icecat.biz |
Integrated 2U system featuring an Intel® Server Board S2600WTTR supporting 12 3.5 inch hot-swap drives dual 10-GbE LAN 24 DIMMs one 1100W redundant-capable power supply enterprise class I/O with built in discrete management network interface.
The Intel® Remote Management Module (Intel® RMM) allows you to securely gain access and control servers and other devices from any machine on the network. Remote access includes remote management capability, including power control, KVM, and media redirection, with a dedicated management network interface card (NIC).
IPMI (Intelligent Platform Management Interface) is a standardized interface used for out-of-band management of computer systems. The integrated BMC (Baseboard Management Controller) is a specialized microcontroller that enables IPMI.
Intel® Advanced Management Technology features an isolated, independent, secure, and highly reliable network connection, with an Integrated Baseboard Management Controller (Integrated BMC) configuration from within BIOS. Also includes an embedded web user interface that launches key platform diagnostic capabilities over the network, an out-of-band (OOB) platform inventory, failsafe firmware updates, and an automatic Integrated BMC stall detection and reset.
Intel® Server Customization techology enables Resellers and System Builders to offer end customers a customized branded experience, SKU configuration flexibility, flexible boot options, and maximum I/O options.
Intel® Build Assurance technology provides advanced diagnostic features ensuring the most comprehensively tested, most thoroughly debugged, and most stable systems possible are shipped to customers.
Intel® Quiet Thermal Technology is a series of thermal and acoustic management innovations that reduce unnecessary acoustic noise and provide cooling flexibility while maximizing efficiency . The technology includes capabilities such as advanced thermal sensory arrays, advanced cooling algorithms, and built in fail-safe shutdown protection.
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
Intel® Matrix Storage Technology provides protection, performance, and expandability for desktop and mobile platforms. Whether using one or multiple hard drives, users can take advantage of enhanced performance and lower power consumption. When using more than one drive the user can have additional protection against data loss in the event of hard drive failure. Predecessor to Intel® Rapid Storage Technology
