Ingen prisutvecklingsinformation för denna produkt.
Produkten är inte tillgänglig
Produkten har utgått från sortimentet eller är inte tillgänglig för tillfället.
Produkten har utgått från sortimentet eller är inte tillgänglig för tillfället.
Produktspecifikation
Välj en eller flera funktioner för att söka efter produkter med samma specifikationer.
Produktspecifikation
Beskrivning
På lager i butiker
Leverans
Prisutveckling
| Processor | |
| Kompatibla processorer | Ryzen,AMD A,Athlon |
| Processorfamilj | AMD |
| Processorsockel | AM4 |
| Minne | |
| Maximalt internminne | 64 GB |
| Icke ECC |  |
| Minnets hastigheter | 2133,2400,2666,2933,3200 MHz |
| Minnestyper som stöds | DDR4 |
| Minneskanaler | Dual |
| Obuffrat minne | |
| Minnesplatser, typ | DIMM |
| Antal minnesplatser | 4 |
| Vikt & dimension | |
| Bredd | 244 mm |
| Djup | 244 mm |
| Nätverk | |
| Nätverksansluten (Ethernet) | |
| LAN-styrenhet | Realtek RTL8111H |
| Typ av ethernet-gränssnitt | Gigabit Ethernet |
| Intern I/O | |
| USB 2.0 anslutning | 2 |
| CPU-fläktsanslutning | |
| Antalet COM-anslutningar | 1 |
| ATX strömkontakt (24-pin) | |
| Antalet EATX-strömanslutningar | 1 |
| Antal anslutningar för fläktar | 1 |
| Ljudanslutning på framsidan | |
| USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar | 1 |
| Antal SATA III kontakter | 6 |
| Antal M.2 (M)-platser | 1 |
| Anslutningsmöjligheter | |
| Antal PS/2-portar | 2 |
| Antal LAN (RJ-45) anslutningar | 1 |
| Hörlursutgångar | 1 |
| Uttag för mikrofon/linje in | |
| Kvalitet på VGA (D-Sub) porten | 1 |
| Antal DVI-D anslutningar | 1 |
| Antal HDMI-portar | 1 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar | 4 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar | 2 |
| BIOS | |
| BIOS minnesstorlek | 16 MB |
| BIOS-typ | UEFI AMI |
| ACPI-version | 6,1 |
| Klar CMOS-bygel | |
| Prestanda | |
| Moderkortets chipset | AMD B350 |
| Ljudsystem | Realtek ALC887 |
| Moderkort formfaktor | Micro ATX |
| Ljudutgångskanaler | 7.1 kanaler |
| Windows-operativsystem som stöds | Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64 |
| Moderkort, chipsetfamilj | AMD |
| Komponent för | PC |
| Egenskaper | |
| Moderkortets chipset | AMD B350 |
| Moderkort | |
| Moderkort formfaktor | Micro ATX |
| EAN | 4712900673586 |

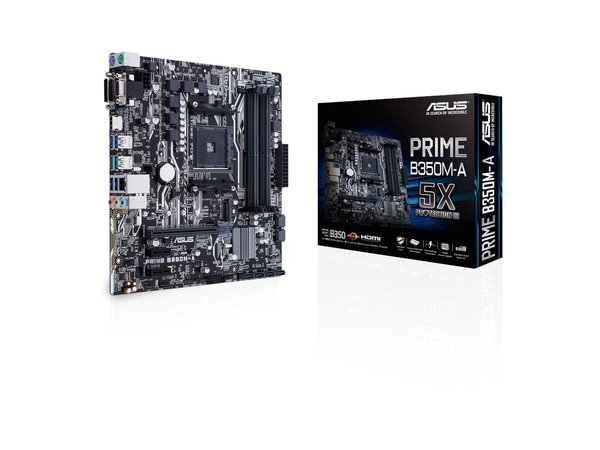

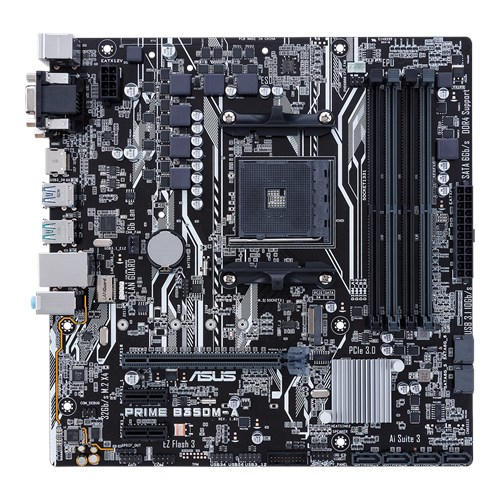

Model Prime B350M-A/CSM
Supported CPU AM4
CPU TypeRyzen / Athlon / A-Series
Chipset AMD B350
Number of Memory Slots 4×288pin
Memory Standard
Ryzen Processors, DDR4 2666/ 2400/ 2133
7th Generation A-series/Athlon Processors, DDR4 2400/ 2133
Maximum Memory Supported 64GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16
Ryzen Processors
1 x PCI Express 3.0/2.0 x16 slot (max.@x16 mode)
7th Generation A-series/Athlon Processors
1 x PCI Express 3.0/2.0 x16 slot (max.@x8 mode)
PCI Express x1
2 x PCI Express 2.0 x1 slots
Storage Devices
SATA 6Gb/s
6 x SATA 6Gb/s
M.2
Ryzen Processors
- 1 x M.2 socket 3 with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support*
* When a SATA / PCIE mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports
7th Generation A-series/Athlon Processors
- 1 x M.2 socket 3 with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x2 and SATA modes) storage devices support*
* When a SATA mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports
SATA RAID 0/1/10
Onboard Video Chipset
Integrated AMD Radeon R Series Graphics in the 7th Generation A-Series APU
Multi-VGA output support: HDMI, DVI-D, D-Sub port
- Supports HDMI 1.4b with max. resolution 4096 x 2160@24Hz / 2560 x 1600@60Hz
- Supports DVI-D with max. resolution up to 1920 x 1200 @60Hz
- Supports D-Sub with max. resolution up to 1920 x 1200 @60Hz
- Maximum shared memory of 2048MB
Audio Chipset Realtek ALC887-VD2
Audio 8 Channels
LAN Chipset Realtek 8111H

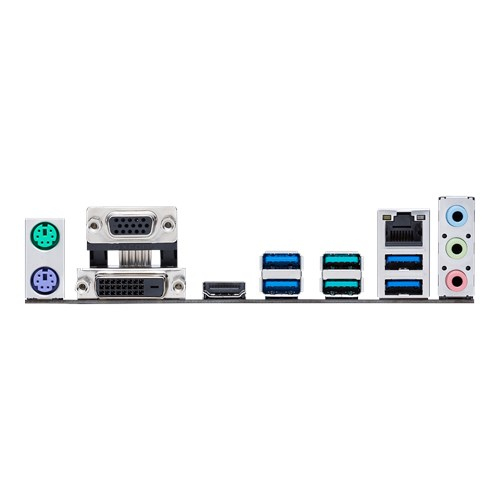

Rear Panel Ports
PS/2
1 x PS/2 keyboard (purple)
1 x PS/2 mouse port (green)
Video Ports
1 x DVI-D port
1 x D-Sub port
1 x HDMI
1 x RJ45
2 x USB 3.1
4 x USB 3.0
Audio Ports
3 x Audio jacks support 8-channel audio output
Internal I/O Connectors
Onboard USB
1 x USB 3.0 connector supports additional 2 USB 3.0 ports
2 x USB 2.0/1.1 connectors support additional 4 USB 2.0/1.1 ports
Other Connectors
1 x COM connector
1 x CPU Fan connector
1 x Fan RGB header
1 x Chassis Fan connector (Support DC & PWM mode)
1 x Front panel audio connector
1 x 24-pin EATX Power connector
1 x 8-pin ATX 12V Power connector
1 x 2-pin Clear CMOS
1 x System Panel connector
1 x Speaker connector
1 x S/PDIF out header
Physical Spec
Form Factor
uATX
Supported CPU AM4
CPU TypeRyzen / Athlon / A-Series
Chipset AMD B350
Number of Memory Slots 4×288pin
Memory Standard
Ryzen Processors, DDR4 2666/ 2400/ 2133
7th Generation A-series/Athlon Processors, DDR4 2400/ 2133
Maximum Memory Supported 64GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16
Ryzen Processors
1 x PCI Express 3.0/2.0 x16 slot (max.@x16 mode)
7th Generation A-series/Athlon Processors
1 x PCI Express 3.0/2.0 x16 slot (max.@x8 mode)
PCI Express x1
2 x PCI Express 2.0 x1 slots
Storage Devices
SATA 6Gb/s
6 x SATA 6Gb/s
M.2
Ryzen Processors
- 1 x M.2 socket 3 with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support*
* When a SATA / PCIE mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports
7th Generation A-series/Athlon Processors
- 1 x M.2 socket 3 with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x2 and SATA modes) storage devices support*
* When a SATA mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports
SATA RAID 0/1/10
Onboard Video Chipset
Integrated AMD Radeon R Series Graphics in the 7th Generation A-Series APU
Multi-VGA output support: HDMI, DVI-D, D-Sub port
- Supports HDMI 1.4b with max. resolution 4096 x 2160@24Hz / 2560 x 1600@60Hz
- Supports DVI-D with max. resolution up to 1920 x 1200 @60Hz
- Supports D-Sub with max. resolution up to 1920 x 1200 @60Hz
- Maximum shared memory of 2048MB
Audio Chipset Realtek ALC887-VD2
Audio 8 Channels
LAN Chipset Realtek 8111H
Rear Panel Ports
PS/2
1 x PS/2 keyboard (purple)
1 x PS/2 mouse port (green)
Video Ports
1 x DVI-D port
1 x D-Sub port
1 x HDMI
1 x RJ45
2 x USB 3.1
4 x USB 3.0
Audio Ports
3 x Audio jacks support 8-channel audio output
Internal I/O Connectors
Onboard USB
1 x USB 3.0 connector supports additional 2 USB 3.0 ports
2 x USB 2.0/1.1 connectors support additional 4 USB 2.0/1.1 ports
Other Connectors
1 x COM connector
1 x CPU Fan connector
1 x Fan RGB header
1 x Chassis Fan connector (Support DC & PWM mode)
1 x Front panel audio connector
1 x 24-pin EATX Power connector
1 x 8-pin ATX 12V Power connector
1 x 2-pin Clear CMOS
1 x System Panel connector
1 x Speaker connector
1 x S/PDIF out header
Physical Spec
Form Factor
uATX
