12-24Vdc/24Vac, thermal cam

VIDEOTEC
MVXT2D0SA000AH
15642,90 € Visa Moms 0% Visa Moms 24%
Webblager: Obekräftad Uppskattad leveranstid: Obekräftad
Produktspecifikation
Beskrivning
Tillgänglig / Leverans
Prisutveckling
Audio
Signal/brusförhållande (SNR)50 dB
Anslutningar
GränssnittRJ-45
AnslutningsteknologiKabel
Antalet Ethernet (RJ-45) anslutningar1
Linssystem
Digital zoom120x
Optiska zoom10X
Zoomkapacitetcheckmark
FokusManuell
Brännvidd1,8 - 3,4 mm
Justering av fokus1,8 - 3,4
Fast brännvidd3,8 cm
Vikt & dimension
Bredd51 mm
Diameter4,1 cm
Strömtillförsel
AC adapter maxbelastning2.2 A
Likströmsingångcheckmark
DC-utgång ampere3,5 A
Strömkälla typAC, DC
Växelström Frekvens50 - 60 hz
Miljökrav
Intervall för relativ operativ luftfuktighet10 - 95%
Temperaturintervall (förvaring)-50 - 65 ° C
Temperatur vid drift-40 - 65 ° C
Fuktighet (förvaring)10 - 95%
Nätverk
Kabelteknik10/100Base-T(X)
Nätverksansluten (Ethernet)checkmark
Bluetoothcross
Wi-Ficross
Ethernet-gränssnitt typSnabb Ethernet
StrömningsmetodMulticast
Grafikstyrenhet
Maximal upplösning1920 x 1080 pixlar
KomprimeringsformatAVC,H.264,M-JPEG
Full HDcheckmark
Bildfrekvens60 fps
Grafikbussar resolutioner1920 x 1080 (HD 1080)
Videolägen som stöds1080p
Videoformat som stödsAVC,H.264
Automatisk förstärkningskontrollcheckmark
Totalt megapixel2,38 MP
Bakgrundsbelysning ersättningcheckmark
Strömmande videocheckmark
Vänd och speglacheckmark
Typ av förstärkningAuto/manuell
Highlight Compensation (HLC)checkmark
Certifikat
CertifieringEN60950-1, IEC60950-1, EN62368-1, IEC62368-1, EN601000-6-4, EN61000-3-2, EN61000-3-3, EN50130-4, EN55032 (Class A), EN60950-22, ICE60950-22, EN50130-5, EN60068-2-6, cULus, FCC part 15 (Class A), ICES-003 (Class A), ATEX (EN 60079-0+A11, EN 60079-1, EN 60079-31), IECEx (IEC 60079-0, IEC 60079-1, IEC 60079-31), EAC EX (TR CU 012/2011), INMETRO (ABNT NBR IEC 60079-0 + Errata 1, ABNT NBR IEC 60079-1 + Errata 1, ABNT NBR IEC 60079-31), ENV1, ENV2, ENV3, ENV5, EN60945, EN60068-2-52, EN60068-2-2
RoHS-efterlevnadcheckmark
Bildsensor
BildsensortypExmor
Kamera
Betraktningsvinkel (horisontell)67°
VitbalansATW, Automatisk, inomhus, Manuell, One push, Utomhus, Sodium lamp
Slutartid1/10000 s
Minimibelysning1,4 lx
Förpackningens innehåll
Antal kameror1
Design
FormfaktorStifthylsa
IndikationerDriftindikator
Produktens färgRostfritt stål
Material, höljeRostfritt stål
MonteringssättSkrivbord/vägg
Internationellt skydd (IP) kodIP69
Mörkerseende
Mörkerseendecheckmark
Prestanda
ModellIP-säkerhetskamera
Plug & Play-kompatibelcheckmark
Kabellängd100 m
Placeringar som kan användasInomhus & utomhus
Lätta exponeringslägenBländarprioritet AE, Automatisk, Manuell, Bländarautomatik
PTZ-styrning (Pan / Tilt / Zoom)checkmark
Brett dynamiskt omfång (WDR)checkmark
Larm ingång / utgångcheckmark
Fog bevischeckmark
EAN
Garanti2 år
Source: Icecat.biz

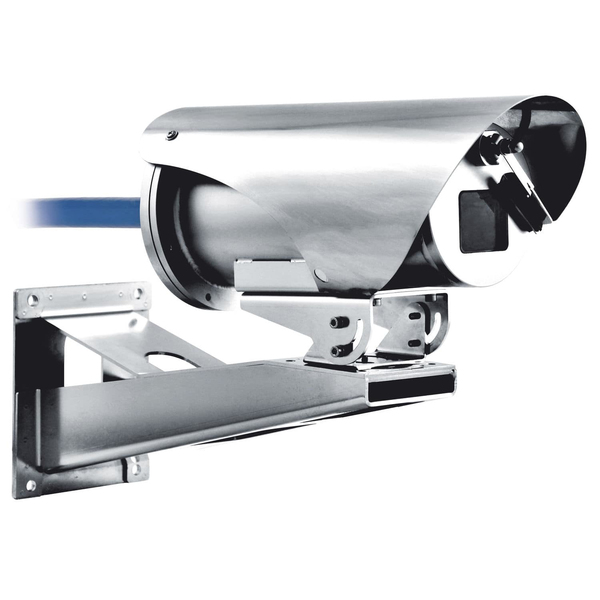

The Full HD explosion-protected MAXIMUS MVXHD is perfect for effective video surveillance and process control in harsh settings where the presence of gases or flammable dust can create a potentially explosive environment, a reality often found in the oil and gas industries or marine and industrial sectors.

The Full HD, 1080p, 60fps, MVXHD camera with 10x or 30x motorised zoom lens for easier setup, offers multiple video streams (H.264/AVC or MJPEG) and provides exceptional image quality, picking out every detail in a scene, even in the harshest environmental conditions.

One striking advantage offered by these cameras is their extremely easy and secure “plug and play” installation, with multipolar wiring. These cameras arrive ready to use, avoiding the complex electrical connections that are typical of this type of device.

The housing is compact yet functional and is made entirely out of AISI316L stainless steel. Its resistance to corrosion is not only guaranteed, but is also enhanced by way of polishing processes.

Another important feature of the camera is the extended certification temperature range of -60°C to 65°C, along with a sophisticated cold start system, which allows it to operate in harsh environments as standard.

An equally noteworthy point is that the IP66/IP67/IP68 ratings guarantee the complete protection against harsh weather and submersion in up to 5 metres of water for 2 hours. Moreover, the IP69 rating allows the device to be cleaned with high pressure water jets.

These cameras come with wipers and an explosion-proof washer kit is also available, allowing for flawless, maintenance-free cleaning of the front glass.

The MAXIMUS MVX range of cameras meets every installation need, providing maximum performance and excellent value for money.

The MAXIMUS MVX series products are Lloyd's Register Type Approval System Test Specification Number 1 certified and therefore can be used in Marine and Offshore applications for environmental categories ENV1, ENV2, ENV3 and ENV5 (eg. passenger ships, open-air decks, closed spaces and technical areas that may be subject to heat generated by other equipment, potentially explosive areas, docking procedures).

- Certifications for use in Zones 1 and 2, IIC T5 and T6 Group (Gas) and in Zones 21 and 22, IIIC T100°C and T85°C Group (Dust)
- Camera Full HD 1080p, 10x or 30x, 60 frames per second (fps)
- Plug and Play
- 4m (13ft) / 10m (33ft) preinstalled armoured multipolar cable with cable gland or, alternatively, with 4m (13ft) / 10m (33ft) cable tail
- Certification temperature: from -60°C (-76°F) up to +65°C (149°F)
- Power supply: 12-24Vdc/24Vac
- IP66/IP67/IP68/IP69
