12-24Vdc/24Vac, thermal cam
Audio | |
Signal/brusförhållande (SNR) | 50 dB |
Anslutningar | |
Gränssnitt | RJ-45 |
Anslutningsteknologi | Kabel |
Antalet Ethernet (RJ-45) anslutningar | 1 |
Linssystem | |
Digital zoom | 120x |
Optiska zoom | 10X |
Zoomkapacitet | ![]() |
Fokus | Manuell |
Brännvidd | 1,8 - 3,4 mm |
Justering av fokus | 1,8 - 3,4 |
Fast brännvidd | 3,8 cm |
Vikt & dimension | |
Bredd | 51 mm |
Diameter | 4,1 cm |
Strömtillförsel | |
AC adapter maxbelastning | 2.2 A |
Likströmsingång | ![]() |
DC-utgång ampere | 3,5 A |
Strömkälla typ | AC, DC |
Växelström Frekvens | 50 - 60 hz |
Miljökrav | |
Intervall för relativ operativ luftfuktighet | 10 - 95% |
Temperaturintervall (förvaring) | -50 - 65 ° C |
Temperatur vid drift | -40 - 65 ° C |
Fuktighet (förvaring) | 10 - 95% |
Nätverk | |
Kabelteknik | 10/100Base-T(X) |
Nätverksansluten (Ethernet) | ![]() |
Bluetooth | ![]() |
Wi-Fi | ![]() |
Ethernet-gränssnitt typ | Snabb Ethernet |
Strömningsmetod | Multicast |
Grafikstyrenhet | |
Maximal upplösning | 1920 x 1080 pixlar |
Komprimeringsformat | AVC,H.264,M-JPEG |
Full HD | ![]() |
Bildfrekvens | 60 fps |
Grafikbussar resolutioner | 1920 x 1080 (HD 1080) |
Videolägen som stöds | 1080p |
Videoformat som stöds | AVC,H.264 |
Automatisk förstärkningskontroll | ![]() |
Totalt megapixel | 2,38 MP |
Bakgrundsbelysning ersättning | ![]() |
Strömmande video | ![]() |
Vänd och spegla | ![]() |
Typ av förstärkning | Auto/manuell |
Highlight Compensation (HLC) | ![]() |
Certifikat | |
Certifiering | EN60950-1, IEC60950-1, EN62368-1, IEC62368-1, EN601000-6-4, EN61000-3-2, EN61000-3-3, EN50130-4, EN55032 (Class A), EN60950-22, ICE60950-22, EN50130-5, EN60068-2-6, cULus, FCC part 15 (Class A), ICES-003 (Class A), ATEX (EN 60079-0+A11, EN 60079-1, EN 60079-31), IECEx (IEC 60079-0, IEC 60079-1, IEC 60079-31), EAC EX (TR CU 012/2011), INMETRO (ABNT NBR IEC 60079-0 + Errata 1, ABNT NBR IEC 60079-1 + Errata 1, ABNT NBR IEC 60079-31), ENV1, ENV2, ENV3, ENV5, EN60945, EN60068-2-52, EN60068-2-2 |
RoHS-efterlevnad | ![]() |
Bildsensor | |
Bildsensortyp | Exmor |
Kamera | |
Betraktningsvinkel (horisontell) | 67° |
Vitbalans | ATW, Automatisk, inomhus, Manuell, One push, Utomhus, Sodium lamp |
Slutartid | 1/10000 s |
Minimibelysning | 1,4 lx |
Förpackningens innehåll | |
Antal kameror | 1 |
Design | |
Formfaktor | Stifthylsa |
Indikationer | Driftindikator |
Produktens färg | Rostfritt stål |
Material, hölje | Rostfritt stål |
Monteringssätt | Skrivbord/vägg |
Internationellt skydd (IP) kod | IP69 |
Mörkerseende | |
Mörkerseende | ![]() |
Prestanda | |
Modell | IP-säkerhetskamera |
Plug & Play-kompatibel | ![]() |
Kabellängd | 100 m |
Placeringar som kan användas | Inomhus & utomhus |
Lätta exponeringslägen | Bländarprioritet AE, Automatisk, Manuell, Bländarautomatik |
PTZ-styrning (Pan / Tilt / Zoom) | ![]() |
Brett dynamiskt omfång (WDR) | ![]() |
Larm ingång / utgång | ![]() |
Fog bevis | ![]() |
EAN | |
Garanti | 2 år |
Source: Icecat.biz |

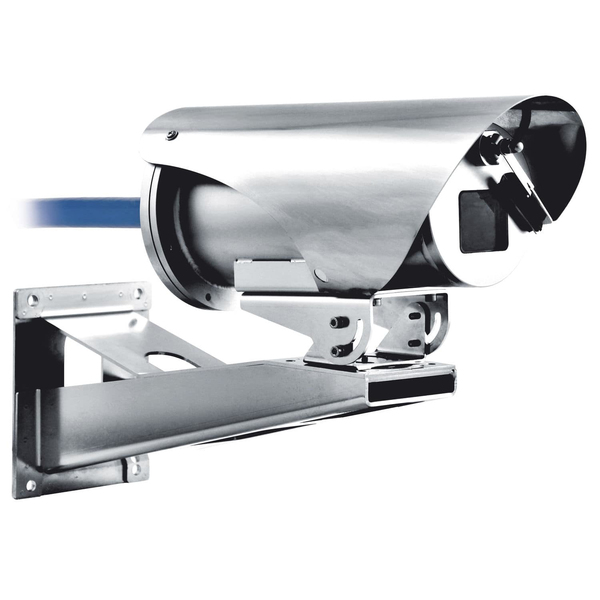

The Full HD explosion-protected MAXIMUS MVXHD is perfect for effective video surveillance and process control in harsh settings where the presence of gases or flammable dust can create a potentially explosive environment, a reality often found in the oil and gas industries or marine and industrial sectors.
The Full HD, 1080p, 60fps, MVXHD camera with 10x or 30x motorised zoom lens for easier setup, offers multiple video streams (H.264/AVC or MJPEG) and provides exceptional image quality, picking out every detail in a scene, even in the harshest environmental conditions.
One striking advantage offered by these cameras is their extremely easy and secure “plug and play” installation, with multipolar wiring. These cameras arrive ready to use, avoiding the complex electrical connections that are typical of this type of device.
The housing is compact yet functional and is made entirely out of AISI316L stainless steel. Its resistance to corrosion is not only guaranteed, but is also enhanced by way of polishing processes.
Another important feature of the camera is the extended certification temperature range of -60°C to 65°C, along with a sophisticated cold start system, which allows it to operate in harsh environments as standard.
An equally noteworthy point is that the IP66/IP67/IP68 ratings guarantee the complete protection against harsh weather and submersion in up to 5 metres of water for 2 hours. Moreover, the IP69 rating allows the device to be cleaned with high pressure water jets.
These cameras come with wipers and an explosion-proof washer kit is also available, allowing for flawless, maintenance-free cleaning of the front glass.
The MAXIMUS MVX range of cameras meets every installation need, providing maximum performance and excellent value for money.
The MAXIMUS MVX series products are Lloyd's Register Type Approval System Test Specification Number 1 certified and therefore can be used in Marine and Offshore applications for environmental categories ENV1, ENV2, ENV3 and ENV5 (eg. passenger ships, open-air decks, closed spaces and technical areas that may be subject to heat generated by other equipment, potentially explosive areas, docking procedures).
- Certifications for use in Zones 1 and 2, IIC T5 and T6 Group (Gas) and in Zones 21 and 22, IIIC T100°C and T85°C Group (Dust)
- Camera Full HD 1080p, 10x or 30x, 60 frames per second (fps)
- Plug and Play
- 4m (13ft) / 10m (33ft) preinstalled armoured multipolar cable with cable gland or, alternatively, with 4m (13ft) / 10m (33ft) cable tail
- Certification temperature: from -60°C (-76°F) up to +65°C (149°F)
- Power supply: 12-24Vdc/24Vac
- IP66/IP67/IP68/IP69
