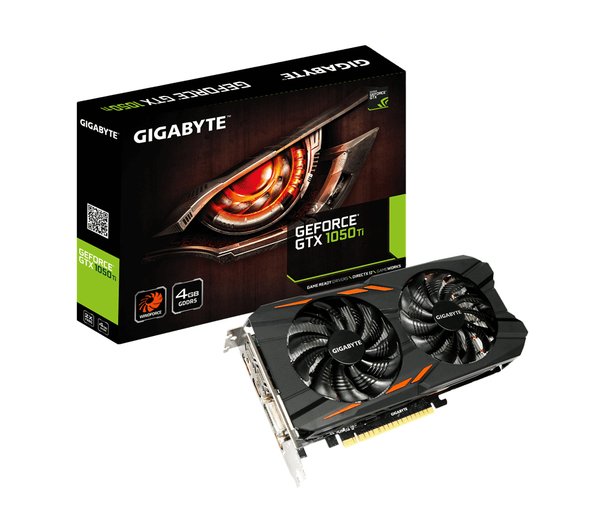

Gigabyte GeForce GTX 1050 Ti Windforce 4GB - grafikkort

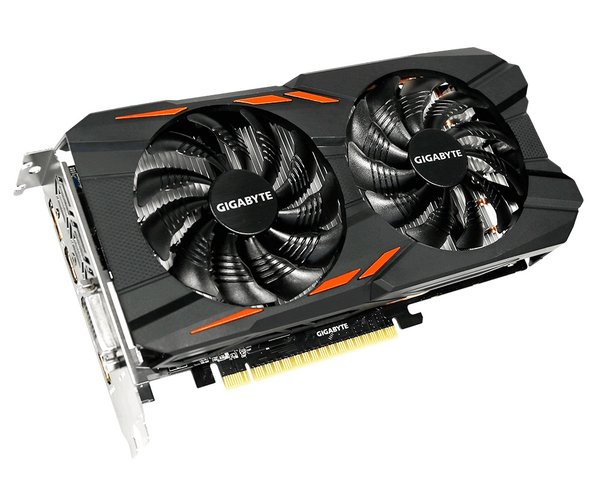

WINDFORCE 2X Cooling System

The WINDFORCE 2X cooling system features two 90mm unique blade fans, one pure copper composite heat-pipes, alternate spinning fan design, and heat pipe direct touch technology, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

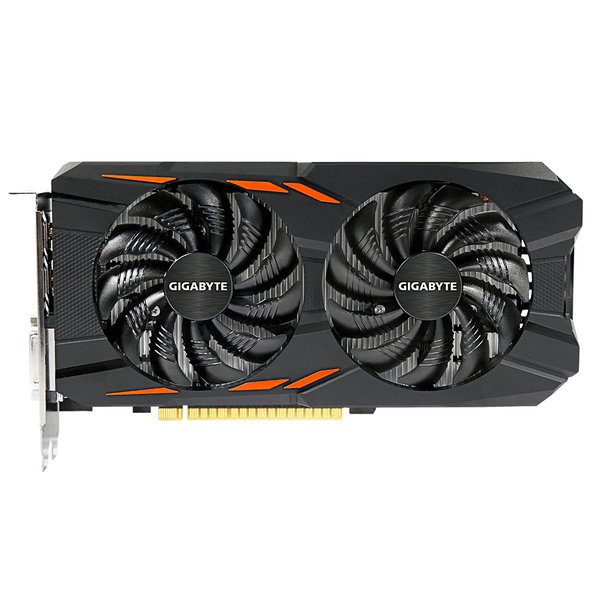

WINDFORCE 2X Cooling System-Fans

Alternate Spinning Fan Design
Optimize air flow by the alternate spinning fans that reduce air turbulence and effectively dissipate the heat.

Unique Blade Fan Design
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans.

3D Active Fan
The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming.

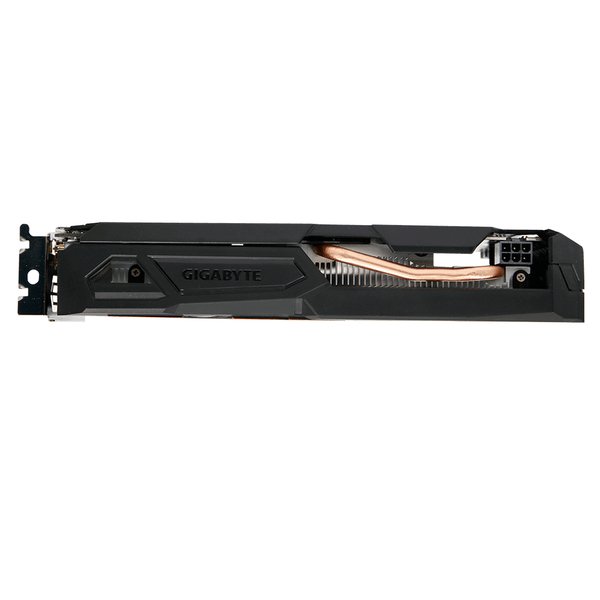

WINDFORCE 2X Cooling System-Heat Pipes

Composite heat-pipes
The composite heat-pipes combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.

Heat Pipe Direct Touch
The pure copper heat pipes are shaped to maximize the direct contact area to the GPU.

Outlook

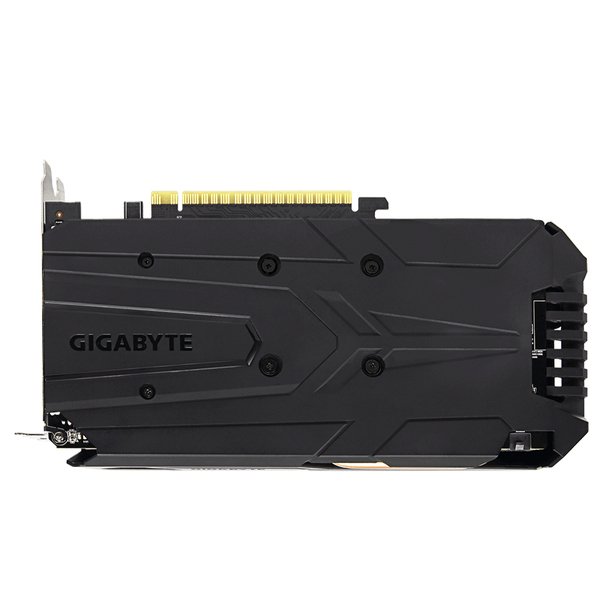

Protection Back Plate
The back plate offers rigidity and protection to the structure, while adding a sleek, clean look to the product.

Performance

One-click Super overclocking
With a simple click on XTREME engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge, while saving the hassle of manual adjustment.

Durability

Ultra Durable Components
Engineered with the highest-grade chokes and capacitors, this graphic card delivers outstanding performance and durable system lifespan.

Built for OverClocking with 4+1 power phases
Compared to reference design, the 4+1 power phases on the card make the MOSFET working at a lower temperature and provide more stable voltage output. (*reference design 3+1)

Intuitive Utility

Intuitive XTREME Engine Utility
Clock speeds, voltage, fan performance, and power target can be monitored and tuned in real-time according to your own preference through this intuitive interface.

- Powered by GeForce® GTX 1050 Ti
- Integrated with 4GB GDDR5 128bit memory
- WINDFORCE 2X with Blade Fan Design
- Protection Back Plate
