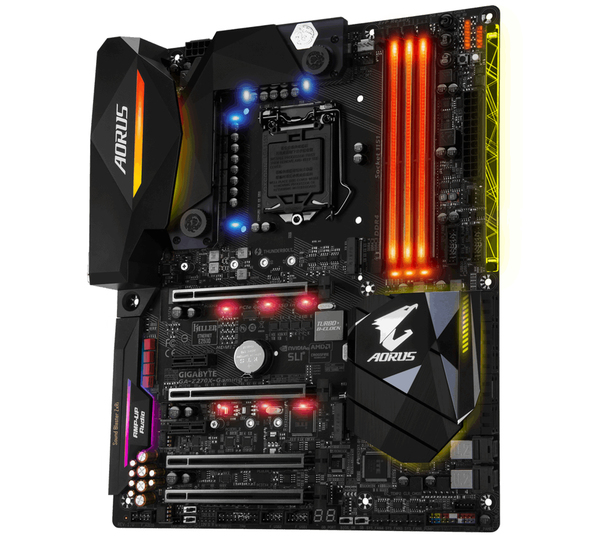

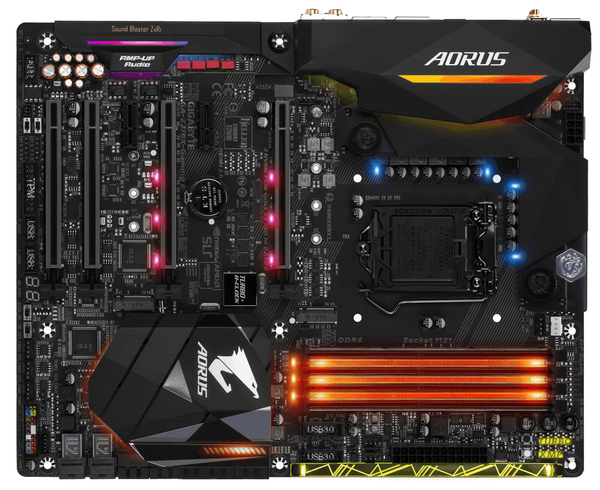

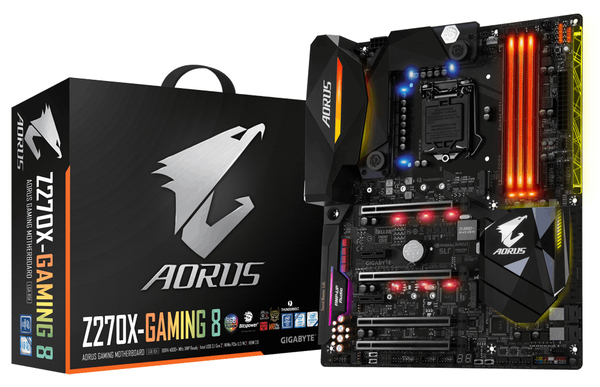

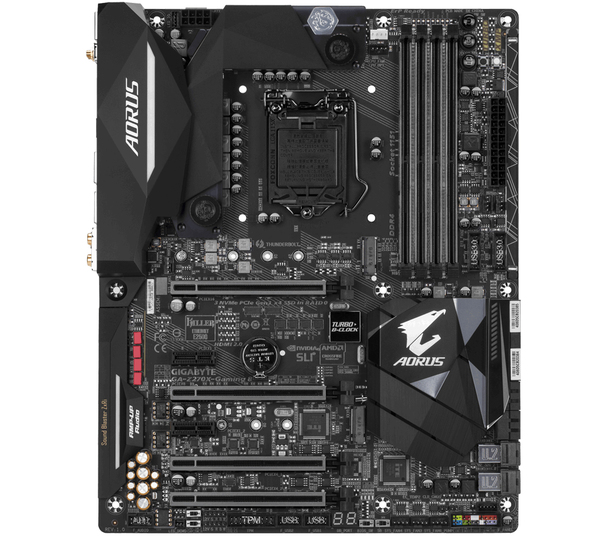

GA-Z270X-GAMING8 S1151 Z270 ATX WLAN+U3.1+M2+TB SATA 6GB/S DDR4

- Supports 7th/ 6th Generation Intel® Core™ Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Intel® USB 3.1 Gen 2 with USB Type-C™ and Type-A
- 3-Way Graphics Support with Dual Armor and Ultra Durable™ Design
- Bitspower G-Chill Hybrid Water Block
- Triple NVMe PCIe SSDs in RAID 0 Support
- Dual NVMe PCIe Gen3 x4 U.2 Connectors
- Dual Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface
- Intel® Optane™ Memory Ready
- Creative Sound Blaster certified ZxRi 120dB+ Audio
- Killer DoubleShot™ Pro Gaming Network + Intel® Gigabit LAN
- USB DAC-UP 2 with Adjustable Voltage
- RGB FUSION with Multi-Zone LED Light Show design
- Swappable Overlay for Accent LED
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
- 2 External Thermistors Headers with 2 Included Thermistors
- Extreme 40 Gb/s Thunderbolt™ 3
- Integrated HDMI 2.0 Support
- GIGABYTE UEFI DualBIOS™ with Q-Flash Plus USB Port
- APP Center Including EasyTune™ and Cloud Station™ Utilities

Bitspower G-Chill
Hybrid Water Block
AORUS and Bitspower have teamed up to create a superior performance hybrid water block featuring a high-flow pure copper water channel that’s placed directly over VRMs for superior cooling. G1/4” threaded fittings ensure compatibility with any setup you plan to create.

A Breath of Fresh Air.
Air cooling has never been so easy. You may find that even without an active cooling solution, this state-of-the-art heatsink performs better than anything you’ve encountered. That’s because its integral design was to improve upon traditional heatsinks.

The Life of the Party
Most gamers don’t stop, so your PC shouldn’t either. Components that are consistently placed under thermal stress will often fail or die completely. With liquid cooling you can expect a longer lifespan from your PC.

RGB FUSION
Set the Color that Matches Your Style
AORUS' 200 series motherboards boast the most advanced LED system in the market today. With more customizability than ever and a convenient and intuitive UI thanks to the RGB Fusion App, you’ll have a blast making your AORUS your own. LED enthusiasts now have even more options with the ability to customize multiple zones independently. For a more functional use, the bright and vibrant LEDs can be configured to display the PC’s temperature or load. For even more LED goodness RGBW strips are now supported for more true and vibrant whites.

Multi-Zone Light Show Design
- 16.8M RGB Colors
- 6 Light Zones
- 8 Programmable Sections
- 8 Different Lighting Effects
- 2 RGBW Light Strip Pin Headers
- Accent LED with Interchangeable Overlay
- Advanced Mode for Extreme Customizability

Surround Lighting
Six different light zones are equipped with high brightness RGB LEDs, namely the CPU, Memory, Armor, Audio, PCI-Express and Chipset & Accent LED Zones. When it’s all set and done, your system will shine like never before.

Swappable Overlay for Accent LED
AORUS brings even more color and life to your system with an Accent LED Overlay. This overlay complements the RGB Fusion technology in AORUS Motherboards adding more flare and style to your gaming machine. With the swappable overlay users can utilize different patterns and designs to make their system their own.

Supports RGBW Light Strips
Independently Programmable Onboard Pin Header for RGBW LED Strips
Not bright enough? You can install standard 12V external RGB or RGBW light strips on the RGBW pin header and control its color from the RGB Fusion software. With RGBW light strips that have a dedicated white color LED, you can have brighter and more vibrant colors.

No need to worry when choosing light strips as the AORUS motherboards support a wide variety of RGBW light strips on the market thanks to the RGB Fusion software that allows users to redefine the pin location for the R/G/B Signal.

RGB Fusion (Advanced mode)
With the all new RGB Fusion software, users have access to different preset LED lighting configurations with choice of colors. You can even set the LEDs to synchronize with your favorite music or have them change colors to indicate the CPU temperature.

For true lighting experts there is an Advanced Mode, which can be fully customized by individual area with its own effects and color transitions, along with specific duration and transition times.

Once done, it’s simple to save and share your lighting profile with others.

Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

All Hybrid Fan Pin Headers
- All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
- Supports up to 2 amps with built-in overcurrent protection—a must for high-end high current fans.

New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

Interoperable Sensors and Fans
Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).

Fan Curve
Customize fan curves based on specific temperatures with the intuitive graphical UI.

Enhanced BIOS Interface
The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature change—all without having to load Windows.

High-End Nichicon Fine Gold and WIMA Audio Caps
The Z270X-Gaming 8 boasts a combination of Hi-Fi grade WIMA capacitors and Nichicon audio grade Fine Gold capacitors. While the Nichicon Fine Gold capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The addition of this to the exclusive AORUS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.

AMP-UP™ Audio Technology with Triple Upgradable OP-AMPs
AORUS offers true sound customization with its triple upgradable OP-AMP solution. To ensure users receive the best sound profile matching their needs and experience the most enjoyable audio, AORUS has included an OP-AMP for both left and right channels on the rear I/O as well as a dedicated OP-AMP for the front audio jack.

USB DAC-UP 2 Adjustable Voltage USB Port with Dedicated Power Design
AORUS improves upon USB DAC-UP technologies with USB DAC-UP 2.
USB DAC-UP 2 continues to provide clean, isolated and low-noise power while adding the ability to compensate for voltage drop.
Virtual reality pioneers and gamers alike can rest assured that their expensive accessories and peripherals will not encounter connectivity or power deficiency issues with the AORUS USB DAC-UP 2. With Gaming Gear drawing large amounts of power and having firm specification requirements USB DAC-UP 2 is up for the challenge.

XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere
Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!

Triple NVMe PCIe SSDs in RAID 0 Support
Extreme Performance with Gen3 x4 NVMe PCIe SSDs
AORUS' Z270 motherboards offers the industry’s best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design supports up to three Intel 750 Series NVMe PCIe SSDs which can be configured in RAID for record speeds of up to 3525 MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.

U.2 Onboard (NVMe PCIe Gen3 x4)
NVMe Performance for PCIe SSDs
The new Intel 750 series SSDs offer an incredible increase in performance over SATA drives. Using the NVMe protocol which takes advantage of the fast bandwidth of PCIe Gen3 x4 lanes (32 Gb/s), the drives are a clear advantage for users looking to boot their OS faster, load their games in a flash and access large files without waiting. By implementing the U.2 port onboard to support the 2.5” Intel 750 Series drive, AORUS ensures that the users can benefit from the best performance.

High-Bandwidth(HB) SLI Bridge
Take your gaming performances to a whole new level by multiple GeForce GTX cards with High-Bandwidth(HB) SLI Bridge.

Dual Ultra-Fast NVMe PCIe Gen3 x4 M.2
With two NVMe PCIe Gen3 x4 M.2 connectors onboard, GIGABYTE brings to the user PCI-Express connectivity for SSD devices. Delivering up to 32 Gb/s data transfer speed per connector, the dual M.2 provides an ideal storage solution as it also supports RAID modes.

Fast Onboard Storage with NVMe
PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s)
AORUS' M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.

Next Generation 40 Gb/s Thunderbolt™ 3
Thunderbolt™ 3 – The Fastest 40 Gb/s Single-wire Connection
Powered by Intel's own Thunderbolt controller the new Thunderbolt™ 3 protocol, which is available over a USB Type-C™ connector on the back I/O of the AORUS' motherboards, brings an unprecedented single-wire bandwidth of up to 40 Gb/s -- twice more than the previous generation of Thunderbolt! This incredible increase in bandwidth is also accompanied with support for different protocols such as DisplayPort 1.2 and USB 3.1, which is backwards compatible with USB 3.0 and USB 2.0, opening up a world of new possibilities.

Daisy-chain Multiple Devices
Support for DisplayPort 1.2 makes Thunderbolt™ 3 a must have for any enthusiast. The Z270X-Gaming 8 is able to support a display in 4K resolution at 60 FPS. In addition, Thunderbolt™ 3 over USB Type-C™ has revolutionary industry-first features such as Power Delivery 2.0, and the ability to daisy-chain up to 6 devices thanks to the Z270X-Gaming 8’s USB Type-C™ port.

HDMI 2.0 for 4K / 60P / 21:9 / HDCP 2.2 Support
HDMI 2.0, which is backwards compatible with HDMI 1.4, offers 18 Gb/s of bandwidth – nearly twice that of the previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), offering the best visual experience for viewers.

PURE SPEED, MORE POWER
Exclusively on AORUS Powered Motherboards
The Intel® USB 3.1 controller utilizes four PCIe Gen3 Lanes, offering up to 32 Gb/s total bandwidth, for uncompromised transfer speeds of up to 10 Gb/s per USB 3.1. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.

Turbo B-Clock
Built-in Advanced Performance Tuning IC
Turbo B-Clock Tuning IC in the AORUS 200 series motherboards enable overclockers to have the ability to change their BCLK frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 90MHz to 500MHz are now possible, so that overclockers are not limited to the 5% ranges of traditional straps.
*Turbo B-Clock overclocking range may vary according to CPU capabilities.

Diagnostic LEDs
Hardware Troubleshooting at a Glance
Onboard LEDs controlled by the system BIOS indicate if a malfunction is occurring, allowing users to quickly diagnose which major component (CPU/DDR/VGA/HDD) is malfunctioning so they may take action promptly.

Support for DDR4 XMP Up to 4000MHz and Beyond*
AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 4000MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.

What is XMP?
DDR4 memory modules are available at a stock frequency of 2133MHz, but as frequency tweaking requires a considerable amount of effort and knowledge, memory vendors encode XMP profiles which can automatically modify the timings of the supported memory modules to work with your CPU and to achieve increased performance.

Dual Armor DIMM and PCIe Metal Shielding
Never worry about your heavy graphics card damaging your motherboard again. AORUS’ proprietary Ultra Durable PCIe Metal Shielding reinforces the PCIe connector to prevent slot damage due to heavy graphics card. The DIMM and PCIe metal shield also provides extra strength for when you forget to release the lock while replacing your component, adding a foolproof option which can save your PC’s life.

Ultra Durable™ Memory Armor
AORUS’ exclusive one piece stainless steel shielding design prevents against PCB distortion and twist, plate bending, in addition to preventing any possible ESD interference.

GIGABYTE Patented DualBIOS™ (UEFI) Design
GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.

Long Lifespan Durable Black™ Solid Caps
AORUS motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on AORUS motherboards.

15µ Gold Plated
CPU Socket Design
AORUS motherboards come equipped with a 15 microinch thick gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.

Q-Flash Plus
AORUS Q-Flash Plus allows users to update to the latest BIOS using a thumb drive without the CPU or Memory needing to be installed.
Updating your BIOS on your AORUS motherboard can be done in a flash – even without memory or CPU onboard. Utilizing the EC Controller, the BIOS on your AORUS Motherboard can now be updated through Q-Flash Plus even if your system is unable to boot. A LED next to the EC controller will notify you once the procedure is complete and you are ready to boot your system normally.
