| Anslutningar | |
| Moderkort strömkontakt | 20+4 pin ATX |
| Diskettenhet strömkontakt | 1 |
| Antalet SATA strömkontakter | 6 |
| Periferiska (Molex) strömkontakter (4-pin) | 2 |
| EPS strömkontakt (8-polig) |  |
| PCI Express strömkontakter (6 +2 pin) | 4 |
| Vikt & dimension | |
| Vikt | 2,85 kg |
| Höjd | 86 mm |
| Bredd | 190 mm |
| Djup | 150 mm |
| Strömtillförsel | |
| Normalförbrukning | 700 W |
| Effektivitet | 90% |
| Effekt skyddsfunktioner | Överspänning, Överspänning, Kortslutning |
| Power Factor Correction (PFC) typ | Aktiv |
| Kombinerad effekt (+3,3 V) | 130 W |
| Kombinerad effekt (+5 V) | 130 W |
| Max utström (+3,3 V) | 20 A |
| Max utström (+12 V) | 51 A |
| Max utström (+5 V) | 20 A |
| Max utström (-12V) | 0,5 A |
| Max utström (+5 VSB) | 3 A |
| Växelström Frekvens | 50/60 hz |
| AC-inspänning | 100 - 240 V |
| Total effekt | 700 W |
| Högsta ingångsström (vid 110V) | 10 A |
| Högsta ingångsström (vid 220V) | 5 A |
| Certifikat | |
| 80 plus-certifiering | 80 PLUS Gold |
| Design | |
| Produktens färg | Svart |
| Antal fläktar | 2 fläkt/-ar |
| Fläktdiameter | 4 cm |
| Prestanda | |
| Medeltid mellan fel (MTBF) | 100000 h |
| Ändamål | PC/server |
| Kullagertyp | Ball bearing |
| 80 plus-certifiering | 80 PLUS Gold |
| Strömförsörjningsenhet formfaktor | PS/2 |
| EAN | 4713224520488 |
| Garanti | 2 år |

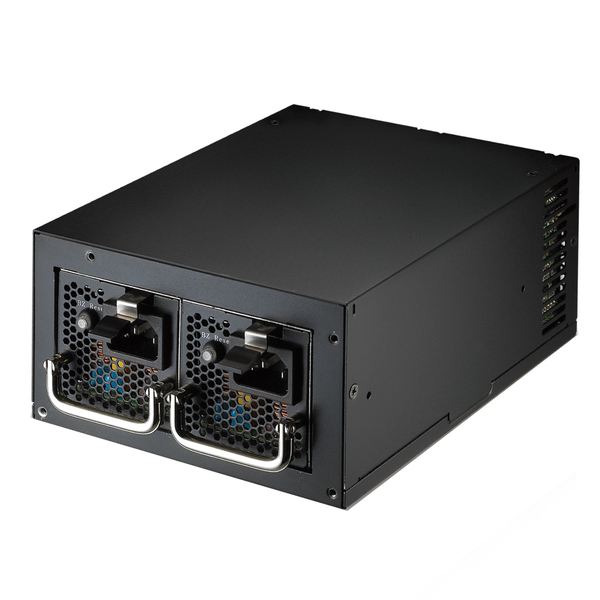

Twins series, a redundant power supply, is designed for standard ATX or PS2 chassis, no front end bracket needed, ideal for mail, web or home server.Hot swappable modules design provides stable power supply: when one fails, the other can take over the load immediately.Thus users do not need to worry about any server/PC power off situation.
Twins series is an ATX size redundant power supply, without front end bracket, especially designed for PS2 chassis. Equipped with two power supply modules that can work at the same time, give you double guarantees. No matter for startups, SMC business or home users, Twins series is a good power supply units for mail, web or home server. Hot swappable modules designs let users do not need to worry about server/PC power off situation anymore.
Server-grade & Stable Power Supply Provider
Different from the general power supply units, Twins series is a redundant power supply unit with two power modules. In normal situation, these two power modules will automatically share the load for optimum efficiency; while one fails, the other module will immediately take over the whole load.That is redundant power supply is usually used in industrial data centers's sever or banking computer systems.
Twins can guarantee your PC system under a stable power supply situation.

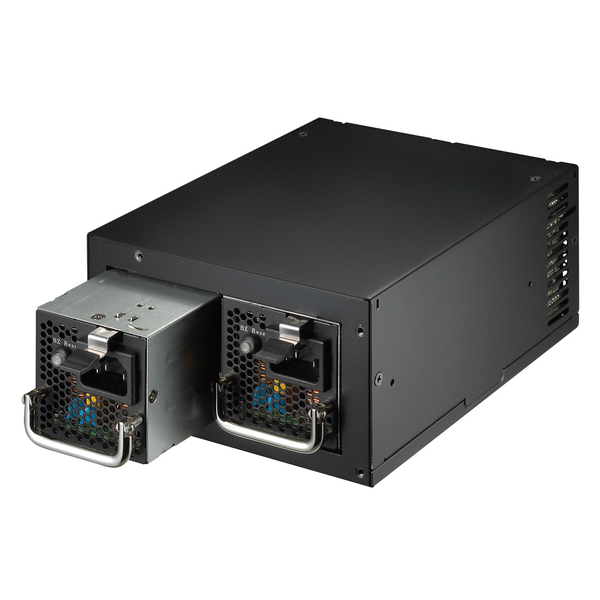

Hot Swappable Modules Design
When a power module fails and the redundant unit takes over immediately, the damaged one can be replaced without stopping the operation. No need to worry about the risk of data disappearance or the disruption of system.
80 Plus® Gold Certification
Twins Series is a power supply with 80 PLUS® 230V Internal Gold Certification that guarantees to operate at a minimum of 90% efficiency at 50% load of PSU rated power and as a result to reduce lots of electricity cost.
FSP Intelligent Monitor Software
Users can use FSP Guardian software to monitor power input, power output, efficiency, and other internal records in real time and get the historical data within 30 days. When power input or output reaches the warning points during the process , FSP Guardian will immediately shows warning message to remind the latest situation of Twins.
Throught setting the sender and conditions information in FSP Guardian software Version 2.0, you can remote monitoring in real time and get immediately warning message by your mail.

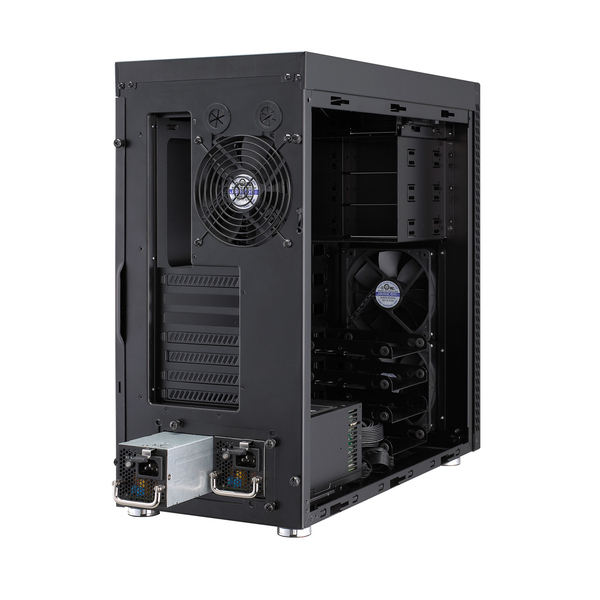

Ideal for Home or Business Server
Twins series is an ATX size redundant power supply, without front end bracket, it is compatible for most PS2 chassis. It is an ideal power supply unit solution for startups, small and medium-sized businesses web or mail server systems, semi-industrial application. It is also the best power supply unit for intelligent home computer station.
Black Ribbon Cable Design
Easy install avoids cables becoming messy, saves the chassis' inner space, lets the airflow smooth, enhances the heat emission effect and finally extends the life span of each component.
DC to DC Module Design
+12V SR circuit, combining both +3.3V and +5V DC-DC modules, offers supreme efficiency, voltage stability and high system compatibility especially in cross regulation (unbalanced load) mode.

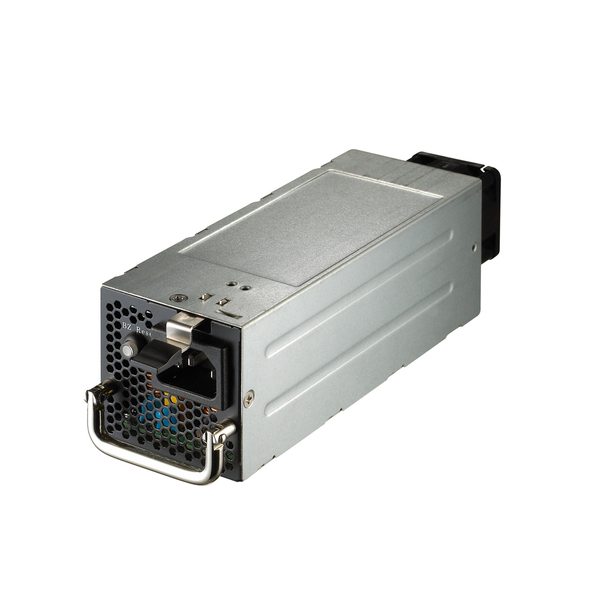

Twins Single Modules for Replacement
Supplementary single module can be purchased in local markets. If you have any further inquire, please contact FSP's loal dealers or branches.
Twins series is an ATX size redundant power supply, without front end bracket, especially designed for PS2 chassis. Equipped with two power supply modules that can work at the same time, give you double guarantees. No matter for startups, SMC business or home users, Twins series is a good power supply units for mail, web or home server. Hot swappable modules designs let users do not need to worry about server/PC power off situation anymore.
Server-grade & Stable Power Supply Provider
Different from the general power supply units, Twins series is a redundant power supply unit with two power modules. In normal situation, these two power modules will automatically share the load for optimum efficiency; while one fails, the other module will immediately take over the whole load.That is redundant power supply is usually used in industrial data centers's sever or banking computer systems.
Twins can guarantee your PC system under a stable power supply situation.
Hot Swappable Modules Design
When a power module fails and the redundant unit takes over immediately, the damaged one can be replaced without stopping the operation. No need to worry about the risk of data disappearance or the disruption of system.
80 Plus® Gold Certification
Twins Series is a power supply with 80 PLUS® 230V Internal Gold Certification that guarantees to operate at a minimum of 90% efficiency at 50% load of PSU rated power and as a result to reduce lots of electricity cost.
FSP Intelligent Monitor Software
Users can use FSP Guardian software to monitor power input, power output, efficiency, and other internal records in real time and get the historical data within 30 days. When power input or output reaches the warning points during the process , FSP Guardian will immediately shows warning message to remind the latest situation of Twins.
Throught setting the sender and conditions information in FSP Guardian software Version 2.0, you can remote monitoring in real time and get immediately warning message by your mail.
Ideal for Home or Business Server
Twins series is an ATX size redundant power supply, without front end bracket, it is compatible for most PS2 chassis. It is an ideal power supply unit solution for startups, small and medium-sized businesses web or mail server systems, semi-industrial application. It is also the best power supply unit for intelligent home computer station.
Black Ribbon Cable Design
Easy install avoids cables becoming messy, saves the chassis' inner space, lets the airflow smooth, enhances the heat emission effect and finally extends the life span of each component.
DC to DC Module Design
+12V SR circuit, combining both +3.3V and +5V DC-DC modules, offers supreme efficiency, voltage stability and high system compatibility especially in cross regulation (unbalanced load) mode.
Twins Single Modules for Replacement
Supplementary single module can be purchased in local markets. If you have any further inquire, please contact FSP's loal dealers or branches.
