Produktspecifikation
Välj en eller flera funktioner för att söka efter produkter med samma specifikationer.
Produktspecifikation
Beskrivning
På lager i butiker
Leverans
Prisutveckling
| Processor | |
| Processortillverkare | Intel |
| Processorsockel | LGA 1366 |
| Minne | |
| Maximalt internminne | 1,54 TB |
| Minnesspänning | 1,2 V |
| Minnets hastigheter | 2133,2400,2666 MHz |
| Minnestyper som stöds | DDR4 |
| Maximalt RDIMM minne | 384 GB |
| Vikt & dimension | |
| Bredd | 305 mm |
| Djup | 244 mm |
| Miljökrav | |
| Temperaturintervall (förvaring) | -40 - 70 ° C |
| Temperatur vid drift | 10 - 35 ° C |
| Fuktighet (förvaring) | 20 - 90% |
| Nätverk | |
| Nätverksansluten (Ethernet) |  |
| LAN-styrenhet | Intel® I210-AT |
| Wi-Fi |  |
| Typ av ethernet-gränssnitt | 10 Gigabit Ethernet, Gigabit Ethernet |
| Intern I/O | |
| USB 2.0 anslutning | 1 |
| CPU-fläktsanslutning | |
| Chassits genomgångsanslutning | |
| TPM-anslutning | |
| USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar | 1 |
| Antal SATA III kontakter | 13 |
| Serieport headers | 1 |
| Anslutningsmöjligheter | |
| Antal PS/2-portar | 0 |
| Antal USB 2.0 anslutningar | 0 |
| Antal LAN (RJ-45) anslutningar | 2 |
| Kvalitet på VGA (D-Sub) porten | 1 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar | 2 |
| Lagringskontroll | |
| Lagringsenhetsgränssnitt som stöds | SATA III |
| Förpackning | |
| Vikt inkl. förpackning | 1,62 kg |
| Förpackningens innehåll | |
| Kabel inkluderad | SATA |
| Expansionsplatser | |
| PCI Express x8 (Gen 3.x)-kortplatser | 2 |
| PCI Express x8 (Gen 2.x)-kortplatser | 0 |
| PCI Express x16 (Gen 2.x)-kortplatser | 0 |
| PCI Express x16 (Gen 3.x)-kortplatser | 2 |
| Övriga egenskaper | |
| Vikt | 970 g |
| Antalet DIMM-platser | 12 |
| Stöd för RDIMM modulkapacitet | 4GB, 8GB, 16GB, 32GB |
| Antal processorer som stöds | 1 |
| Stöds LRDIMM modul kapacitet | 32GB, 64GB |
| Maximal LRDIMM minne | 768 GB |
| Grafiken | |
| Ombord grafikkort modell | Aspeed AST2500 |
| Ombord grafikkort minne | 64 MB |
| Egenskaper | |
| Moderkort formfaktor | ATX |
| Logistikdata | |
| Harmonized System (HS)-kod | 84733020 |
| EAN | 4712900812718 |
| Garanti | 1 år |
Unmatched memory expandability with 12 DIMM slots

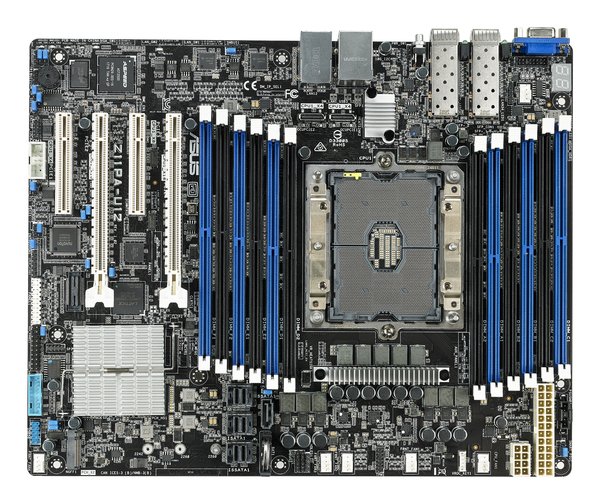

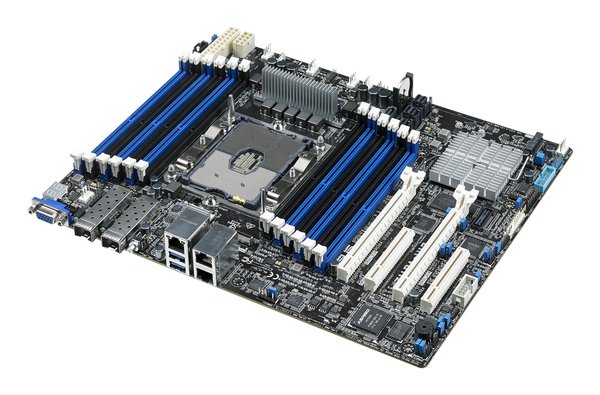

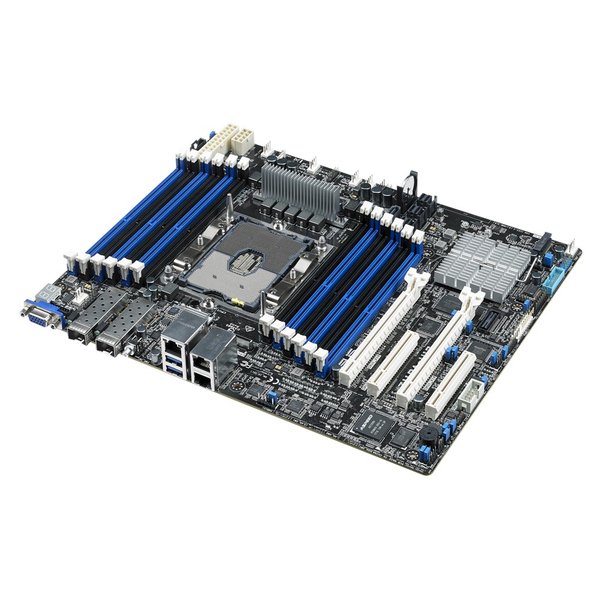

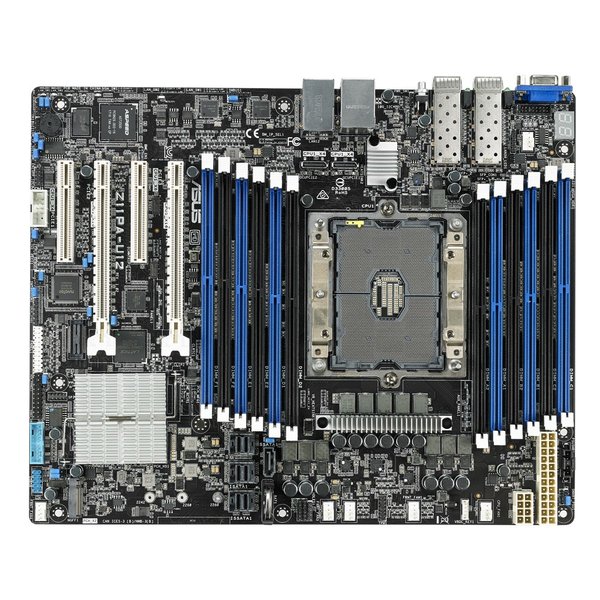

ASUS Z11PA-U12/10G-2S features 12 DIMM slots — the most on any compact ATX motherboard — giving it unmatched memory expandability. Together with support for dual double-deck GPUs, Z11PA-U12/10G-2S makes an ideal platform for deep learning application development and education.
High-speed networking with dual 10 Gigabit SFP+
With dual 10 Gigabit SFP+ modules, ASUS Z11PA-U12/10G-2S delivers blazingly fast networking speeds for both intranet and internet connections. Additionally, Intel® Virtual RAID on CPU (VROC) works with dual OCuLink connectors to enable both RAID 0 configurations for increased data transfer speeds and RAID 1 for instant data redundancy.
Dual OCuLink for efficient connections to NVMe devices
ASUS Z11PA-U12/10G-2S features dual onboard OCuLink to provide efficient port-to-port connection with most OCuLink-supported NVMe devices, eliminating the need for PCIe transaction cards.
Connect up to 13 6Gb/s SATA storage devices
ASUS Z11PA-U12/10G-2S comes with three mini-SAS HD connectors that support up to twelve SATA ports each for high-speed 6Gb/s connectivity with external devices and cleaner cable routing. Additionally, a 7-pin SATA port provides flexibility to connect an optical drive or extra SATA device.
Comprehensive IT infrastructure management solution
The latest ASMB9-iKVM module enables remote BIOS updates, fan control, standalone KVM with HTML 5 interface, video recording and BSOD capture. With out-of-band management, ASMB9-iKVM provides around-the-clock remote monitoring and diagnostics — even if the server operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers. ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables easier server management with functions such as BIOS updating without restarting the system, remote monitoring of multiple systems via mobile devices, and one-click software updates and dispatching. Learn more about ACC
Increased energy efficiency with ASUS ProCool Power Connectors
ASUS Z11PA-U12/10G-2S comes with ASUS ProCool Power Connectors, which decrease power connector temperature for reduced power loss and increased cost savings.
Up to 1.5TB RDIMM, LRDIMM 3DS. Support 12 x 128G DDR4-2666MHz
Hybrid M.2 connector x 1 interface. Form factor: 2242, 2260, 2280. Support both PCIE and SATA
ASUS Z11PA-U12/10G-2S features 12 DIMM slots — the most on any compact ATX motherboard — giving it unmatched memory expandability. Together with support for dual double-deck GPUs, Z11PA-U12/10G-2S makes an ideal platform for deep learning application development and education.
High-speed networking with dual 10 Gigabit SFP+
With dual 10 Gigabit SFP+ modules, ASUS Z11PA-U12/10G-2S delivers blazingly fast networking speeds for both intranet and internet connections. Additionally, Intel® Virtual RAID on CPU (VROC) works with dual OCuLink connectors to enable both RAID 0 configurations for increased data transfer speeds and RAID 1 for instant data redundancy.
Dual OCuLink for efficient connections to NVMe devices
ASUS Z11PA-U12/10G-2S features dual onboard OCuLink to provide efficient port-to-port connection with most OCuLink-supported NVMe devices, eliminating the need for PCIe transaction cards.
Connect up to 13 6Gb/s SATA storage devices
ASUS Z11PA-U12/10G-2S comes with three mini-SAS HD connectors that support up to twelve SATA ports each for high-speed 6Gb/s connectivity with external devices and cleaner cable routing. Additionally, a 7-pin SATA port provides flexibility to connect an optical drive or extra SATA device.
Comprehensive IT infrastructure management solution
The latest ASMB9-iKVM module enables remote BIOS updates, fan control, standalone KVM with HTML 5 interface, video recording and BSOD capture. With out-of-band management, ASMB9-iKVM provides around-the-clock remote monitoring and diagnostics — even if the server operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers. ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables easier server management with functions such as BIOS updating without restarting the system, remote monitoring of multiple systems via mobile devices, and one-click software updates and dispatching. Learn more about ACC
Increased energy efficiency with ASUS ProCool Power Connectors
ASUS Z11PA-U12/10G-2S comes with ASUS ProCool Power Connectors, which decrease power connector temperature for reduced power loss and increased cost savings.
Up to 1.5TB RDIMM, LRDIMM 3DS. Support 12 x 128G DDR4-2666MHz
Hybrid M.2 connector x 1 interface. Form factor: 2242, 2260, 2280. Support both PCIE and SATA
