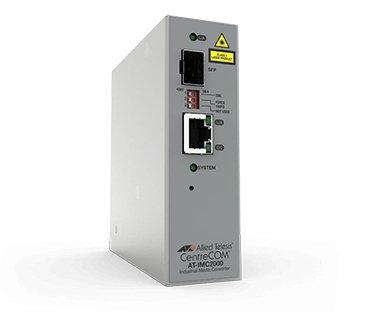

ALLIED TAA 10/100/1000T to 100X/1000X SFP Industrial Temp Gigabit Media Converter
Tillverkare: ALLIED TELESIS
ID: AT-IMC2000T/SP-980
61890€
Visa Moms 0%
Visa Moms 25,5%
Multitronic Vasa
Multitronic Jakobstad
Multitronic Jyväskylä
Multitronic Villmanstrand
Multitronic Mariehamn
Produktspecifikation
Beskrivning
På lager i butiker
Leverans
Prisutveckling
| Anslutningar | |
| Anslutningsteknologi | Wired |
| Antal LAN (RJ-45) anslutningar | 1 |
| Fiberportar kvantitet | 1 |
| Fiberoptiska kontakten | SFP |
| Vikt & dimension | |
| Vikt | 748 g |
| Höjd | 35 mm |
| Bredd | 111 mm |
| Djup | 96 mm |
| Strömtillförsel | |
| Spänning | 12 - 48 V |
| Miljökrav | |
| Altitud vid drift | 0 - 3048 m |
| Intervall för relativ operativ luftfuktighet | 5 - 95% |
| Temperaturintervall (förvaring) | -40 - 85 ° C |
| Temperatur vid drift | -40 - 75 ° C |
| Fuktighet (förvaring) | 5 - 95% |
| Nätverk | |
| Maximal dataöverföringshastighet | 1000 Mbit/s |
| Jumbo Frames stöd |  |
| Lagra-och-vidarebefordra | |
| Datahastighet för Ethernet-LAN | 10,100,1000 Mbit/s |
| Auto MDI / MDI-X | |
| VLAN-stöd | |
| Typ av ethernet-gränssnitt | Snabb Ethernet, Gigabit Ethernet |
| Duplex systemet | Fullständig, Halv |
| Omvandlare inmatningsgränssnitt | 10Base-T, 100Base-T, 1000Base-T |
| Omvandlare utgränssnittet | 100Base-X, 1000Base-X |
| Autonegotiation | |
| Paketförmedlingshastighet (1 Gbps) | 1488000 pps |
| Paketförmedlingshastighet (10 Mbps) | 14880 pps |
| Paketförmedlingshastighet (100 Mbps) | 148800 pps |
| Jumboramar | 10000 |
| Design | |
| Intern |  |
| Certifiering | TAA EMI/Emission & Stability FCC Class A EN55024 (immunity standard) EN55032 Class A EN55035 VCCI Class A |
| Säkerhet | UL 62368-1, EN 62368-1, UL 60950-1 (UL mark), CAN/CSA C22.2 No. 60950-1 (cUL mark), EN 60950-1 (TUV mark) |
| LED-indikatorer | |
| Produktens färg | Grey |
| Internationellt skydd (IP) kod | IP30 |
| DIN-skena | |
| Prestanda | |
| Våglängd | 850 nm |
| Tx effekt (max) | -4 dBmW |
| Tx effekt (min) | -9,5 dBmW |
| Rx effekt (min) | -17 dBmW |
| Rx effekt (max) | -3 dBmW |
| Logistikdata | |
| Harmonized System (HS)-kod | 85176990 |
| EAN | 0767035210582 |
| Garanti | 5 år |
| Source: Icecat.biz | |
10/100/1000T to 100Mbps/1000Mbps SFP industrial temperature media converter. These converters feature Smart MissingLink™ (SML) and support up to 10K jumbo frames. The IMC2000T/SP-980 can be mounted on a DIN-rail or used as a desktop/standalone device and is fanless for silent operation.
Powering remote devices
Allied Telesis IMC200/2000 Series Industrial Media Converters (IMCs) are ideal for powering remote devices, such as IP phones, video cameras and wireless Access Points (APs), which are more than 100m from a Power over Ethernet (PoE) switch. Each IMC can provide up to 70W of PoE.
The 2000T/SP and the 2000TP/SP each feature a 10/100/1000T twisted-pair port, and an SFP port which supports and auto detects 100X and 1000X optics. No switch configuration is needed. Allied Telesis offers a wide variety of SFPs featuring multimode, single mode and BiDi optics.
Models with a fixed fiber-optic port are available with SC or LC connectors. With these, you can achieve distances up to 2 km (100Mps) or 550 m (1000Mps). With the SFP model, you can achieve greater distances using a long-range SFP.
In addition to transmitting data, the twisted-pair port also injects power down the cable, allowing a remote PoE powered device to operate without any additional power source. All PoE+ devices (IEEE802.3at compliant) are supported. All PoE+ devices support 802.3at, PoE+, LTPoE++ and 4-pair. The PC200x PoE+ Series can deliver up to 70W of power to the remote device.
Remote Power Cycle
The IMC200/2000 Series supports the Remote Power Cycle feature. This allows a remote administrator to log in to the host switch device and disable the switch port to which the IMC is attached, causing the PoE+ device to lose power. This allows administrators to reset remote devices without physically going to the location.
Jumbo frame support
Many backbone switch products support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) which sends extra-long data packets on the network. The IMC200/2000 Series are fully compatible with these long packets, enabling them to be used in modern networks.
Smart MissingLink™ (SML)
The SML feature monitors network connections and provides a notification when a link fails, allowing administrators to quickly identify the source and location of failed links, and thus minimize downtime.
Powering remote devices
Allied Telesis IMC200/2000 Series Industrial Media Converters (IMCs) are ideal for powering remote devices, such as IP phones, video cameras and wireless Access Points (APs), which are more than 100m from a Power over Ethernet (PoE) switch. Each IMC can provide up to 70W of PoE.
The 2000T/SP and the 2000TP/SP each feature a 10/100/1000T twisted-pair port, and an SFP port which supports and auto detects 100X and 1000X optics. No switch configuration is needed. Allied Telesis offers a wide variety of SFPs featuring multimode, single mode and BiDi optics.
Models with a fixed fiber-optic port are available with SC or LC connectors. With these, you can achieve distances up to 2 km (100Mps) or 550 m (1000Mps). With the SFP model, you can achieve greater distances using a long-range SFP.
In addition to transmitting data, the twisted-pair port also injects power down the cable, allowing a remote PoE powered device to operate without any additional power source. All PoE+ devices (IEEE802.3at compliant) are supported. All PoE+ devices support 802.3at, PoE+, LTPoE++ and 4-pair. The PC200x PoE+ Series can deliver up to 70W of power to the remote device.
Remote Power Cycle
The IMC200/2000 Series supports the Remote Power Cycle feature. This allows a remote administrator to log in to the host switch device and disable the switch port to which the IMC is attached, causing the PoE+ device to lose power. This allows administrators to reset remote devices without physically going to the location.
Jumbo frame support
Many backbone switch products support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) which sends extra-long data packets on the network. The IMC200/2000 Series are fully compatible with these long packets, enabling them to be used in modern networks.
Smart MissingLink™ (SML)
The SML feature monitors network connections and provides a notification when a link fails, allowing administrators to quickly identify the source and location of failed links, and thus minimize downtime.
