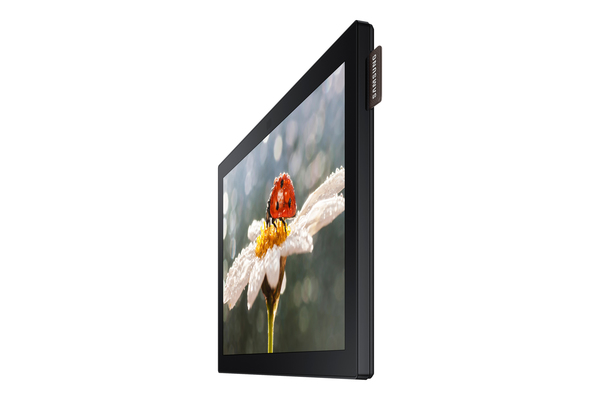

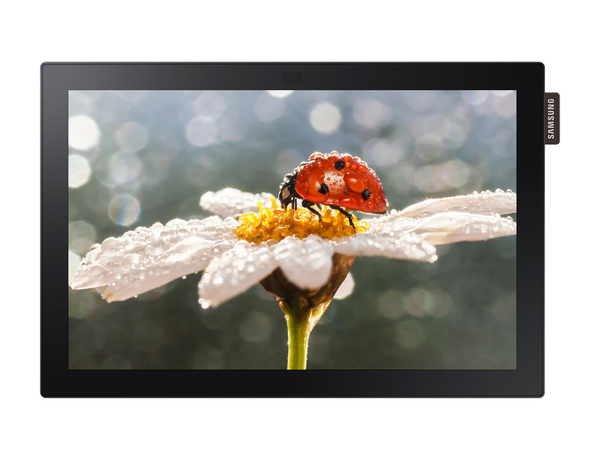

SAMSUNG 10.1" DB10E-T LED HDMI TOUCH

Tillverkare: SAMSUNG
ID: LH10DBEPTGC/EN
Produkten är inte tillgänglig
Produkten har utgått från sortimentet eller är inte tillgänglig för tillfället.

Produktspecifikation

Välj en eller flera funktioner för att söka efter produkter med samma specifikationer.
Produktspecifikation
Beskrivning
På lager i butiker
Leverans
Prisutveckling
Skärm
Bildpunktavstånd0,1695 x 0,1695 mm
Kontrastförhållande (medel)900:1
Horisontellt sökområde30 - 81 kHz
Betraktningsvinkel (horisontell)178°
Synfältsvinkel (vertikal)178°
Vertikalt sökområde48 - 75 hz
Skärm diagonal25,6 cm (10.1")
Ljusstyrka400 cd/m²
Svarstid (medel)30 ms
Upplösning1280 x 800 pixlar
Diagonal skärmstorlek25,65 cm
Grafikupplösningar som stöds1280 x 800
Pekskärmcross
Kontrastförhållande (dynamisk)50000:1
Typ av LED-bakgrundsbelysningDirect-LED BLU
SkärmtypLED
Native bildförhållande16:10
HD-typWXGA
Färgomfång50%
Aktiv skärmyta (B x H)217 x 135,6 mm
Antal färgercheckmark
Audio
Antal inbyggda högtalare2
Uteffekt (RMS)20 W
Inbyggda högtalarecheckmark
Anslutningar
Typ av minneskortSD
Nätverksansluten (Ethernet)checkmark
Antal LAN (RJ-45) anslutningar1
DVI-portcross
Inbyggd kortläsarecheckmark
Antal ljudutgångar vänster/höger1
Antal HDMI-portar1
RS-232Ccheckmark
Vikt & dimension
Vikt700 g
Höjd165,2 mm
Bredd246,8 mm
Djup27,9 mm
Strömtillförsel
Strömförbrukning (vanlig)18,2 W
Värmeavgivning281,5 BTU/h
Strömförbrukning i avslaget läge0,5 W
EnergiklassD
Strömförbrukning i väntläge0,5 W
Växelström Frekvens50 - 60 hz
AC-inspänning100 - 240 V
Miljökrav
Intervall för relativ operativ luftfuktighet10 - 80%
Temperatur vid drift0 - 40 ° C
Förpackning
Vikt inkl. förpackning1,5 kg
Fjärrkontroll ingårcheckmark
Kabel inkluderadAC,RS-232
Låddjup79 mm
Höjd205 mm
Förpackningens bredd300 mm
Bruksanvisningcheckmark
Snabbstartsguidecheckmark
Garantisedelcheckmark
Övriga egenskaper
Avsökningsfrekvens148,5 MHz
Antal produkter som medföljer1 styck
Strömförbrukning (max)24,2 W
Design
CertifieringFCC (USA) Teil 15, Unterteil B Klasse A, CE (Europa): :2006 + A1:2007, EN55024:1998 + A1:2001 + A2:2003, VCCI (Japan): VCCI V-3 / 2010.04 Klasse A, KCC / EK (Korea): ohne Tuner: KN22 / KN24, BSMI (Taiwan): CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) CNS14972 (Digital), C-Tick (Australien): AS / NZS CISPR22:2009, CCC (China):GB9254-2008, GB17625.1-2012, GOST (Russland / GUS): GOST R 51317 Serie, GOST 22505-97, EN55022:2006 + A1:2007, EN55024:1998 + A1:2001 + A2:2003
CB (Europa): IEC60950-1 / EN60950-1, CCC (China): GB4943.1-2011, PSB (Singapur): PSB + IEC60950-1, NOM (Mexiko): NOM-001-SCFI-1993, IRAM (Argentinien): IRAM + IEC60950-1, SASO (Saudi Arabien): SASO + IEC60950-1, BIS (Indien): IEC60950-1 / IS13252, NOM (Mexiko): ohne Tuner: NOM-019-SCFI-1998, KC (Korea): K 60950-1, EAC (Russland): EAC + IEC60950-1, INMETRO (Brasilien): INMETRO + IEC60950-1, BSMI (Taiwan): BSMI + IEC60950-1, RCM (Australien): IEC60950-1 / AS / NZS 60950-1, CSA (Kanada): cUL, UL(USA) : cUL60950-1, TUV (Deutschland): CE, NEMKO (Norwegen): CE
Produktens färgSvart
Gränsssnitt för panelmontering75 x 75 mm
ProduktdesignPlatt skärm för digital skyltning
Bezel-bredd (sidan)1,41 cm
Bezel-bredd (överst)1,41 cm
Bezel-bredd (botten)1,41 cm
VESA-fästecheckmark
Prestanda
Inbyggd TV mottagarecross
Wi-Ficheckmark
Datorsystem
Typ av system på chipp (SoC)Samsung SMART Signage Platform (SSSP) Gen 3
Datorsystemcheckmark
DatorsystemtypSystem on chip (SoC)
EAN8806086911931
Garanti3 år
Source: Icecat.biz

Versatility for your Business Display Needs
Samsung Small Signage meets the reliability and durability demands of your business environment. Businesses no longer have to rely on consumer-oriented tablet alternatives that can malfunction or lose picture quality when used at length in retail and professional settings. With performance guaranteed for 16 hours a day, 7 days a week, and supported by a two-year warranty, you can confidently operate the small-sized display at the pace of your business.
Beyond reliability, Samsung Small Signage expands functionality and convenience with advanced multi-device connectivity. Unlike consumer-geared tablets that can require a separate router or connection, the DBE-T display features embedded Wi-Fi to allow screen sharing among PCs, tablets and smartphones. Additionally, the DBE-T display offers ports for HDMI, USB downstream and upstream, and SD cards, improving productivity and eliminating potentially distracting on-site clutter. As a highly reliable and capable SMART signage solution, the Samsung DBE-T display is the perfect tablet alternative to accommodate any of your device needs.

Elevate the Customer Experience through Interactive Touch and Dynamic Sound
The Samsung Small Signage DBE-T display transforms customer engagement into a multi-sensory experience. The display’s interactive touch screen with five-point, two-drawing touch capability makes product and service navigation user-friendly and personalized. This helps promote customer engagement, which in turn, drives new revenue opportunities. As a PC-less display, the DBE-T display’s touch function comes fully integrated. Since the DBE-T eliminates the need for a separate PC or content management software, businesses can deploy the integrated solution without incurring additional equipment and installation costs. Built-in 5 W speakers further elevate interactivity by connecting on-screen content with dynamic sound. By combining these professional-grade features with the display’s sleek appearance and uniform bezel design, the DBE-T creates a truly memorable experience for customers.

Conveniently and simply manage a rich array of content with an advanced content management platform
Deliver myriad rich content with DBE Series built-in media player and simplified management through 3rd Generation Samsung SMART Signage Platform (SSSP). An internal memory upgrade from 4 GB to 8 GB enhances the displays’ usability. The embedded, all-in-one 3rd Generation SSSP eliminates the need for a separate PC or media player to streamline digital signage operation and improve total cost of ownership (TCO).
New MagicInfo S3, a content management solution embedded in 3rd Generation SSSP enables you to create, deploy and manage content more easily than the previous version with an enhanced UI and UX. MagicInfo S3 leverages 3rd Generation SSSP, an open platform that provides compatibility with myriad third-party software for flexibility and ease of use with other applications.

Easily manage digital signage with a simplified Home UI
Heighten efficiency and productivity with a newly designed Home Menu UI that displays frequently used functions in a new, large-button matrix design. Simplify usage with a selection of customizable menu configurations that allow ready access to repeatedly used menus. Generate content more easily and conveniently than ever with the Home Menu’s newly designed templates for various vertical markets including grocery stores, QSRs, terminals and lobbies. Leverage these sharp, professional template layouts to produce and design content in either portrait or landscape orientation. And, turn the Home Menu into a touch-activated user experience by adding an optional Touch Overlay.

A Cost-Efficient Content Management Solution Designed for your Small Business
While small- and mid-sized businesses (SMBs) and small office/home office (SOHO) business owners may not need to connect several displays with real-time or frequently-changing data as larger retail and corporate content managers require, they still value the convenience and efficiency of effective content management. As an alternative to MagicInfo DataLink, Samsung’s Data Module solution is specifically designed with SMB and SOHO users in mind. Instead of requiring a MagicInfo server and DataLink license fee, the embedded Data Module connects with a business owners’ existing local data storage*. Information is then shared automatically from the data storage and transmitted to the MagicInfo Author tool. Using Data Module-capable Samsung Small Signage, SMBs and SOHO business owners can thus share timely and informative content more effectively with a reduced total cost of ownership (TCO).

Manage Real-Time, Multi-Display Content Through Data Server Compatibility
For retail, corporate and transportation environments where multiple displays are installed and need to be remotely managed, such as QSRs, grocery stores, conference rooms and airport terminals, the time and effort required to update frequently-changing data in real-time can strain business operations and staff effectiveness. As a server-based content management solution, Samsung Small Signage’s MagicInfo DataLink content management program is ideally suited to address these demanding usage scenarios.
The MagicInfo DataLink solution allows content managers to easily and instantly update information across displays based on frequently changing data, such as exchange rates and customer waiting lists, as the DataLink server and MagicInfo Author tool automatically share information from a user-designated administrative server. As a result, you can retrieve, update and transmit content and improve customer awareness and satisfaction with greater convenience and less effort required.
