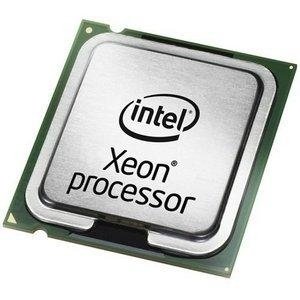

Intel Xeon E5540 2.53G 8MB

Valmistaja: IBM
ID: 44T1884
Tuote ei ole saatavilla
Tätä tuotetta ei valmisteta enää tai sitä ei ole tällä hetkellä saatavilla.
Tuotetiedot
Kuvaus
Myymäläsaatavuus
Toimitus
Hinnan muutokset
Prosessori
ProsessorimalliE5540
Prosessorin litografia45 nm
SuoritinperheIntel® Xeon® 5000 Sequence
Laatikkocross
Prosessorin kantaLGA 1366
KellotusD0
Prosessorin ytimet4
Prosessorin ydinSLBF6
CPU-monistin (väylän/ytimen suhde)19
L3-välimuistin nopeus2,53 GHz
Järjestelmän väylänopeus5,86 GT/s
Prosessorin säikeet8
Prosessorin käyttötilat64-bit
Suorittimen boost-taajuus2,8 GHz
Komponentti (tuotteelle)Palvelin/työasema
Prosessorin välimuisti8 MB
VäylätyyppiQPI
QPI-linkkien lukumäärä2
Prosessorin taajuus2,53 GHz
Prosessorin koodinimiNehalem EP
Prosessorin välimuistityyppiSmart Cache
ProsessorisarjaIntel Xeon 5500 series
Muisti
Prosessorin tukema suurin sisäinen muisti144 GB
Prosessorin tukemat muistityypitDDR3-SDRAM
Prosessorin tukemat muistin kellonopeudet800,1066 MHz
Prosessorin tukema muistin kaistanleveys (maks.)25,6 GB/s
Prosessorin tukemat muistikanavatKolmen hengen huone
Prosessori tukee ECC:tächeckmark
Paino ja mitat
Prosessorin pakkauskoko42,5 mm
Virranhallinta
VID-jännitealue0,75 - 1,35 V
Thermal Design Power (TDP)80 W
Ympäristöolosuhteet
Tcase76 °C
Grafiikka
Sisäinen näytönohjaincross
Suorittimen erityispiirteet
Intel® Hyper-Threading -teknologia (Intel® HT Technology)checkmark
Intel® Turbo Boost -teknologia1.0
Intel® Smart Cachecheckmark
Enhanced Intel SpeedStep Technologycheckmark
Intel® Trusted Execution -teknologiacross
Intel® Enhanced Halt Statecheckmark
Intel® VT-x, jossa Extended Page Tables (EPT)checkmark
Intel® Demand Based Switchingcheckmark
Intel® 64checkmark
Intel® Virtualization Technology for Directed I/O (VT-d)checkmark
Intel® Virtualization Technology (VT-x)checkmark
Ominaisuudet
Execute Disable Bitcheckmark
Joutotilatcheckmark
Fyysinen osoitelaajennus (PAE)40 bittiä
CPU-kokoonpano (maks.)2
Die transistorien prosessoinnin lukumäärä731 M
Saatavilla olevat upotetut vaihtoehdotcheckmark
Die-koon prosessointi263 mm²
Grafiikka- ja IMC Die -transistorien lukumäärä731 M
EAN883436052870
Takuu1 vuosi
Source: Icecat.biz

Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.

Intel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.

Intel® VT-x with Extended Page Tables (EPT), also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Extended Page Tables in Intel® Virtualization Technology platforms reduces the memory and power overhead costs and increases battery life through hardware optimization of page table management.
