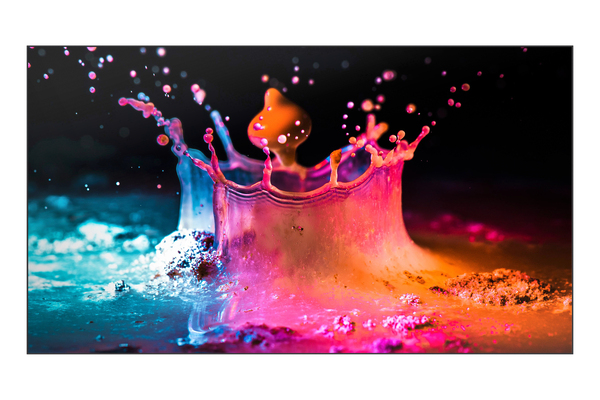

Samsung UD46E-B - 46" Luokka LED-näyttö - digital signage - 1080p (Full HD)

LH46UDEBLBB/EN
1778,90 €
Näyta hinta: sis. ALV ilman ALV
Verkkokauppa:
2 kpl saatavilla

Arvioitu toimitusaika: 5-7 päivää
Toimituskulut: alkaen 18,40 €
Nouto myymälästä0,00 €
Postin pakettiautomaatit19,90 €
Postipaketti19,60 €
Ovelle-paketti23,90 €
Kotipaketti27,60 €
Matkahuolto Lähellä-paketti0,00 €
Matkahuolto Bussipaketti18,40 €
Myymälät:valitse
5-7 päivää
Tuotetiedot
Näyttö
Kuvapikselitiheys0,53025 x 0,53025 mm
Kontrastisuhde (tyypillinen)3500:1
Katselukulma, vaakasuora178°
Katselukulma, pystysuora178°
Näytön halkaisija (tuuma)116,8 cm (46")
Näytön kirkkaus500 cd/m²
Vasteaika (tyypillinen)8 ms
Näytön erottelutarkkuus1920 x 1080 pikseliä
Ruudun halkaisija (cm)116 cm
Tuetut grafiikan erottelutarkkuudet1920 x 1080 (HD 1080)
Tuetut videomoodit1080p
Kontrastisuhde (dynaaminen)10000:1
LED taustavalon tyyppiDirect-LED DID
Näytön tyyppiLED
Vakiokuvasuhde16:9
HD-tyyppiFull HD
Värikirjo72%
Aktiivinen näyttöalue (LxK)1018,08 x 572,67 mm
Näyttövärejä16,78 miljoonaa väriä
Liitettävyys
LAN (kiinteä)checkmark
Ethernet LAN (RJ-45)-portit1
DVI-portticheckmark
DVI-D -portteja1
Ääni sisään (V,O)1
Ääni ulos (V,O)1
HDMI -portteja2
Näyttö porttien määrä2
VGA (D-Sub) sisään1
RS-232Ccheckmark
USB-portticross
Paino ja mitat
Paino16,2 kg
Tuotteen korkeus576,6 mm
Tuotteen leveys1022,1 mm
Tuotteen syvyys97,4 mm
Virranhallinta
Virrankulutus87 W
Energiatähtisertifioitucheckmark
Lämmön poisohjaus1665,1 BTU/h
Virrankulutus (pois päältä)1665,1 W
EnergialuokkaC
Virrankulutus (lepotila)0,5 W
AC-syöttötaajuus50/60
AC-syöttöjännite100 - 240
Ympäristöolosuhteet
Suhteellinen kosteusalue10 - 80%
Käyttölämpötila0 - 40 °C
Pakkaustiedot
Paino pakattuna22,6 kg
Kauko-ohjaincheckmark
Sisältää johdotAC, DisplayPort
Pakkauksen syvyys280 mm
Pakkauksen korkeus715 mm
Pakkauksen leveys1160 mm
Pika-aloitusopascheckmark
Takuukortticheckmark
Sisältää paristotcheckmark
Muut ominaisuudet
Dot clock -skannaustiheys148,5 MHz
Virrankulutus (maks.)143 W
Suunnittelu
SertifiointiFCC (USA) FCC Part 15, Subpart B class A, CE (Europe) EN55022, EN55024, VCCI (Japan) V-3 (CISPR22), KCC (Korea) :KN22, KN24, BSMI (Taiwan) : CNS13438 (CISPR22), C-Tick (Australia): AS/NZS3548 (CISPR22), CCC(China) :GB 9254-2008, GB 17625.1-2003

UL (USA) : UL 60950-1, CSA (Canada) : CSA C22.2 No. 60950-1 , TUV (Germany) : EN60950-1, NEMKO (Norway) : EN60950-1, KC (Korea) : K60950-1, CCC (China) : GB 4943-2001, PSB (Singapore) : IEC60950-1, GOST (Russia) : IEC60950-1, EN55022, SIQ (Slovenia) : IEC60950-1, EN55022, PCBC (Poland) : IEC60590-1, EN55022, NOM (Mexico) : NOM-019-SCFI-1993, IRAM (Argentina) :IEC60950-1, SASO (Saudi Arabia) : IEC60950-1
Tuotteen väriMusta
VESA-asennusliitännät600 x 400 mm
MuotoiluDigital signage flat panel
Etupaneelin leveys sivulla1,2 mm
Etupaneelin leveys ylhäällä2,3 mm
Etupaneelin leveys alhaalla2,3 mm
VESA-kiinnityscheckmark
SuuntaVaaka/Pysty
Suorituskyky
Plug & Play -yhteensopivacheckmark
HDCPcheckmark
Multi-näyttö tuettucheckmark
Tietokonejärjestelmä
System on Chip (SoC) -tyyppiSamsung SMART Signage Platform (SSSP) Gen 3
Tietokonejärjestelmächeckmark
TietokonejärjestelmätyyppiJärjestelmäpiiri (SoC)
EAN8806086742061
Source: Icecat.biz
Kuvaus

Achieve Ultimate Picture Quality through Advanced Factory Calibration
Any irregularity in a video wall’s brightness and color accuracy across displays can negatively impact the viewing experience. To eliminate these types of color expression gaps and maintain a fully-aligned, consistent and captivating presentation, Samsung’s UDE-B Series video walls feature advanced factory tuning, innovative hardware and exceptional user calibration tools. Samsung’s multi-step factory calibration process tunes video wall displays to the highest-performing uniform brightness and color across each display out-of-the-box. After calibration, these displays offer an industry-leading local uniformity of more than 90 percent across 25 (5x5) areas of each display screen, resulting in uniform color expression across the entire display. The calibration process also enables the displays to offer a superior white balance difference of less than 300 degrees K.

In addition to rigorous factory calibration, users can manage brightness and color uniformity conveniently with Samsung Color Expert, a powerful free software program. Through these advanced color management solutions, the UDE Series video walls enable large-scale presentations to feature superior uniformity, consistency and performance for the ultimate in color expression.

Captivate Audiences through a Narrow Bezel and Optimized Panel Design
The enhanced panel quality of Samsung’s UDE-B video wall (available in 46- and 55-inch sizes) elevates visual messaging and content through a seamless image and superior clarity. Featuring an ultra-narrow 3.5mm bezel-to-bezel design format (2.3mm bezel on the left and top sides and 1.2mm bezel on the right and bottom sides), which is the slimmest bezel in the video wall industry, the display creates a virtually uninterrupted viewing experience to keep audiences focused on content rather than the display itself.

When exposed to a range of environmental conditions, video wall panels can run the risk of losing image quality due to distortion and irregular color presentation. To provide consistent display clarity uninterrupted message delivery in any operational environment, Samsung’s UDE-B video wall panels undergo rigorous performance testing. Each display features a reinforced panel that deters heat, weather and other stress-inducing conditions. As a result, Samsung’s superior panel prevents screen darkening, light leakage or any related deterioration in picture quality. Plus, an anti-glare panel to ensure messages reach relevant audiences with minimal distraction by light reflection – All these enhanced panel quality allows the long term delivery of brilliant contents and the ultimate viewing experience

Achieve UHD Picture Quality without Additional Devices through Industry-Leading Technology
With an increase in screen size, content resolution becomes even more important to deliver impactful content. As the industry’s first video walls to feature integrated DisplayPort (DP) 1.2 and HDMI ports, Samsung’s UDE-B Series video walls, UDE-B, can display Ultra-High Definition (UHD) contents across video wall configurations as large as 5x5 without the purchase of additional expensive devices. In comparison to conventional video walls that typically require added equipment and only accommodate up to a 2x2 arrangement, the UDE-B Series’ UHD presentation represents a sharp improvement. By supporting High-Bandwidth Content Protection (HDCP) daisy chains, the UDE-B Series video walls also can display UHD content, such as live TV or Blu-Ray discs, without having to purchase additional equipment, minimizing the cost of deploying multiple displays as part of large-scale promotional signage or informational presentations.

High-Performing Display Readability and Durability for your Business Environment
Samsung’s UDE-B Series video walls deliver a continuously immersive and engaging viewing experience through high-performing readability and durability. Designed for 24/7 continuous operation in challenging environments, the UDE-B Series video walls operate at the speed of your business without losing performance or display quality. The displays offer 500 nit brightness to broadcast vivid, highly legible images and visual messaging in various lighting conditions.
The combination of these embedded design benefits makes the UDE-B Series video walls ideal for content and information delivery in usage environments that require enhanced readability, such as transportation terminals, shopping malls, office lobbies and control rooms.

A Slim, Easily Configurable Wall Mount Adaptive to your Business Needs
Samsung’s versatile UDE-B Series video walls come equipped with a range of user-friendly features to ensure a seamless installation complementary to your specific operational needs. Featuring the same dimension with a video wall, the users can simply install the mount first and fit into the video wall, without spending time to measure dimension of wall mount and calculate the gapThe displays come with an industry-leading slim, 39mm depth video wall mount for easy installation and calibration to hold each display in place without distracting viewers. The mount system offers three-dimensional axis tuning, including x-axis (up-and-down with rotational screws); y-axis (left and right with rail movement); and z-axis (push and pull pop-up capability), for effortless alignment of individual displays to form a continuous, gap-free video wall. This wall mount dimensional consistency and easy adjustability prevents users from having to measure distances when setting up each display, while also eliminating the need to dismantle the entire video wall should one specific section need adjustment
