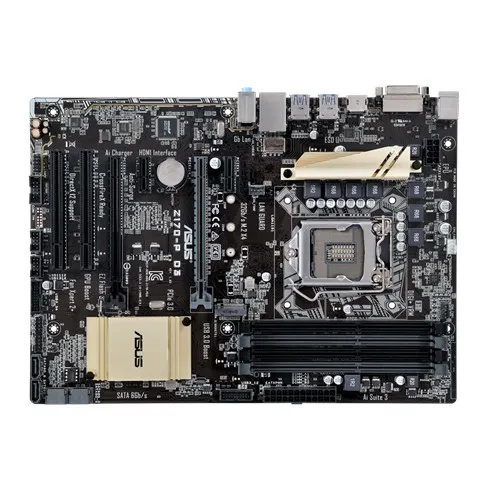

Z170-P D3S1151 Z170 ATX

Z170-P D3S1151 Z170 ATX

Valmistaja: ASUS
ID: 90MB0LV0-M0EAY0
Tuote ei ole saatavilla
Tätä tuotetta ei valmisteta enää tai sitä ei ole tällä hetkellä saatavilla.
Tuotetiedot
Kuvaus
Myymäläsaatavuus
Toimitus
Hinnan muutokset
Prosessori
SuoritinvalmistajaIntel
Yhteensopivat prosessoritIntel® Celeron®, Intel® Pentium®
Prosessorin kantaLGA 1151
Muisti
Sisäinen enimmäismuisti64 GB
Non-ECCcheckmark
Tuetut muistin kellotaajuudet1333,1600,1866,2000,2133,2200,2400,2666,2800,2933,3000,3100 MHz
Tuetut muistityypitDDR3
MuistikanavatDual-channel
Unbuffered memorycheckmark
Muistipaikkojen tyyppiDIMM
muistipaikkojen määrä4
Paino ja mitat
Tuotteen leveys305 mm
Tuotteen syvyys218 mm
Verkko
Ethernet LANcheckmark
LAN-kontrolleriRealtek 8111GR
Ethernet-liitännän tyyppiGigabitti Ethernet
Sisäinen I/O
USB 2.0-liittimet2
S/PDIF out -liitincheckmark
CPU-tuuletinliitincheckmark
COM-liitinten määrä1
ATX-virtaliitin (24-pin)checkmark
EATX-virtaliitinten määrä1
Kotelotuulettimien liitinmäärä2
Etupaneelin ääniliitincheckmark
TPM-liitincheckmark
EPS virtaliitin (8-pin)checkmark
USB 3.2 Gen 1 (3.1 Gen 1) liittimet2
SATA III-liittimiä4

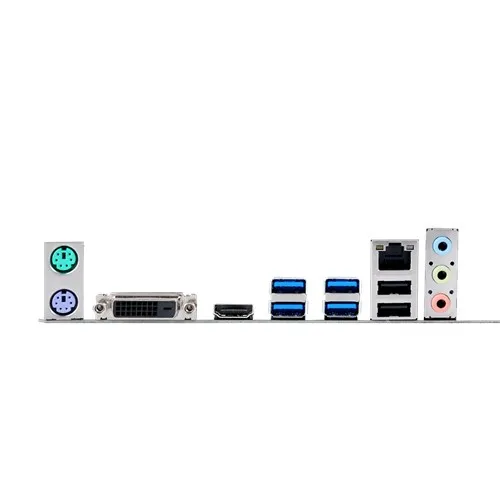

Takapaneelin I/O-portit
PS/2-porttien määrä2
USB 2.0 -porttien määrä2
Ethernet LAN (RJ-45) -portit1
Kuulokelähdöt1
Mikrofonitulocheckmark
DVI-D -portteja1
HDMI-porttien lukumäärä1
USB 3.0 (3.1 Gen 1) A-tyypin porttien määrä4
Tallennustilan ohjaimet
RAID-tasot1,5,10
Tuetut tallennusasemaliitännätSATA,SATA III
Laajennuspaikat
PCI-korttipaikkoja2
PCI Express x1 (Gen 3.x)-paikat2
PCI Express x16 (Gen 3.x)-paikat2
M.2 (M) paikkojen määrä1
BIOS
BIO- muistin koko16 Mbit
BIOS-tyyppiUEFI AMI
ACPI-versio5.0
Clear CMOS jumpercheckmark
Suorittimen erityispiirteet
Intel® Extreme Memory Profile (XMP)checkmark
Ominaisuudet
Emolevyn piirisarjaIntel Z170
Emolevyn muototekijäATX
Äänilähdön kanavat7.1 kanavaa
Virtalähteen malliATX
Emolevyn piirisarjan perheIntel
Komponentti (tuotteelle)PC
EAN4712900120790
Takuu3 vuotta
Source: Icecat.biz

Dependable Stability
Advanced Hardware Safeguards
Industry-leading 5X Protection II employs the finest components, excellent circuit design, and exacting standards to guarantee quality and long-term durability of your motherboard with all-round protection. For you, that means exceptional protection and stability for your build — the result of decades of engineering experience from the world's leading motherboard brand.

LANGuard
Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.

Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

ESD Guards
Electrostatic discharge (ESD) can happen suddenly, and its damaging effects are easily underestimated. ASUS ESD Guards are tested to very high standards, capable of up to +/- 10kV for air discharge and +/-6kV for contact discharge. We employ an active protective circuit design to guard your system against electrostatic interference and damage, providing greater component longevity.

Superb Performance
Media-acclaimed UEFI BIOS
The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.

Ultrafast Transfer Speed
M.2
With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbit/s data-transfer speeds. It is the perfect choice for an operating system or application drive, making your whole PC or professional apps work as fast as possible.

Instant front-panel USB 3.0 Experience
We've put USB 3.0 right where you need it — four super-speed ports on the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, so no more back-breaking contortions in the hunt for hard-to-reach rear ports!

Gaming Audio
Gear up! Win the battlefield
Beautiful LED-illuminated trace paths brighten your build and highlight noise-isolated, precision-shielded, interference-eliminated onboard audio like you've never before experienced!

Easy PC DIY
Safe motherboard mounting
Component-free areas to minimize damage risk
Fitting your ASUS motherboard is now safer than ever. The comprehensive component-free ‘safe zones' around every case-mounting hole minimizes the risk of damage and short circuits caused by contact — so you'll assemble your PC with total confidence!

Q-Slot
Effortless PCI Express component removal
The large winged clip is easy to reach and easy to operate. Just press the Q-Slot clip lightly, and graphics card just pop out. Installing or removing even the biggest graphics cards is no sweat!

Optimized Cooling
Fan Xpert 2+
Advanced fan controls
With onboard thermal sensors and hardware-level 4-pin/3-pin PWM/DC mode detection, Fan Xpert 2+ makes sure every fan achieves the best balance of cooling performance and low noise!
- Auto-Tuning Mode: Scans and detects all fan characteristics for single-click customization.
- Extreme Quite Mode: Reduces CPU fan speed to below the default minimum, for extra-quiet operation and power savings during light loads.
- RPM Fixed Mode: Lowers noise levels to near-0dB silence, allowing to you fix the fan speed.

One-Stop Control
AI Suite 3
One-stop access to innovative ASUS features
ASUS AI Suite 3 offers a brand-new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities.

Intel CPU and chipset features
Intel® Z170 Express Chipset
Intel® Z170 Express is a single-chipset design that supports 6th-generation Intel LGA1151 Core™ i7/Core i5/Core i3/Pentium®/Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, Z170 provides a maximum ten USB 3.0 ports, six SATA 6Gbit/s ports, 32Gbit/s M.2 and PCIe 3.0 lane speed support for faster data retrieval. Intel Z170 Express also supports integrated-graphics (iGPU) functions, so you'll enjoy the very latest Intel integrated graphics performance.

Ready for 6th-generation Intel LGA1151 Core i7/Core i5/Core i3/Pentium/Celeron processors
This motherboard supports 6th-generation Intel Core i7/i5/i3/Pentium/Celeron processors in the LGA1151 package, with graphics, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, two-channel (4-DIMM) DDR3L memory and 16 PCI Express 3.0/2.0 lanes for great graphics performance.
