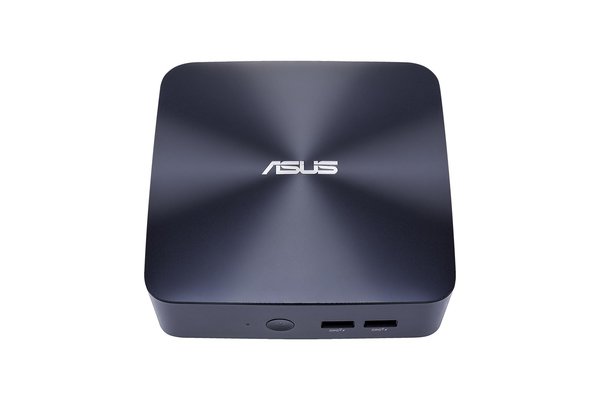

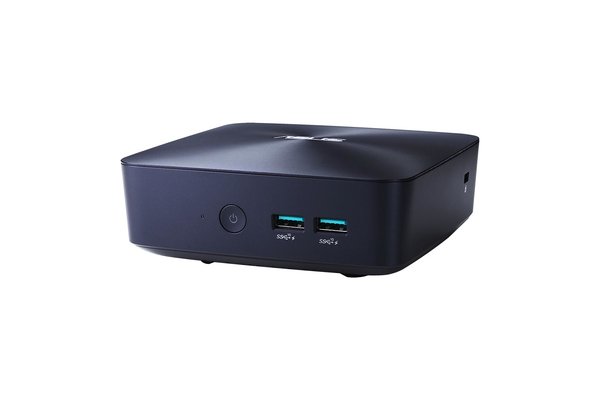

Asus VIVO-Mini UN68U-M008Z i7-8550U Intel HD 620 8GB 256GB SSD m2, Win 10 Home

Valmistaja: ASUS
ID: 90MS0171-M00080
Tuote ei ole saatavilla
Tätä tuotetta ei valmisteta enää tai sitä ei ole tällä hetkellä saatavilla.
Tuotetiedot
Kuvaus
Myymäläsaatavuus
Toimitus
Hinnan muutokset
Tekniset tiedot
Laitteen tyyppiSSD
Prosessori
Prosessorimallii7-8550U
Asennettujen prosessorien lukumäärä1
Prosessorin litografia14 nm
SuoritinperheIntel Core i7
Prosessorin kantaBGA 1356
KellotusY0
Prosessorin ytimet4
Järjestelmän väylänopeus4 GT/s
Prosessorin säikeet8
PCI Express korttipaikan versio3.0
Prosessorin käyttötilat64-bit
Suorittimen boost-taajuus4,00 GHz
Prosessorin välimuisti8 MB
Tjunction100 °C
VäylätyyppiOPI
PCI Express kokoonpanot1x2+2x1,1x4,2x2,4x1
Prosessorin taajuus1,80 GHz
Thermal Design Power (TDP)15 W
Prosessorin koodinimiKaby Lake R
PCI Express -väylien enimmäismäärä12
Muunneltava TDP-down -taajuus800 MHz
Prosessorin tukema suurin sisäinen muisti32 GB
Prosessorin tukemat muistityypitDDR4-SDRAM
Prosessorin tukemat muistin kellonopeudet2133,2400 MHz
Prosessorin tukema muistin kaistanleveys (maks.)34,1 GB/s
Prosessorin tukemat muistikanavatDual
Prosessori tukee ECC:täcross
Muisti
Sisäisen muistin tyyppiDDR4-SDRAM
Sisäinen enimmäismuisti32 GB
Muistin kellotaajuus2400 MHz
Sisäinen muisti8 GB
Optinen asema
Optisen aseman tyyppiN
Liitettävyys
Ethernet LAN (RJ-45) -portit1
Mikrofonitulocross
DC-tulojakkicheckmark
DVI-portticross
HDMI-porttien lukumäärä1
DisplayPort-portteja1
Kuuloke-/mikrofoniyhdistelmäportticheckmark
USB 3.2 (3.1 sukupolvi 1) A-tyypin porttien määrä2
USB 3.2 Gen 2 (3.1 Gen 2) A-tyypin porttien määrä2
Paino ja mitat
Paino700 g
Tuotteen korkeus52 mm
Tuotteen leveys131 mm
Tuotteen syvyys131 mm
Virranhallinta
Virtalähde65 W
Verkko
Wi-Fi-standardit802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
Kaapelitekniikka10/100/1000Base-T(X)
Bluetooth-versio4.2
Ethernet LANcheckmark
Bluetoothcheckmark
Wi-Ficheckmark
Ethernet LAN -datanopeudet10,100,1000 Mbit/s
Wi-Fi-standardiWi-Fi 5 (802.11ac)
Tallennusväline
Levyn kapasiteetti256 GB
Yhteensopivat muistikortitMMC,SD,SDHC,SDXC
Kokonaistallennuskapasiteetti256 GB
Integroitu kortinlukijacheckmark
Asennettujen SSD:iden lukumäärä1
TallennusmediaSSD
Ohjelmisto
Käyttöjärjestelmä asennettuWindows 10 Home
Käyttöjärjestelmän arkkitehtuuri64-bit
Pakkauksen sisältö
Näyttö sisältyycross
Suunnittelu
Kaapelilukkopaikkacheckmark
Tuotteen väriSininen
Kaapelilukon aukkotyyppiKensington
Grafiikka
Sisältyvän näytönohjaimen malliIntel® UHD Graphics 620
Erillisen näytönohjaimen malliEi saatavilla
Sisäinen näytönohjaincheckmark
Sisäisen näytönohjaimen perustaajuus300 MHz
Sisäisen näytönohjaimen dynaaminen taajuus (maks.)1150 MHz
Sisäisen näytönohjaimen tunnus0x5917
Sisäisen näytönohjaimen enimmäismuisti32 GB
Tuettujen näyttöjen lukumäärä (sisäinen näytönohjain)3
Sisäisen näytönohjaimen DirectX-versio12.0
Sisäisen näytönohjaimen OpenGL-versio4.4
Erillinen grafiikka-adaptericross
Suorittimen erityispiirteet
Tuetut ohjepaketitAVX 2.0,SSE4.1,SSE4.2
Intel® My WiFi -teknologia (Intel® MWT)checkmark
Intel® Identity Protection -teknologia (Intel® IPT)checkmark
Intel® Hyper-Threading -teknologia (Intel® HT Technology)checkmark
Intel® Turbo Boost -teknologia2.0
Intel® Quick Sync Video -teknologiacheckmark
Intel® InTru™ 3D -teknologiacheckmark
Intel® Clear Video HD -teknologia (Intel® CVT HD)checkmark
Intel® Flex Memory Accesscheckmark
Intel® AES New Instructions (Intel® AES-NI)checkmark
Enhanced Intel SpeedStep Technologycheckmark
Execute Disable Bitcheckmark
Joutotilatcheckmark
Thermal Monitoring -teknologiacheckmark
Intel® Trusted Execution -teknologiacross
CPU-kokoonpano (maks.)1
Intel® Enhanced Halt Statecheckmark
Intel® Clear Video Technology MID (Intel® CVT for MID)checkmark
Intel® VT-x, jossa Extended Page Tables (EPT)checkmark
Saatavilla olevat upotetut vaihtoehdotcross
Intel® TSX-NIcheckmark
Intel® 64checkmark
Intel® OS Guardcheckmark
Intel® Virtualization Technology for Directed I/O (VT-d)checkmark
Intel® Clear Video Technologycheckmark
Intel® Software Guard Extensions (Intel® SGX)checkmark
Intel® Virtualization Technology (VT-x)checkmark
Prosessorin pakkauskoko42 x 24 mm
Conflict Free -prosessoricheckmark
ARK ID -prosessori122589
Suorituskyky
TuotetyyppiMini PC
EAN4712900896077
Takuu2 vuotta
Source: Icecat.biz

Desktop performance, miniaturized
ASUS VivoMini UN68U packs the capabilities of a full-fledged business PC into a compact and lightweight chassis. It features the latest 8th Generation Intel® Core™ processor, a flexible dual-storage design, blazing-fast M.2 PCIe 3.0 x4 NVMe data transfers, and lots of high-speed, convenient connectivity options. Even with all this power VivoMini UN68U is a quiet performer, with a low-speed-fan design that keeps noise levels to a minimum. It also benefits from the pre-installed ASUS Business Manager software, to help small business owners with system management and maintenance.

VivoMini UN68U is the ideal solution for offices, and it's also great for digital signage or information kiosks. The ‘bare-bones'* version of the machine is perfect for those who need to choose their own operating system, Wi-Fi card and storage options, and it offers an easy-access design that allows for simple, hassle-free hardware upgrades.

Uncompromising performance
VivoMini UN68U is available with the latest 8th Generation Intel Core i7,or i5 processor, delivering a 40% performance increase compared to previous-generation processors.* VivoMini UN68U also has faster, more-efficient memory, with the DDR4 2400MHz complement running at up to 1.5X quicker and while using 20% less energy compared to DDR3 1600MHz memory. All this provides you with fast and efficient performance for daily multitask computing. Whether you're running business applications, performing online research, or working with Microsoft Office apps, VivoMini UN68U takes it all in stride.

Multi-display productivity
VivoMini UN68U supports up to three independent displays though HDMI and DisplayPort++, providing the freedom to multitask across as much space as your work demands. And, of course, it's compatible with any modern monitor, HDMI TV or projector, so you'll never be short of display options.

Flexible dual-storage design

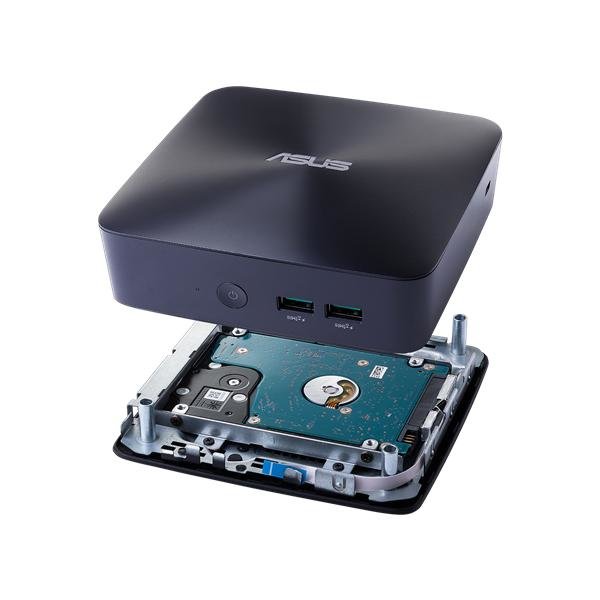

VivoMini UN68U features a dual-storage design for maximum flexibility. It can with a single high-speed M.2 SSD, a single 2.5-inch HDD or 2.5-inch SSD, or an M.2 SSD in combination with either a 2.5-inch HDD or a 2.5-inch SSD — while the bare-bones model allows you to create whatever storage solution you need.

Blazing-fast NVM Express support
Built-in support for M.2 PCIe 3.0 x4 gives VivoMini UN68U the speed and performance you crave in a compact PC. NVM Express® (NVMe) SSDs deliver data-transfer speeds of up to 32Gbps, making them the perfect choice for an operating system or application drive — so you spend less time waiting and more time getting work done.

Faster storage with Intel Optane memory
VivoMini UN68U can be optionally specified with Intel Optane™ memory for unmatched system performance. Intel Optane memory technology is a smart and adaptable system accelerator that improves responsiveness to enable up to 24X-faster HDD access speeds, 1.5X-faster in common communications usage, and 2.5X-faster file searches. VivoMini UN68U's high-capacity HDD, coupled with Intel Optane, provides an optimal combination of large storage capacity and high-speed data access.

Quiet operation
VivoMini UN68U is remarkably quiet, thanks to optimized low-speed-fan settings that keep noise levels down to just 23dB at idle — as hushed as office whispers. And it doesn't get much louder at full load either, generating just 38dB of noise. That's 36% below the industry standard, allowing you to concentrate on your work without the distraction of background noise.

Built for the business world
VivoMini UN Series has a Good Design Award-winning design that features smooth, rounded edges and the iconic Zen-inspired ASUS finish. Available in glossy Midnight Blue, the chassis of VivoMini UN68U is just 131 x 131 x 52mm and can be VESA-mounted on the back of a display to create a tidy, all-in-one workstation.

Customization made easy
Each business has its own IT infrastructure requirements and challenges. VivoMini UN68U lets you tailor solutions for your specific organizational needs. You can even choose whichever operating system, Wi-Fi card or storage options you need — and making it easy to upgrade whenever you want.

Fast and convenient connectivity

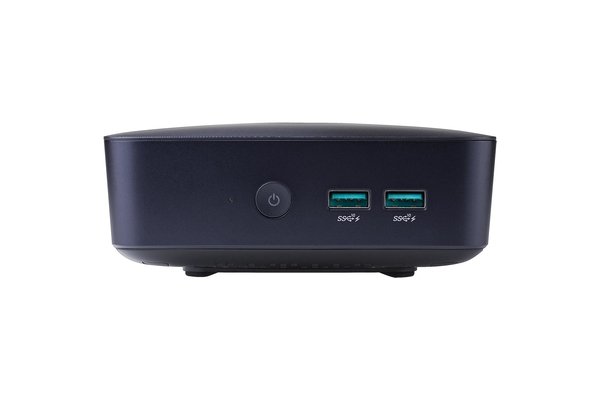

VivoMini UN68U features two easy-reach front-mounted USB 3.1 Gen 2 ports with fast-charge technology, so your mobile devices will charge in half the time. In addition, VivoMini UN68U offers convenient connectivity options, including two USB 3.1 Gen 1 ports, a 4-in-1 card reader, HDMI and DisplayPort++.

Corporate Stable Model (CSM)
The CSM program is an initiative designed to provide businesses with stable product supply and enhanced aftersales support. Each CSM mini PC purchase entitles the customer to the ASUS Control Center IT-management software suite (CSM Edition, a $60 value)* that provides comprehensive control and monitoring. ASUS CSM products also include a stable roadmap and assured 36-month supply availability to ensure customers need not worry about material-supply gaps or extended supply.

Fully-tested for extreme reliability, wide compatibility and assured safety
Years of engineering expertise have gone into each VivoMini UN68U, with each unit being subjected to a series of reliability and quality tests to ensure they meet our exacting standards. It's engineered to cope with temperature extremes and is robust enough to withstand bumps and knocks during shipping.

- Windows 10 Home or other editions available Full-fledged desktop performance with the latest 8th Gen Intel® Core™ i7 or i5 Kaby Lake R processors & DDR4 2400MHz support Dual-storage design for additional storage capacity and flexibility NVM Express® support for blazingly fast SSD data transfers of up to 32Gbps Two easy-access front-mounted USB 3.1 Gen 2 ports with fast USB charging High-capacity HDD and Intel® Optane™ memory acceleration for high-speed data performance Quiet mini PC with energy-efficient performance — even under demanding loads ASUS Business Manager software for routine maintenance and servicing Lightning-fast 802.11ac Wi-Fi, with 100GB of free ASUS WebStorage space VESA-mount compatible for a tidy, clutter-free workstation Ultra-compact Good Design Award-winning design with a Zen-inspired spun-metal-effect finish and weighing less than 700g
