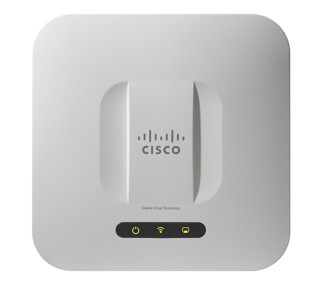

Cisco Small Business WAP561 - Langattoman verkon liityntäpiste - 802.11a/b/g/n - Kaksoistaajuus
Tätä tuotetta ei valmisteta enää tai sitä ei ole tällä hetkellä saatavilla.
Liitettävyys | |
Ethernet LAN (RJ-45) -portit | 1 |
DC-tulojakki | |
Paino ja mitat | |
Paino | 685 g |
Tuotteen korkeus | 25 mm |
Tuotteen leveys | 230 mm |
Tuotteen syvyys | 230 mm |
Virranhallinta | |
Virrankulutus | 1,712 W |
Ympäristöolosuhteet | |
Käytön suhteellinen kosteus (H-H) | 10 - 85% |
Varastointilämpötila | -20 - 70 °C |
Käyttölämpötila (T-T) | 0 - 40 °C |
Säilytysympäristön kosteus | 5 - 90% |
Protokollat | |
Hallintaprotokolla | SNMP v3, Bonjour |
Tuetut verkkoprotokollat | IPv4, IPv6, NTP, TCP/IP |
Mediapääsyprotokolla | HTTP, HTTPS |
DHCP-asiakas | |
Suojaus | |
Tietoturva-algoritmit | 802.1x RADIUS, SSID, WDS, WPA, WPA2, WPS |
Hallintaominaisuudet | |
Verkkosivupohjainen hallinta | |
Kytkin tyyppi | Hallittu |
Päivitettävä Firmware | |
Pakkauksen sisältö | |
Sisältää johdot | LAN (RJ-45) |
Antenni | |
Antennin vahvistustaso (maks.) | 5 dBi |
Antennien määrä | 10 |
Suunnittelu | |
Sisäinen | |
Sertifiointi | UL, CAN/CSA, IEC, EN, FCC, RSS, AS/NZS, ICES |
Kaapelilukkopaikka | |
LED-merkkivalot | LAN, Teho, WLAN |
Uudelleenkäynnistyspainike | |
Kaapelilukon aukkotyyppi | Kensington |
Suorituskyky | |
Sisäinen muisti | 64 MB |
Flash-muisti | 32 MB |
Yhteensopivat käyttöjärjestelmät | Linux OS |
Ominaisuudet | |
Tiedonsiirron enimmäisnopeus | 1000 Mbit/s |
Modulointi | OFDM |
Vastaanottimen herkkyys | 2.4 GHz 802.11b/g 1 Mbps: -91 dBm 11 Mbps: -85 dBm 6 Mbps: -86 dBm 54 Mbps: -69 dBm 802.11n/20 MHz MCS0: -86 dBm MCS7: -70 dBm MCS8: -85 dBm MCS15: -68 dBm 802.11n/40 MHz MCS0: -84 dBm MCS7: -66 dBm MCS8: -83 dBm MCS15: -65 dB 5 GHz 802.11a 6 Mbps: -82 dBm 54 Mbps: -67 dBm 802.11n/20 MHz MCS0: -83 dBm MCS7: -68 dBm MCS8: -82 dBm MCS15: -66 dBm 802.11n/40 MHz MCS0: -82 dBm MCS7: -64 dBm MCS8: -81 dBm MCS15: -62 dBm |
Taajuuskaista | 2.4, 5 GHz |
Käyttäjien määrä | 64 käyttäjä (t) |
Verkkostandardit | IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
Langattoman LAN:in datansiirtonopeus (maksimi) | 450 Mbit/s |
Quality of Service -tuki | |
Ethernet LAN -datanopeudet | 10,100,1000 Mbit/s |
VLAN-tuki | |
2,4 GHz | |
5 GHz | |
EAN | 882658485657 |
Takuu | 3 vuotta |
Source: Icecat.biz |
High-Performance, Easy-to-Deploy, Secure Business-Class Wireless-N Connectivity
Highlights
- Provides cost-effective selectable or concurrent dual-radio Wireless-N connectivity for high capacity and additional users.
- Gigabit Ethernet LAN interfaces with PoE enable flexible installation.
- SmartSignal Antenna technology optimizes wireless coverage and reception.
- Captive portal enables highly secure guest access with customized roles and rights.
- Single Point Setup requires no controller, for easy cost-effective deployment of multiple access points.
- Works right out of the box with easy installation and simple web-based configuration and wizard.
In today's dynamic business environment, employees are becoming more mobile and collaborative than ever. To stay productive, they need dependable, business-class access to network applications throughout the office. The Cisco Small Business 500 Series Wireless Access Points provide a simple, cost-effective way to extend secure, high-performance mobile networking to your employees and guests, so they can stay connected anywhere in the office. This flexible solution lets you connect dozens of employees, and can scale to accommodate additional users and changing business needs.
The Cisco 500 Series access points use selectable or concurrent dual-band radios for improved coverage and user capacity. Gigabit Ethernet LAN interfaces with Power over Ethernet (PoE) support flexible installation and reduce cabling and wiring costs. Intelligent quality-of-service (QoS) features let you prioritize bandwidth-sensitive traffic for voice over IP (VoIP) and video applications. SmartSignal Antenna technology enables you to extend the reach of your wireless network by optimizing coverage, reception, and performance.
To provide secure guest access to visitors and other users, the Cisco 500 Series access points support a captive portal with multiple authentication options and the ability to configure rights, roles, and bandwidth. A customized guest login page lets you present a welcome message and access details, and reinforces your brand with company logos.
The Cisco 500 Series access points are easy to set up and use, with intuitive wizard-based configuration to get you up and running in minutes. An attractive design with flexible mounting options enables the access points to smoothly blend into any small business environment.
To enhance reliability and safeguard sensitive business information, the Cisco 500 Series access points support both Wi-Fi Protected Access (WPA) Personal and Enterprise, encoding all your wireless transmissions with powerful encryption. In addition, 802.1X RADIUS authentication helps keep unauthorized users out.
Designed to scale smoothly as your organization grows, the access points feature controllerless Single Point Setup that simplifies the deployment of multiple access points without additional hardware. With the Cisco 500 Series access points, you can extend business-class wireless networking to employees and guests anywhere in the office, with the flexibility to meet new business needs for years to come.
