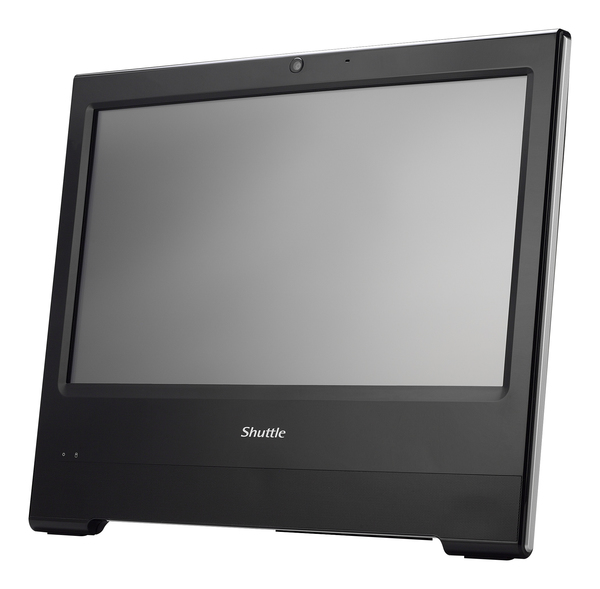

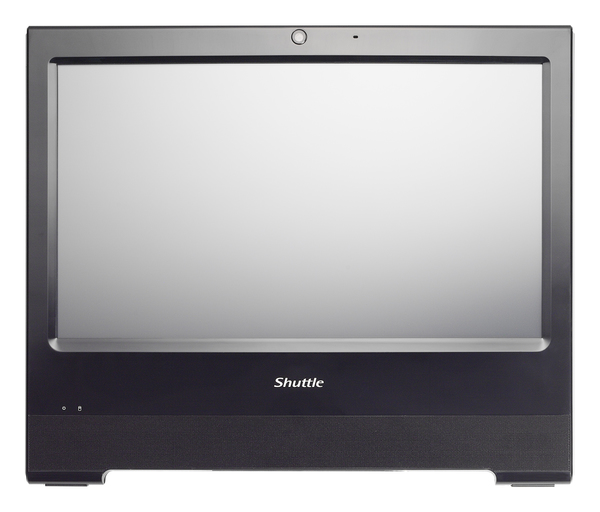

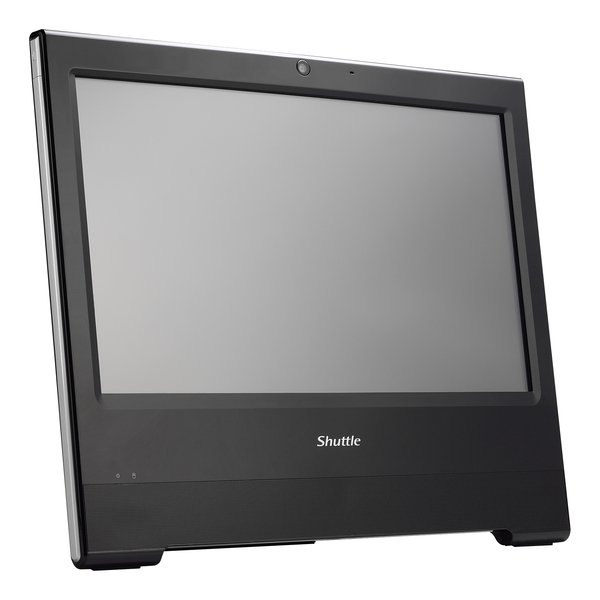

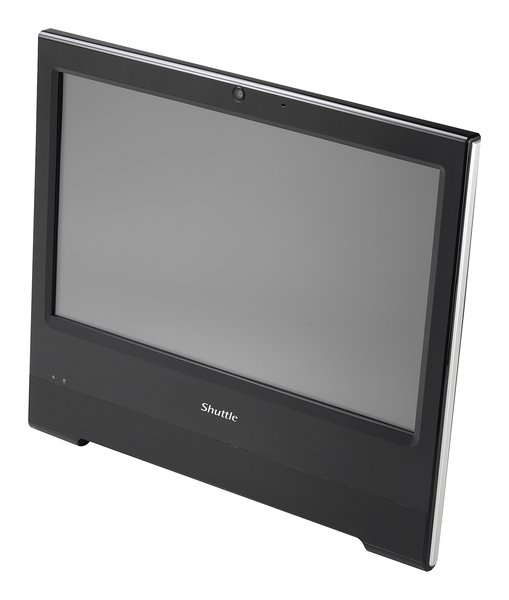

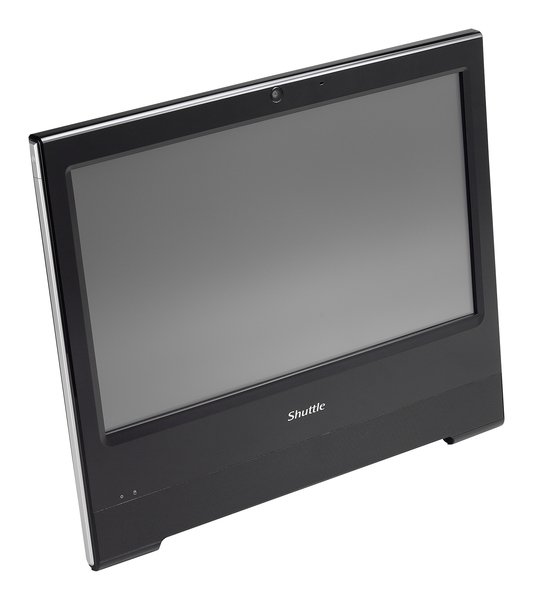

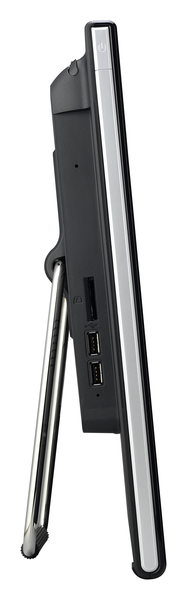

Shuttle X50 v6U3 Barebone AIO 15,6" touch, Intel i3 7100U, svart

Valmistaja: SHUTTLE
ID: PAB-X50V6U302
Tuote ei ole saatavilla
Tätä tuotetta ei valmisteta enää tai sitä ei ole tällä hetkellä saatavilla.
Tuotetiedot
Kuvaus
Myymäläsaatavuus
Toimitus
Hinnan muutokset
Prosessori
Prosessorimallii3-7100U
Prosessorin litografia14 nm
SuoritinperheIntel Core i3
Prosessorin ytimet2
Suorittimen säikeiden määrä4
Sisäänrakennettu prosessoricheckmark
Prosessorin taajuus2,40 GHz
Thermal Design Power (TDP)15 W
Muisti
Sisäinen enimmäismuisti32 GB
Muistin jännite1.2 V
Tuetut muistin kellotaajuudet2133 MHz
Tuetut muistityypitDDR4
MuistikanavatKaksinainen
Muistipaikkojen tyyppiSO-DIMM
muistipaikkojen määrä2
Liitettävyys
USB 2.0 -porttien määrä4
Ethernet LAN (RJ-45) -portit1
Kuulokelähdöt1
DC-tulojakkicheckmark
VGA (D-Sub) -porttien määrä1
HDMI-porttien lukumäärä1
HDMI-versio1.4
USB 3.0 (3.1 Gen 1) A-tyypin porttien määrä2
Paino ja mitat
Paino3,6 kg
Pakkauksen paino4,8 kg
Tuotteen korkeus327 mm
Tuotteen leveys391 mm
Tuotteen syvyys42 mm
Virranhallinta
Virtalähteen tyyppiUlkoinen AC-adapteri
Virtalähteiden lukumäärä1
Virtalähteen tuottojännite19 V
Virtalähteen tuottovirta3,42 A
Virtalähde65 W
AC-syöttötaajuus50 - 60 Hz
AC-syöttöjännite100 - 240 V
Ympäristöolosuhteet
Suhteellinen kosteusalue10 - 90%
Käyttölämpötila (T-T)0 - 40 °C
Verkko
Wi-Fi-standardit802.11b,802.11g,Wi-Fi 4 (802.11n)
VerkkotoiminnotGigabit LAN, WLAN
Ethernet LANcheckmark
LAN-kontrolleriIntel® I211
Wi-Ficheckmark
Tallennusväline
Yhteensopivat muistikortitSD,SDHC,SDXC
Integroitu kortinlukijacheckmark
Tallennuslaitteen liitäntäSerial ATA III
Tuettujen tallennusasemien lukumäärä1
Tuetut tallennusasemien koot2.5"
Tuetut tallennusasematyypitKiintolevy, SSD-levy
Pakkauksen sisältö
Kuvasuhde16:9
Näytön halkaisija39,6 cm (15.6")
Virtalähde mukanacheckmark
Näytön erottelutarkkuus1366 x 768 pikseliä
Pika-aloitusopascheckmark
Virtajohto mukanacheckmark
Kosketusnäyttöcheckmark
Ajurit mukanacheckmark
Laajennuspaikat
PCI Express korttipaikan versio3.0
Suunnittelu
SertifiointiCE, FCC, BSMI, RCM, VCCI, R&TTE, RoHS, ErP Lot3
TurvallisuusCB, BSMI, ETL
AlustatyyppiAll-in-One
Energy Star -sertifioitucheckmark
Kaapelilukkopaikkacheckmark
LED-merkkivalotHDD, Teho
Tuotteen väriMusta
Jäähdytyksen tyyppiAktiivinen
TuotetyyppiPC barebone
Kaapelilukon aukkotyyppiKensington
Grafiikka
NäytönohjainHD Graphics 620
Näytönohjaimen perheIntel
Sisäinen näytönohjaincheckmark
Suorittimen erityispiirteet
Intel® My WiFi -teknologia (Intel® MWT)checkmark
Intel® Smart Response -teknologiacheckmark
Intel® Hyper-Threading -teknologia (Intel® HT Technology)checkmark
Intel® Turbo Boost -teknologiacross
Intel® Quick Sync Video -teknologiacheckmark
Intel® InTru™ 3D -teknologiacheckmark
Intel® Wireless Display (Intel® WiDi)checkmark
Intel® Clear Video HD -teknologia (Intel® CVT HD)checkmark
Intel® Insider™checkmark
Intel® Flex Memory Accesscheckmark
Intel® AES New Instructions (Intel® AES-NI)checkmark
Enhanced Intel SpeedStep Technologycheckmark
Execute Disable Bitcheckmark
Idle Statescheckmark
Thermal Monitoring Technologiescheckmark
Intel® Trusted Execution -teknologiacross
Intel® VT-x, jossa Extended Page Tables (EPT)checkmark
Liitettyjen vaihtoehtojen määrächeckmark
Intel® Small Business Advantage (Intel® SBA)checkmark
Intel® TSX-NIcross
Intel® Secure Keycheckmark
Intel® 64checkmark
Intel® Stable Image Platform Program (SIPP)cross
Intel® OS Guardcheckmark
Intel® Virtualization Technology for Directed I/O (VT-d)checkmark
Intel® Clear Video Technologycheckmark
Suorituskyky
Emolevyn piirisarjaIntel® SoC
Yhteensopivat prosessoritIntel® Celeron®, Intel® Pentium®
Prosessorin kantaBGA 1356
Käyttöjärjestelmä asennettucross
Tuettujen prosessorien lukumäärä1
Windows-käyttöjärjestelmätukiWindows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64
Linux-käyttöjärjestelmätukicheckmark
EAN887993001074
Source: Icecat.biz

The Shuttle XPC all-in-one X50V6U3 is the latest addition to the X50 Series and is powered by Intel's Core i3-7100U processor. The all-new 14 nm Kaby Lake architecture helps improve on power consumption and computing power. Thanks to its passive cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.

Fanless and whisper-quiet
The fanless technology used in this PC means it is incredibly quiet. Doing away with these mechanical components also reduces the number of wearing parts, making the machine more durable and stable.

Low energy consumption
Thrift is a virtue. In terms of power consumption this Mini-PC sets an example. It is not just good for the environment but for your pocket, too.

Multiformat card reader
At last – no more searching for missing digital camera leads. Simply insert the memory card and you can access all stored photos and videos immediately.

Anti-theft protection
The Kensington Lock forms part of the anti-theft system. As with many other Notebooks, this Mini-PC can also be safely locked, ensuring long-term enjoyment from your Shuttle product.

Inbuilt stereo speakers
Two powerful speakers are elegantly integrated into the design and deliver astonishingly good sound quality. And when more power is needed, you can attach external speakers via audio jacks.

Suitable for Linux operating systems
This model was successfully tested with openSUSE Linux by Novell. All machine functions worked without problem immediately after installation.

Connections without all those annoying cables
Data is transferred by WLAN completely without cables. Accessing the Internet and local network resources (e.g. printers) is now child's play when within range of an access point/hotspot.

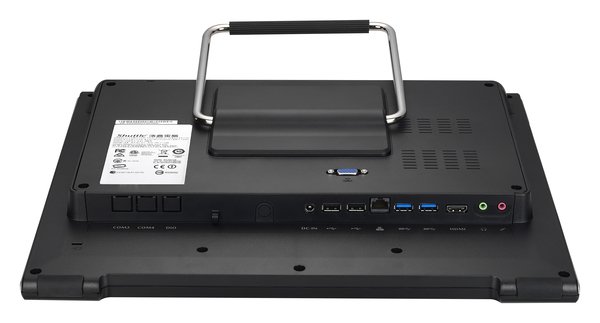

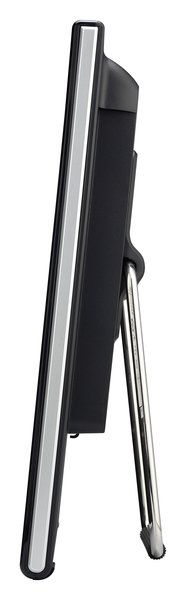

Solid base
Folded 180° vertically, the chrome anti-slip pedestal can be used as a carrying handle. A particularly clever solution from Shuttle's engineers.

Keeping in touch
The revolutionary touchscreen allows this Mini-PC to be controlled without the use of mouse or keyboard. Touching the screen with a finger or stylus takes the place of the mouse. And with a virtual keyboard, entries can be made directly on the screen.

Securely attached

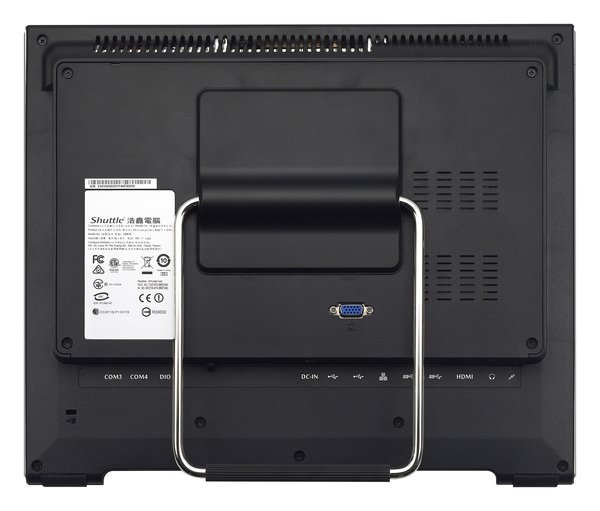

The practical VESA mounting surface on the back of the device enables it to be attached to monitor arms or wall mounts. The VESA format is standardised, making it suitable for most mounts.

Integrated Webcam
The inbuilt Webcam enables problem-free video telephony and video conferencing in high-quality megapixel format.

Fan-less external power supply
A highly effective external power supply provides the Shuttle Mini-PC with its energy. And since it works without a fan, it is completely noise-free.

Communication in the fast lane
The integrated gigabit LAN chipset opens up completely new possibilities for communication with no restriction on the speed of data transfer. Say goodbye to information bottlenecks, whether in the company network or for home Internet access.

Always-on Jumper
This machine is provided with a hardware solution to keep it permanently switched on (e.g. after a power outage). If you remove the jumper documented in the manual, the PC then starts as soon as the power supply is restored.

The fastest connection to external peripheral devices available to date
The USB 3.0 connectors of this model allow for data transfer of up to 5 Gbit/s (625 MB/s). This enables external devices such as USB hard disks to be connected and run at nearly the same speed as their internal siblings. USB 3.0 is downward compatible so that also devices of previous USB generations can be hooked up.

Just 2.5" HDDs
An extremely compact PC housing offers less space for drives, that's why this Mini-PC uses slimline 2.5-inch hard disks. The advantage of this is that there's less noise, less heat generated and reduced power consumption. However small hard disks in a small housing does not have to mean less memory. Modern 2.5" HDDs are every bit as good as their 3.5" brothers.

You can rely on SSD
This is where an energy-saving "Solid State Drive" should be used. This drive technology guarantees extremely short access times, the highest data transmission rates and considerably lower energy consumption compared to conventional hard disks. SSDs have no mechanical components at all, are therefore subject to less wear and tear and consequently benefit from a longer service life.

HDMI interface
Goodbye cable spaghetti! Modern flat-screen TVs and large-format TFT screens can be connected to this Mini-PC with just a single thin cable. Often the audio output is also transferred in brilliant quality via the HDMI cable.

Intel chipset inside
Play it safe with the reliable chipsets from the world's largest chip manufacturer. Intel chipsets have proven themselves over many years, have been presented with awards by the trade press and offer the best possible degree of compatibility.

The interface for the fastest of memory media
Internal drives to be used inside this Mini-PC can transfer data at a speed of up to 6 Gbit/s. Hard drives thus run significantly faster and brand-new media technologies such as SSDs can use their full potential. Be sure to look for SATA 6 Gbit/s.

Utilising mobile technology
An array of components from mobile devices are put to use in this Mini-PC. You can tell straight away by how quiet it is. The energy-saving technologies of the components used generate minimal heat, therefore additional fans are not required. The energy you save will soon be reflected in your electricity bills in the medium to long term.
