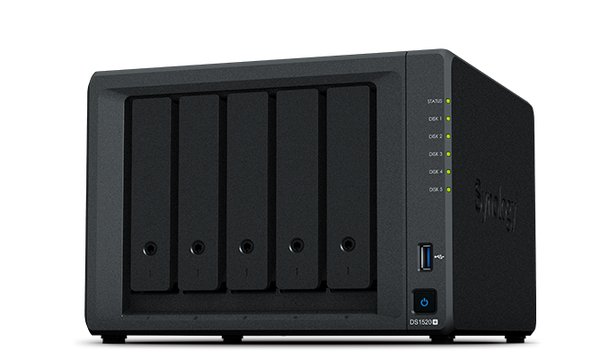

Synology DiskStation DS1520+, 5x kiintolevypaikkaa -verkkolevypalvelin
Prosessori | |
Prosessorimalli | J4125 |
Suoritinvalmistaja | Intel |
Prosessorin litografia | 14 nm |
Suoritinperhe | Intel Celeron |
Prosessorin kanta | BGA 1090 |
Prosessorin ytimet | 4 |
Suorittimen säikeiden määrä | 4 |
PCI Express korttipaikan versio | 2.0 |
Prosessorin käyttötilat | 64-bittinen |
Suorittimen boost-taajuus | 2.7 GHz |
Sisältyvän näytönohjaimen malli | Intel® UHD Graphics 600 |
Suorittimen välimuisti | 4 MB |
CPU kokoonpano (maks.) | 1 |
Tjunction | 105 °C |
PCI Express kokoonpanot | 1x4+1x2, 4x1, 2x1+1x2+1x2 |
Prosessorin taajuus | 2 GHz |
Thermal Design Power (TDP) | 10 W |
Prosessorin koodinimi | Gemini Lake Refresh |
Prosessorin tukema sisäisen muistin maksimi | 8 GB |
Prosessorin pakettikoko | 25 x 24 mm |
Muisti | |
Sisäisen muistin tyyppi | DDR4 |
Sisäinen muisti | 8 GB |
Liitettävyys | |
Ethernet LAN (RJ-45) -portit | 4 |
eSATA-porttien määrä | 2 |
USB 3.0 (3.1 Gen 1) A-tyypin porttien määrä | 2 |
USB-portti | |
Paino ja mitat | |
Paino | 2,62 kg |
Tuotteen korkeus | 166 mm |
Tuotteen leveys | 230 mm |
Tuotteen syvyys | 223 mm |
Virranhallinta | |
Virrankulutus | 36,6 W |
AC-syöttötaajuus | 50 - 60 Hz |
AC-syöttöjännite | 100 - 240 V |
Virtalähteen sijainti | Ulkoinen |
Virtalähdeyksikön (PSU) kapasiteetti | 120 W |
Ympäristöolosuhteet | |
Suhteellinen kosteusalue | 5 - 95% |
Varastointilämpötila | -20 - 60 °C |
Käyttölämpötila (T-T) | 0 - 40 °C |
Verkko | |
Ethernet LAN | |
Ethernet LAN -datanopeudet | 10,100,1000 Mbit/s |
Tallennusväline | |
Tuetut tiedostojärjestelmät | BTRFS, Fat, HFS+, NTFS, ext3, ext4 |
Kiintolevyn koko | 2.5/3.5" |
Tallennuslaitteen liitäntä | M.2 |
Tuettujen tallennusasemien lukumäärä | 4 |
Tuetut tallennusasemien koot | 2.5,3.5,M.2 |
Asennetut tallennusasemat | |
Suurin tuettu tallennuskapasiteetti | 108 TB |
Asennetun tallennusaseman tyyppi | |
Tuetut tallennusasematyypit | HDD & SSD |
Hot-swap asemat | |
Tuetut tallennusasemaliitännät | M.2 |
Sertifikaatit | |
Sertifiointi | EAC, VCCI, CCC, RCM, KC, FCC, CE, BSMI |
Pakkauksen sisältö | |
Sisältää johdot | AC |
Ulkoinen virtalähde | |
Muut ominaisuudet | |
ARK ID -prosessori | 197305 |
Suunnittelu | |
Alustatyyppi | Työpöytä |
Tuotteen väri | Musta |
Tuulettimien määrä | 2 tuuletin(ta) |
Jäähdytyksen tyyppi | Aktiivinen |
Tuulettimen halkaisija | 9,2 cm |
Tuulettimen halkaisija 2 | 9,2 cm |
Grafiikka | |
Sisältyvän näytönohjaimen perustaajuus | 250 MHz |
Sisältyvän näytönohjaimen dynaaminen taajuus (max) | 750 MHz |
Sisältyvän näytönohjaimen pursketaajuus | 750 MHz |
Sisältyvän näytönohjaimen ID | 0x3185 |
Sisältyvän näytönohjaimen maksimimuisti | 8 GB |
Tuettujen näyttöjen lukumäärä (sisäinen näytönohjain) | 3 |
Sisältyvän näytönohjaimen DirectX-versio | 12.0 |
Sisältyvän näytönohjaimen OpenGL-versio | 4.4 |
Suorittimen erityispiirteet | |
Intel® Identity Protection -teknologia (Intel® IPT) | |
Intel® Anti-Theft -teknologia (Intel® AT) | |
Intel® Smart Response -teknologia | |
Intel® Hyper-Threading -teknologia (Intel® HT Technology) | |
Intel® Turbo Boost -teknologia | |
Intel® Quick Sync Video -teknologia | |
Intel® AES New Instructions (Intel® AES-NI) | |
Enhanced Intel SpeedStep Technology | |
Execute Disable Bit | |
Idle States | |
Thermal Monitoring Technologies | |
Intel® VT-x, jossa Extended Page Tables (EPT) | |
Liitettyjen vaihtoehtojen määrä | |
Intel® Secure Key | |
Intel® 64 | |
Intel® OS Guard | |
UART | |
Intel® Virtualization Technology for Directed I/O (VT-d) | |
Suoritinyksikköjen määrä | 12 |
PCI Express väylien maksimimäärä | 6 |
Intel® Virtualization Technology (VT-x) | |
Prosessorin tukemat muistityypit | DDR4-SDRAM, LPDDR4-SDRAM |
Suorituskyky | |
Malli | NAS |
Melutaso | 20,8 dB |
Laitteen luokka | Koti & Kotitoimisto |
EAN | 4711174723706 |
Takuu | 3 vuotta |
Source: Icecat.biz |
Scalable NAS with SSD cache acceleration capability
Synology DiskStation DS1520+ is an ideal network-attached storage solution suitable for small office and IT enthusiasts. Two built-in M.2 SSD slots and Synology SSD Cache technology allow you to boost system I/O and application performance. The scalable storage design of DS1520+ lets you start small and expand storage capacity with Synology DX517 as your data grows.
Optimize performance and capacity
DS1520+ provides two built-in M.2 SSD slots so that you can take full advantage of Synology SSD Cache functionality. Add SSD cache for up to 20 times faster I/O response without using front drive bays. You can add 10 more drives with two Synology DX517 to expand storage capacity.
Accelerate demanding applications
A more powerful CPU speeds up computing-intensive applications. The new 4-core processor boosts photo indexing, database response times, and web PHP response efficiency. Easily categorize your photo memories, smoothly manage files across computers and mobile devices, and enjoy blazing fast web applications.
Access and sync your files seamlessly
Synology Drive provides a built-in universal portal to access your data anytime and anywhere, and synchronize all your files across platforms, including Windows, macOS, Linux, Android, and iOS. Learn more
Sync files on demand: Save the storage space and network bandwidth of your PC.
Go back in time: Easily retrieve previous versions of your shared files.
Back up your data: Protect your files with scheduled backups or in real-time.
Real-time collaboration on your private cloud
Synology Office is a collaboration package combining the convenience and usability of the public cloud with private cloud privacy and security. It enables seamless collaboration on documents and spreadsheets in a protected environment.
