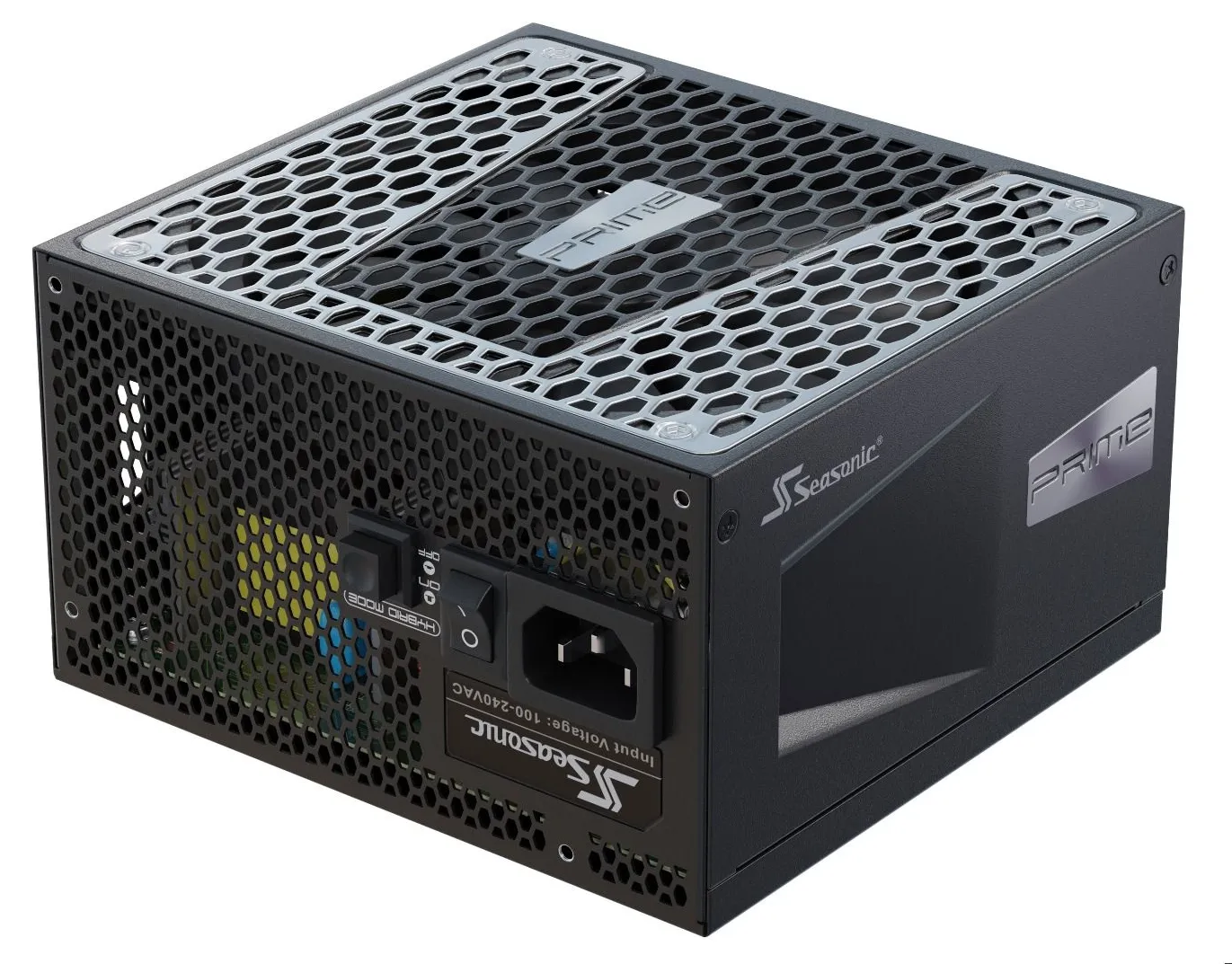

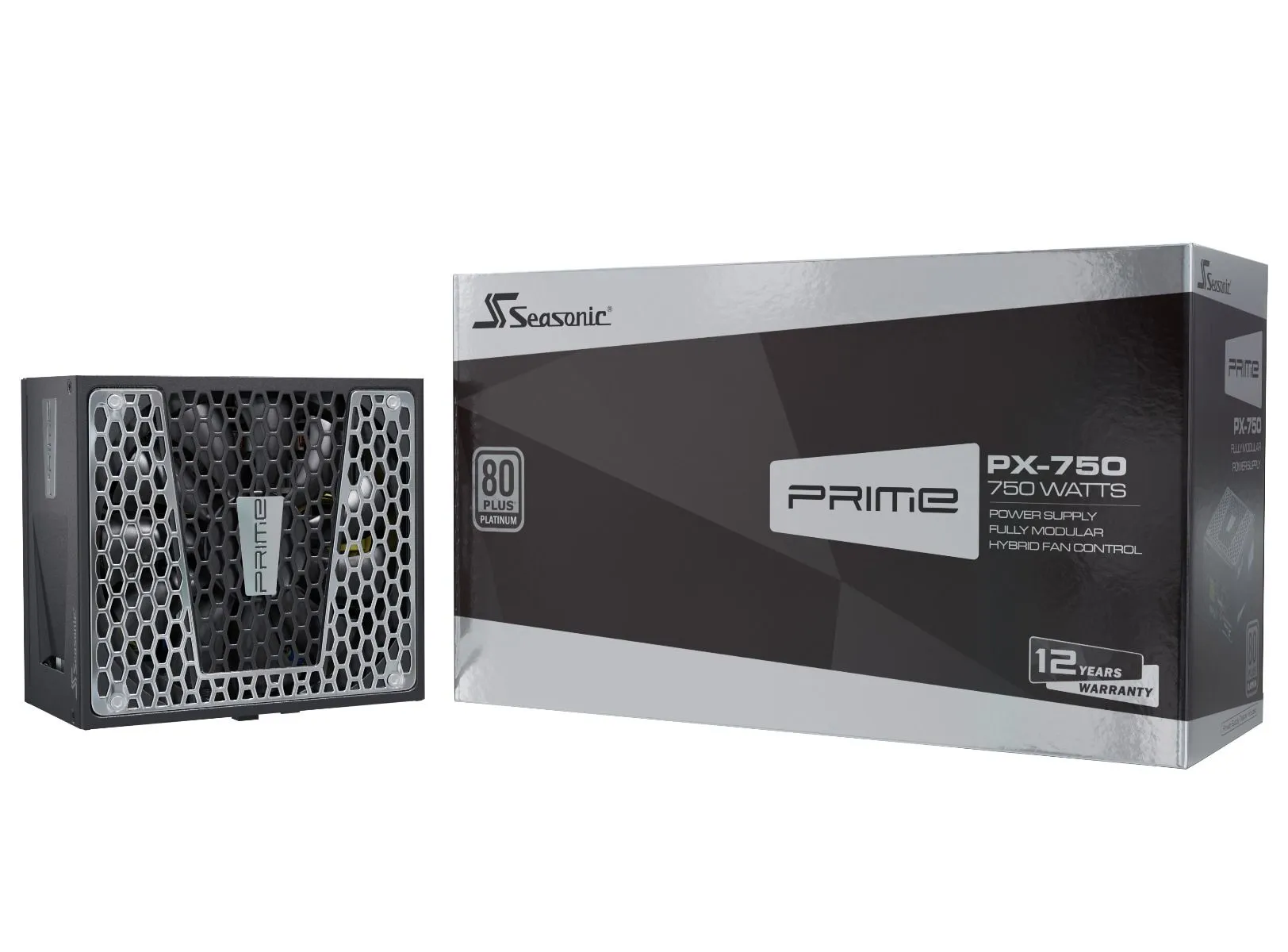

Seasonic Prime PX 750W -virtalähde, 80 Plus Platinum

ID: PRIME-PX-750
Valitse malli
21490€ Näytä ALV 0% Näytä ALV 24%
Arvioitu toimitus: Tuntematon
Ei saatavilla
Valitse myymälä
Ei saatavilla Avoinna tänään: 10:00 - 18:00 Tietoa myymälästä
Ei saatavilla Avoinna tänään: 09:00 - 17:00 Tietoa myymälästä
Ei saatavilla Avoinna tänään: 10:00 - 18:00 Tietoa myymälästä
Ei saatavilla Avoinna tänään: 10:00 - 17:00 Tietoa myymälästä
Ei saatavilla Avoinna tänään: 10:00 - 18:00 Tietoa myymälästä
Ei saatavilla Avoinna tänään: 10:00 - 18:00 Tietoa myymälästä
Ei saatavilla Avoinna tänään: 10:00 - 18:00 Tietoa myymälästä
Multitronic varastomyymälä
Multitronic | JNT Pietarsaari
Multitronic Seinäjoki
Multitronic | iTronic Jyväskylä
Multitronic | iTronic Lappeenranta
Multitronic Maarianhamina
iTronic Vaasa

Tärkeimmät tekniset tiedot

Valitse yksi tai useampi ominaisuus etsiäksesi tuotteita, joilla on samat tekniset tiedot.
Tuotetiedot
Kuvaus
Myymäläsaatavuus
Toimitus
Hinnan muutokset
Liitettävyys
Diskettiaseman liitincheckmark
PCI Express-liitincheckmark
Emolevyn virtaliitin20+4 pin ATX
Levykeaseman virtaliitin1
SATA-virtaliittimiä10
Peripheral (Molex) virtaliittimet (4-pin)3
ATX virtaliitin (20+4 pin)checkmark
Suorittimen virtaliitin (4+4 pin)checkmark
PCI Express-virtaliittimiä (6+2 pin)4
KaapelointityyppiModulaarinen
Emolevyn virtapiuhan pituus61 cm
SATA-virtakaapelin pituus450,470,570,700,760,810,860 mm
CPU:n voimakaapeli65 cm
(Molex) lisävirtakaapelin pituus470,690 mm
Diskettiaseman kaapelin pituus10,1 cm
Paino ja mitat
Tuotteen korkeus86 mm
Tuotteen leveys150 mm
Tuotteen syvyys170 mm
Virranhallinta
Syöttöjännite10 - 5 A
Nominaalivirta750 W
Virtalähteen suojausominaisuudetYlivirta, Yliteho, Ylijännite, Ylikuumeneminen, Oikosulku, Alijännite
Yhdistetty teho (+3.3V)100 W
Yhdistetty teho (+12V)744 W
Yhdistetty teho (+5V)100 W
Yhdistetty teho (-12V)3,6 W
Yhdistetty teho (+5Vsb)15 W
Suurin lähtövirta (+3.3V)20 A
Suurin lähtövirta (+12V)62 A
Suurin lähtövirta (+5V)20 A
Suurin lähtövirta (-12V)0,3 A
Suurin lähtövirta (+5Vsb)3 A
AC-syöttötaajuus50 - 60 Hz
AC-syöttöjännite100 - 240 V
Kokonaisteho750 W
Ympäristöolosuhteet
Käyttölämpötila (T-T)0 - 50 °C
Pakkaustiedot
Käyttöopascheckmark
PakkaustyyppiLaatikko
Sertifikaatit
80 PLUS certification80 PLUS Platinum
Pakkauksen sisältö
Sisältää johdotAC, PCIe, SATA
Muut ominaisuudet
Ruuvien määrä4
Sisältää ruuvitcheckmark
Suunnittelu
Tuotteen väriMusta
Tuulettimien määrä1 tuuletin(ta)
On/off-kytkincheckmark
Jäähdytyksen tyyppiAktiivinen
Tuulettimen halkaisija13,5 cm
Tuulettimen sijaintiPäältä
Suorituskyky
SertifiointicTUVus, TUV, CB, CCC, BSMI, EAC, CE
WEEE, ErP Lot 6, REACH
Keskimääräinen vikaantumisaika150000 h
TarkoitusPC
Bearing-teknologiaFDB
Virransyöttöyksikön mitatATX
EAN4711173874188
Takuu1 vuosi

Pressing on with its One Seasonic Initiative, the PRIME TX, PRIME PX and PRIME GX series became the successors to the Seasonic PRIME and PRIME Ultra series.

The PRIME Series has always demonstrated outstanding performance and have become the epitome of technological excellence and quality through the years. This third generation of PRIME Series rolled out not only with a uniformed naming scheme but also with updated general design and connection cables. As each new model in these PRIME series have their distinctive set of features and specifications, prospective customers will find a streamlined buying guidance through understanding the One Seasonic process.

80 PLUS® PLATINUM
The PRIME Platinum Series achieves 80 PLUS® Platinum certification with its 92 % efficiency at 50 % system load.

MICRO TOLERANCE LOAD REGULATION
Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 0.5 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.

PREMIUM HYBRID FAN CONTROL
Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art fan control that enables users to keep the overall fan noise at the lowest possible level.

FLUID DYNAMIC FAN BEARING
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

HOW IT WORKS
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.

CABLE-FREE CONNECTION DESIGN
Seasonic’s engineers have implemented a new design feature, where instead of cables; the back panel and the PCB (Printed Circuit Board) are connected by a copper plate. This breakthrough solution not only lowers the chance of production errors during manual insertion but it also improves output power quality.
