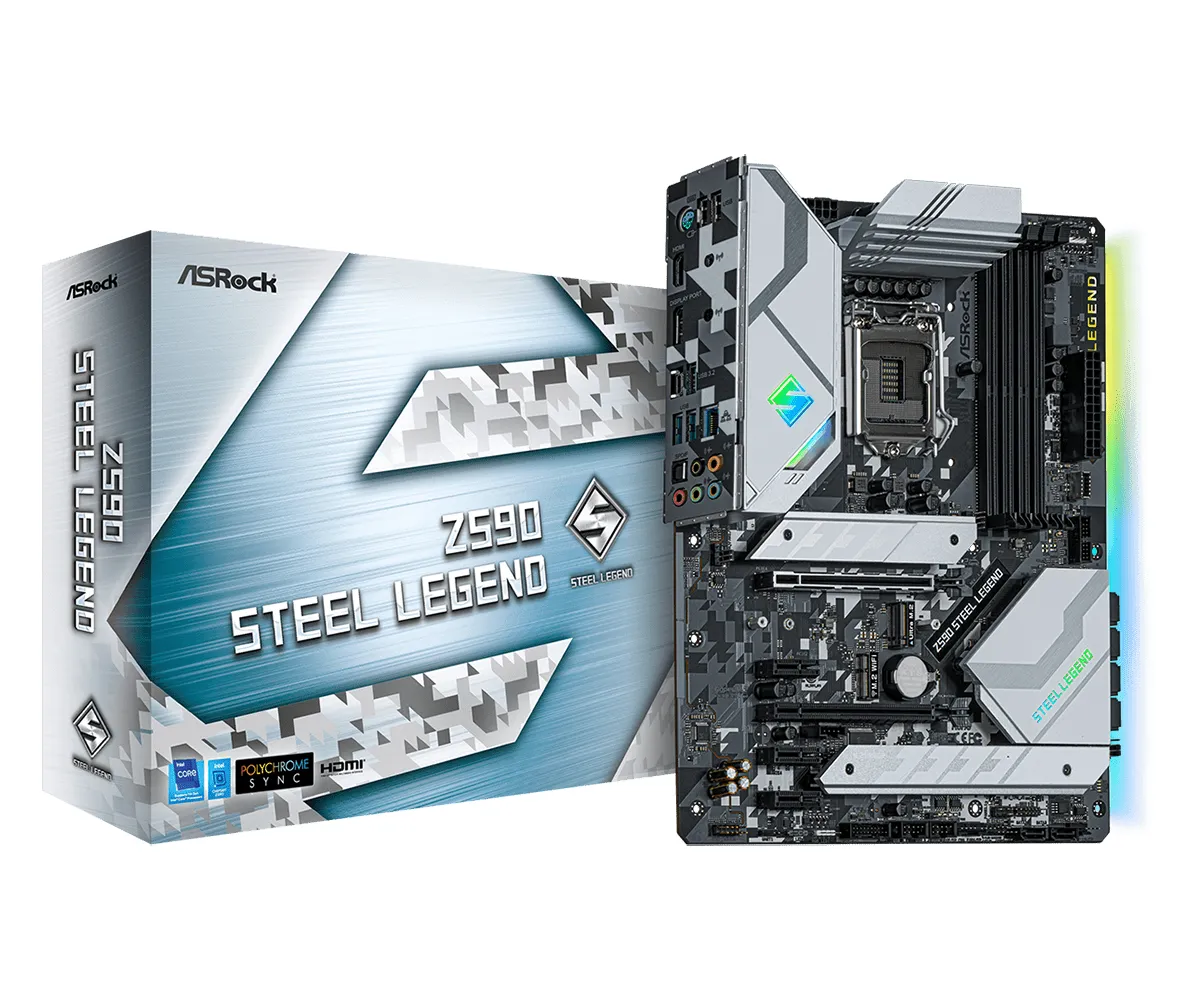

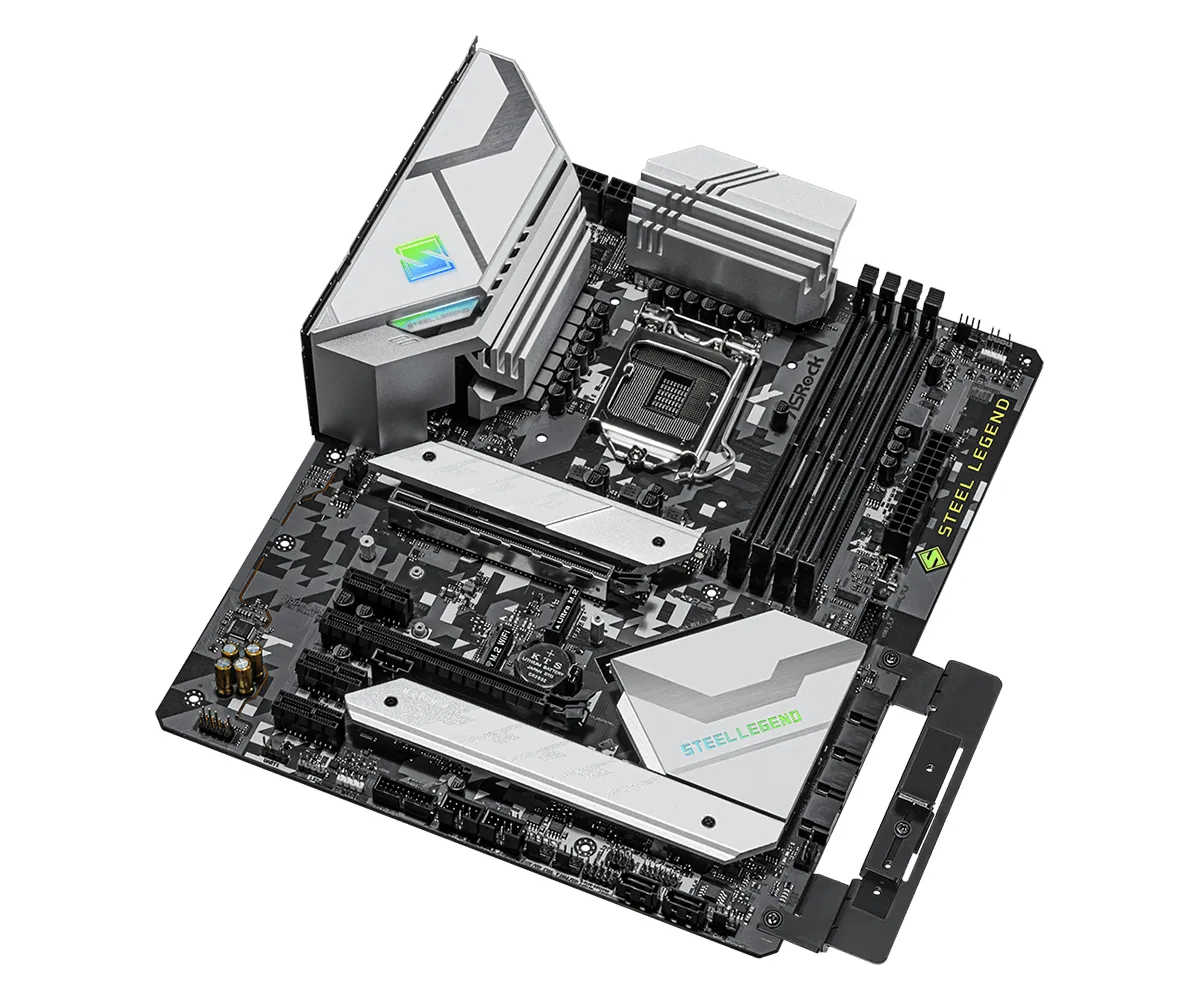

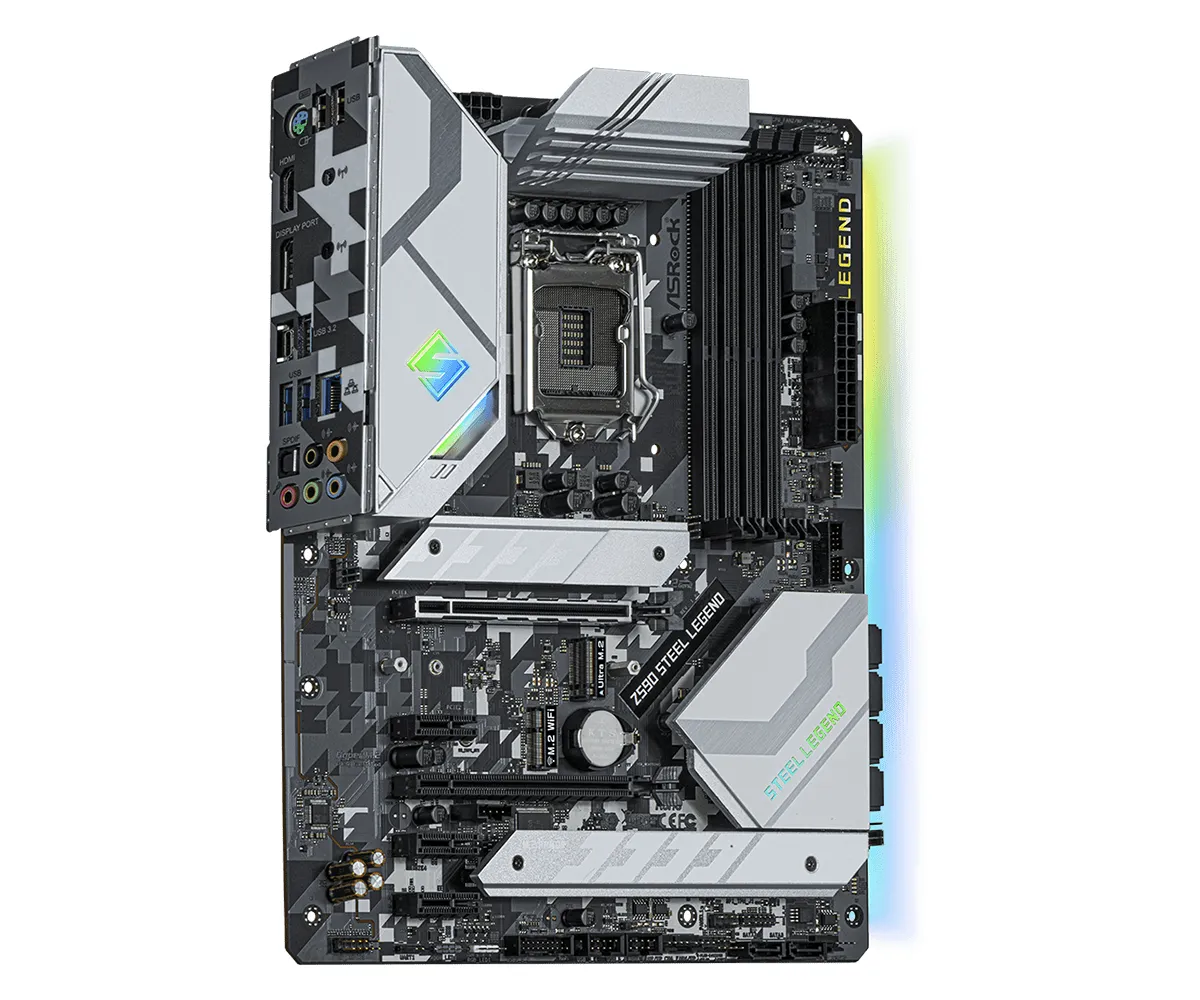

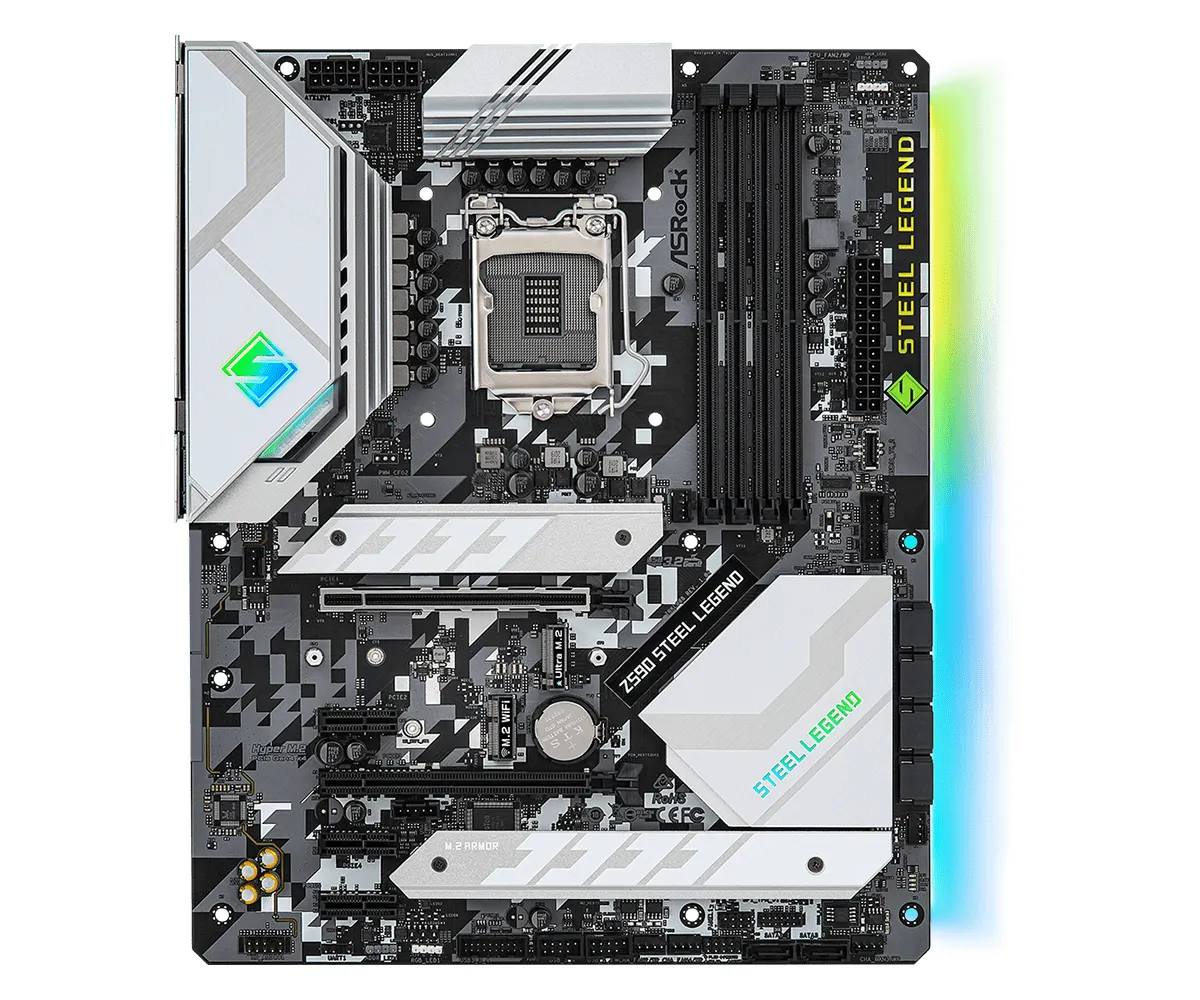

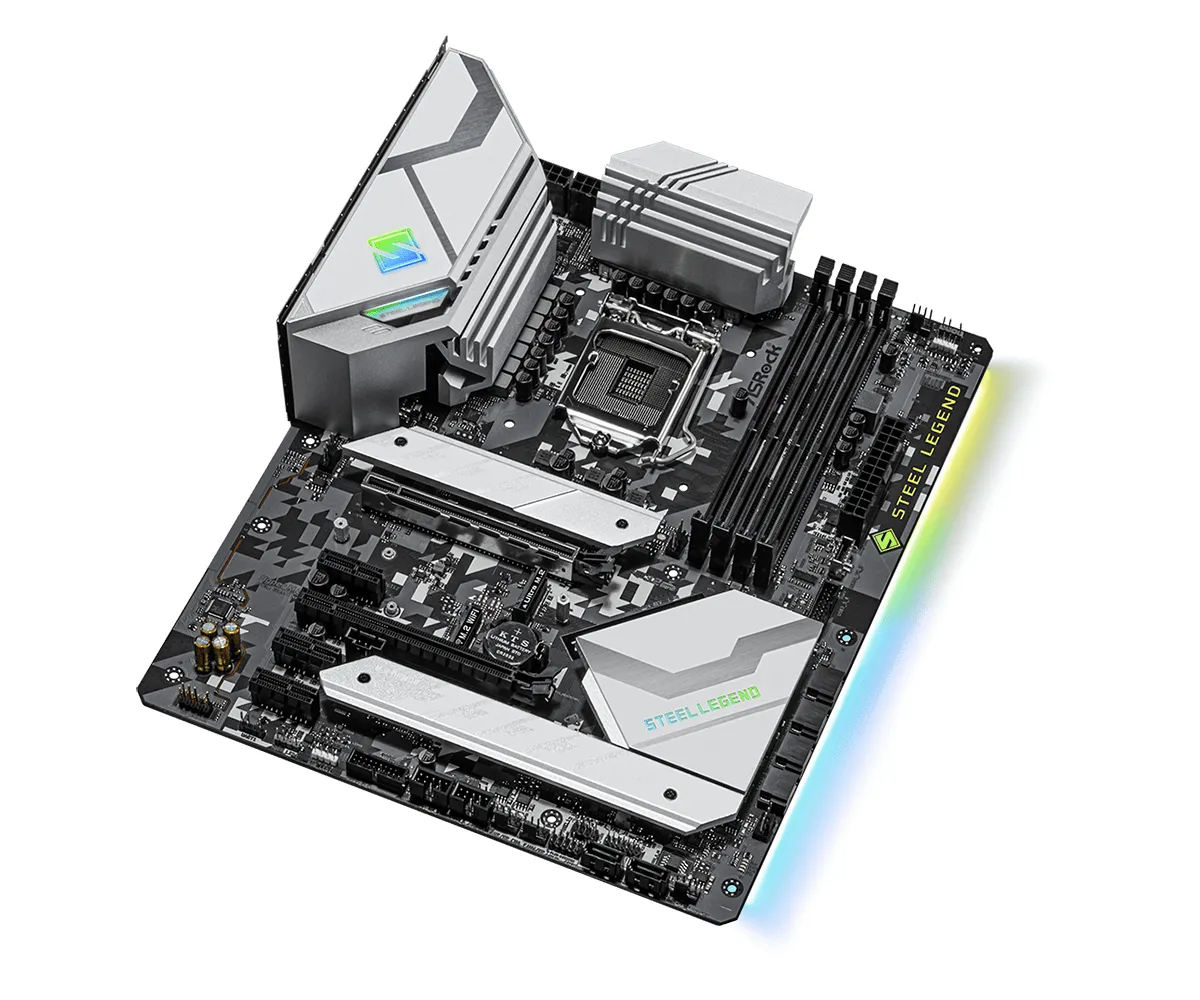

ASRock Z590 Steel Legend ATX-emolevy

ASRock Z590 Steel Legend ATX-emolevy

Valmistaja: ASROCK
ID: Z590 STEEL LEGEND
254,90 € Näytä ALV 0% Näytä ALV 24%
Verkkokauppa: Arvioitu toimitus: 14.02 - 16.02
Tuotetiedot
Kuvaus
Myymäläsaatavuus
Toimitus
Hinnan muutokset
Prosessori
SuoritinvalmistajaIntel
Yhteensopivat prosessoritIntel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel® Pentium®
Prosessorin kantaLGA 1200
Muisti
Sisäinen enimmäismuisti128 GB
Non-ECCcheckmark
Tuetut muistin kellotaajuudet4666,4800 MHz
Tuetut muistityypitDDR4
MuistikanavatDual-channel
Unbuffered memorycheckmark
Muistipaikkojen tyyppiDIMM
muistipaikkojen määrä4
Paino ja mitat
Tuotteen leveys305 mm
Tuotteen syvyys244 mm
Verkko
Ethernet LANcheckmark
Wake-on-LAN -valmiuscheckmark
LAN-kontrolleriDragon RTL8125BG
Wi-Ficross
Ethernet-liitännän tyyppi2.5 Gigabit Ethernet
Sisäinen I/O
USB 2.0-liittimet2
CPU-tuuletinliitincheckmark
ATX-virtaliitin (24-pin)checkmark
Etupaneelin ääniliitincheckmark
TPM-liitincheckmark
USB 3.2 Gen 1 (3.1 Gen 1) liittimet2
SATA III-liittimiä6
USB 3.1 (3.1 Gen 2) -yhdistimet1
12V liitincheckmark
Takapaneelin I/O-portit
PS/2-porttien määrä1
USB 2.0 -porttien määrä2
Ethernet LAN (RJ-45) -portit1
S/PDIF-lähtöportticheckmark
HDMI-porttien lukumäärä1
DisplayPort-portteja1
USB 3.0 (3.1 Gen 1) A-tyypin porttien määrä2
USB 3.0 (3.1 Gen 2) A-tyypin porttien määrä1
USB 3.2 Gen 2 (3.1 Gen 2) C-tyypin porttien määrä1
Tallennustilan ohjaimet
Tuetut tallennusasemaliitännätM.2,SATA III
Pakkauksen sisältö
Sisältää johdotSATA
Ajurit mukanacheckmark
Laajennuspaikat
PCI Express x1 (Gen 3.x)-paikat3
PCI Express x16 (Gen 3.x)-paikat1
M.2 (M) paikkojen määrä1
BIOS
BIOS-tyyppiUEFI AMI
ACPI-versio6.0
Ominaisuudet
Emolevyn piirisarjaIntel Z590
Emolevyn muototekijäATX
Äänilähdön kanavat7.1 kanavaa
Emolevyn piirisarjan perheIntel
Komponentti (tuotteelle)PC
EAN4710483933776
Takuu2 vuotta
Source: Icecat.biz

Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.

Style In Details
Featuring sturdy components as well as more elaborately styled pieces

14 Power Phase Design
Designed with a 14 Power Phase design, this motherboard features sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

PCIe 4.0 High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
This M.2 Heatsink is default equipped with M.2_1 socket to pair with Intel® 11th Gen processor. You may use it for M.2_2 if you’re using the Intel® 10th Gen processor to get the best heat dissipation.

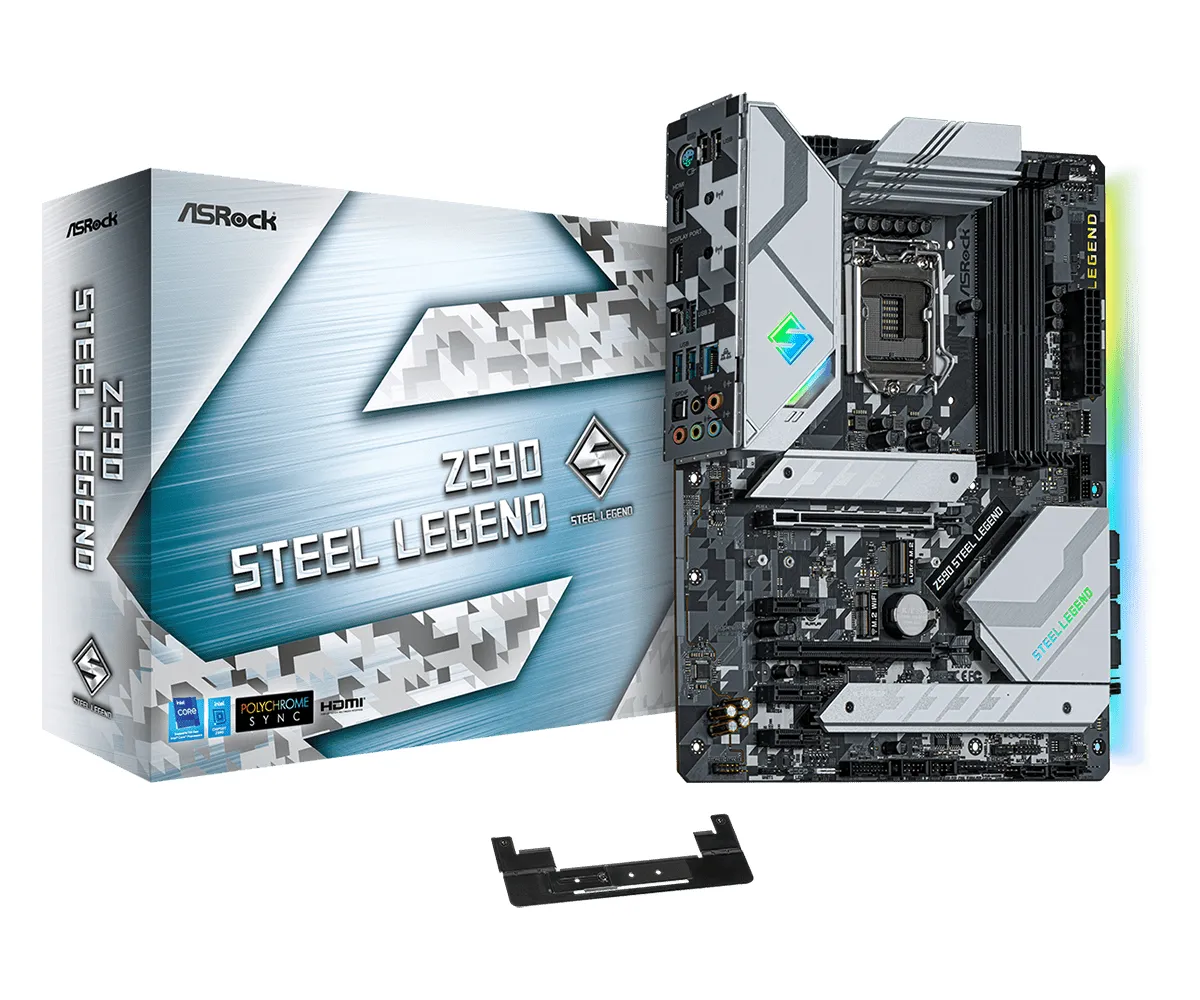

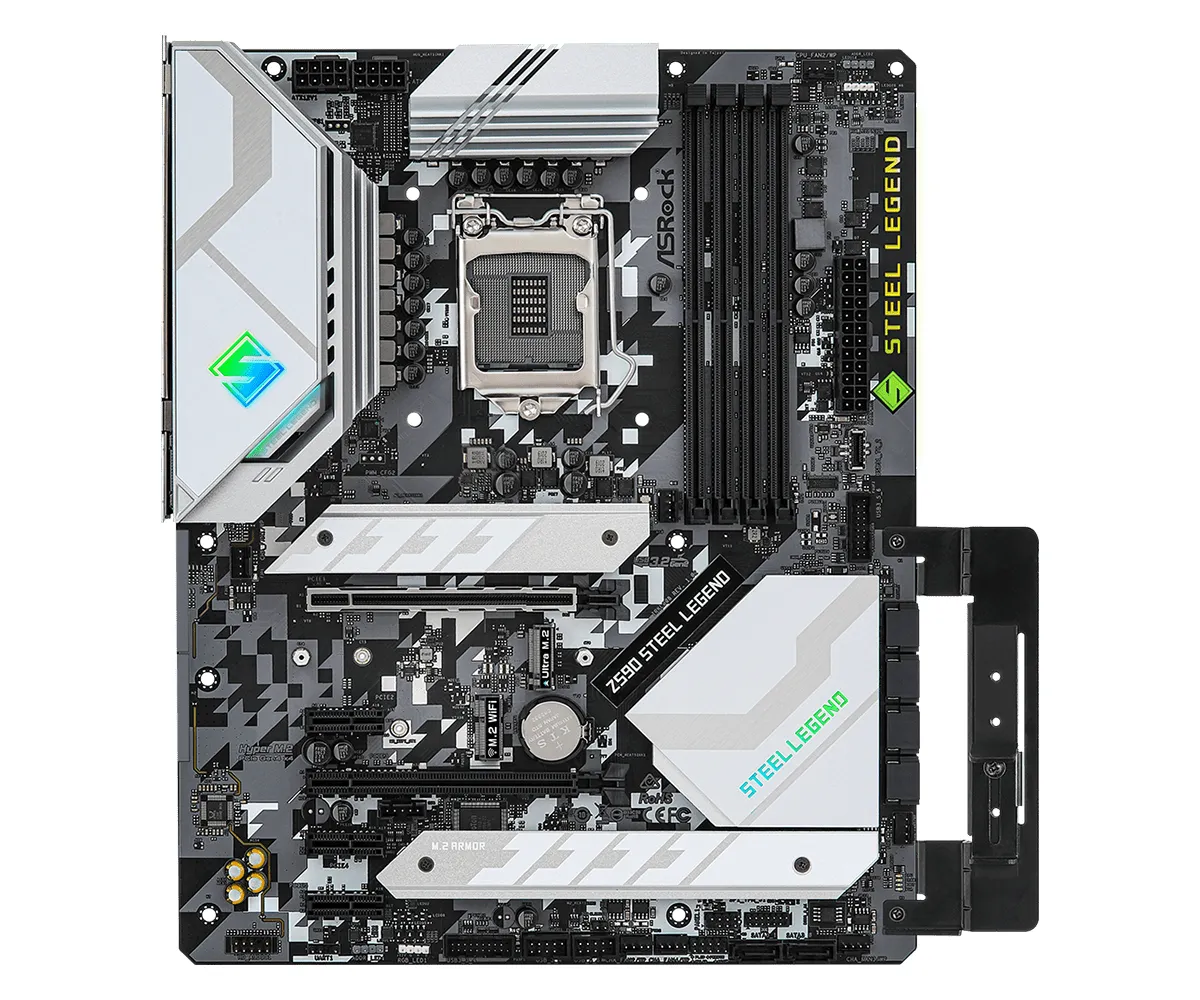

ASRock Graphics Card Holder
(Patent Pending)

Install your heavy graphics card on the holder; connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place.

Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.

USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.

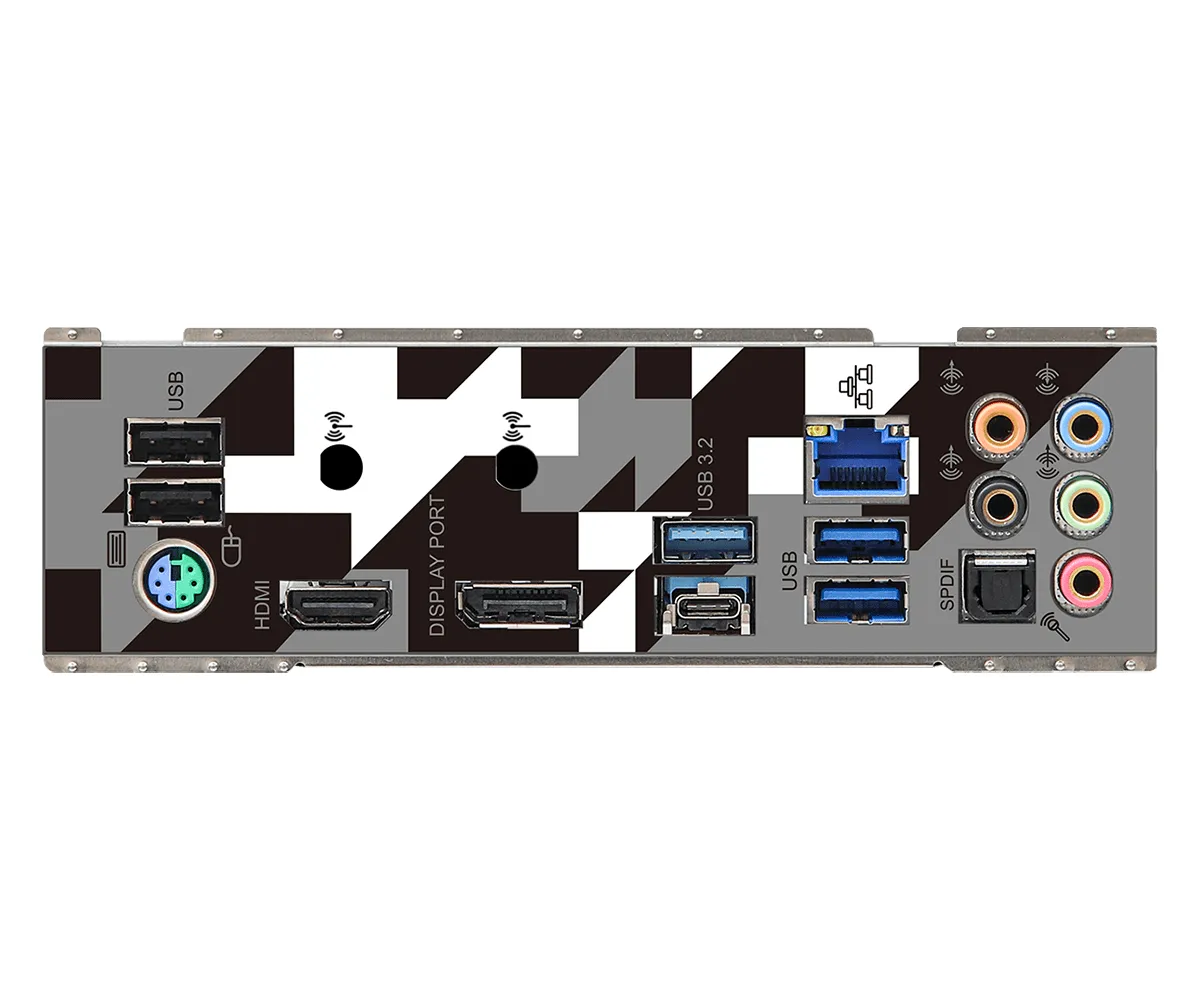

Flexible Integrated I/O Shield
Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Post Status Checker
An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.

HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
