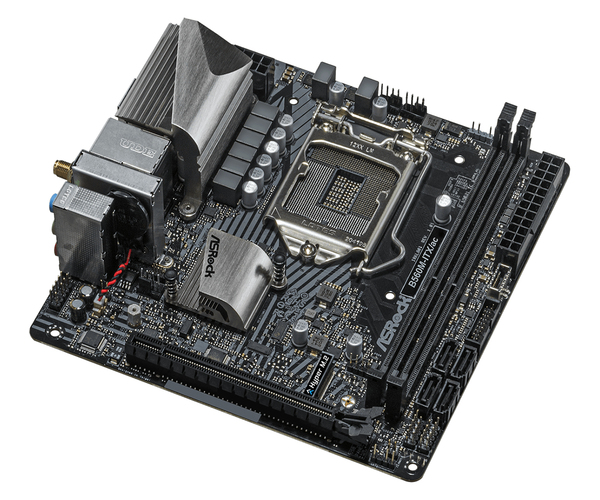

ASRock B560M-ITX/ac Mini-ITX-emolevy

Valmistaja: ASROCK
ID: 90-MXBEZ0-A0UAYZ
Tuote ei ole saatavilla
Tätä tuotetta ei valmisteta enää tai sitä ei ole tällä hetkellä saatavilla.
Tuotetiedot
Kuvaus
Myymäläsaatavuus
Toimitus
Hinnan muutokset
Prosessori
SuoritinvalmistajaIntel
Yhteensopivat prosessoritIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i7 Extreme Edition, Intel® Core™ i9, Intel Core i9 Extreme Edition, Intel® Pentium G
Prosessorin kantaLGA 1200
Tuettu prosessorin kantaLGA 1200 (Socket H5)
Muisti
Sisäinen enimmäismuisti64 GB
Non-ECCcheckmark
Tuetut muistin kellotaajuudet2666,2933,3200,4400,4600 MHz
Tuetut muistityypitDDR4
MuistikanavatKaksikanava
Unbuffered memorycheckmark
Muistipaikkojen tyyppiDIMM
Muistien tuettu koko2GB, 4GB, 8GB, 16GB, 32GB
muistipaikkojen määrä2
Paino ja mitat
Tuotteen leveys170 mm
Tuotteen syvyys170 mm
Verkko
Wi-Fi-standardit802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth-versio4.2
Ethernet LANcheckmark
Bluetoothcheckmark
Wake-on-LAN -valmiuscheckmark
LAN-kontrolleriIntel® I219-V
Wi-Ficheckmark
Ethernet-liitännän tyyppiGigabitti Ethernet
Wi-Fi-standardiWi-Fi 5 (802.11ac)
Sisäinen I/O
USB 2.0-liittimet1
CPU-tuuletinliitincheckmark
ATX-virtaliitin (24-pin)checkmark
Kotelotuulettimien liitinmäärä1
Etupaneelin ääniliitincheckmark
Peripheral (Molex) virtaliittimet (4-pin)1
EPS virtaliitin (8-pin)checkmark
USB 3.2 Gen 1 (3.1 Gen 1) liittimet1
SATA III-liittimiä4
12V liitincheckmark
Takapaneelin I/O-portit
PS/2-porttien määrä1
USB-liitinUSB A-tyyppi
USB 2.0 -porttien määrä2
Ethernet LAN (RJ-45) -portit1
Kuulokelähdöt1
Mikrofonitulocheckmark
WiFi-AP antennin pistoke2
HDMI-porttien lukumäärä1
HDMI-versio2.0
DisplayPort-portteja1
DisplayPort versio1.4
USB 3.0 (3.1 Gen 1) A-tyypin porttien määrä2
Tallennustilan ohjaimet
Tuettujen HDD:iden lukumäärä4
Tuettujen tallennusasemien lukumäärä1
Tuetut tallennusasematyypitHDD & SSD
Tuetut tallennusasemaliitännätM.2, SATA III
Pakkauksen sisältö
Sisältää johdotSATA
Ajurit mukanacheckmark
Laajennuspaikat
PCI Express x16 (Gen 3.x)-paikat1
M.2 (M) paikkojen määrä1
BIOS
BIO- muistin koko128 Mbit
BIOS-tyyppiUEFI AMI
ACPI-versio6.0
Grafiikka
Enimmäiserottelutarkkuus4096 x 2304 pikseliä
DirectX-versio12.0
OpenGL-versio4.5
HDCPcheckmark
Tuettavien näyttöjen määrä2
Ominaisuudet
Emolevyn piirisarjaIntel B560
Emolevyn muototekijäMini ITX
Äänilähdön kanavat7.1 kanavaa
Jäähdytyksen tyyppiAktiivinen
Asennusreikien määrä4
PC health monitoringProsessori (CPU), Tuuletin, LED, Lämpötila, Jännite
Windows-käyttöjärjestelmätukiWindows 10 x64
Emolevyn piirisarjan perheIntel
Komponentti (tuotteelle)PC
ÄänikorttiRealtek ALC897
EAN4710483933912
Source: Icecat.biz

Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

6 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with the lowest temperature for advanced gamers.

Hyper M.2 (PCIe Gen4 x4)
Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2.

Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.

HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
