EKWB EK-Quantum Surface X280M - Radiator (white)

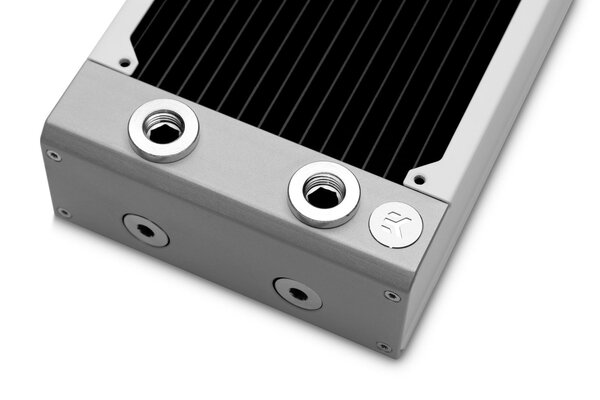

For those who demand the most cooling power out of an EK-Quantum Surface radiator, the 58mm-thick X Series is the right choice. These thick radiators will benefit the most from medium and high-speed fans or even a Push/Pull setup. Equipped with a total of four G1/4“ threaded connection ports, the X Series provides additional versatility during the loop planning process. The fifth G1/4“ port located on the end-tank is an irreplaceable feature when it comes to draining the loop and air bleeding. A total of eighteen 2mm wide copper tubes across the entire radiator ensure optimal coolant flow, putting no stress on your cooling loop. High-grade non-louvered copper fins with 18 FPI density provide the best balance between thermal transfer and air resistance. EK doesn't recommend using slow-running fans on X Series EK-Quantum Surface radiators as they require adequate airflow to remove more heat than they absorb in their thick core.

Technical and Material Specifications:

• High-grade 99.9% copper fins
• Copper H90 tubing
• Brass H62 end tank chambers
• Stainless Steel side plates
• Extruded Aluminum Silver anodized end piece covers
• Brass nickel-plated adapters and plugs
• Dimensions: 325 x 145 x 58mm (L x W x H)
• Weight: 1.93kg
• FPI: 18
• Port threads: 5x G1/4"
• Fan compatibility: 140x140x25mm fan
• Pressure tested: 1bar

• EK-Quantum Surface X series radiator
• 8x Phillips Slotted M4x30mm for 25mm thick fans
• 8x Phillips Slotted M4x5mm for mounting the radiator directly to the case
• 6mm steel Allen (Hex) key
•  9mm steel Allen (Hex) key
