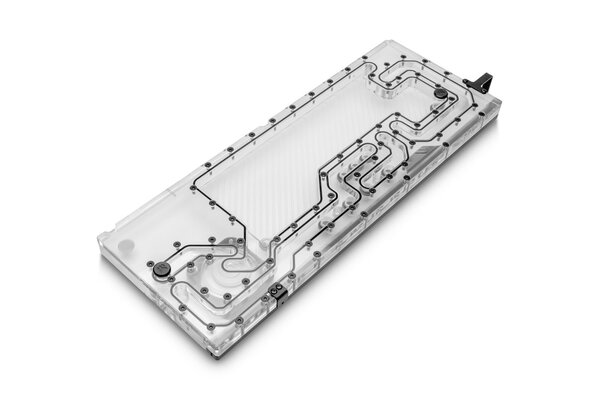

EKWB EK-Quantum Reflection2 Fractal XL D5 PWM D-RGB - Acrylic, Pump (transparent, reservoir/pump combo)

The EK-Quantum Reflection² Fractal XL D5 PWM D-RGB - Plexi is a water cooling reservoir, routing, and pump solution made to fit several Fractal Design cases. This "distro plate" is specifically designed to provide an advanced water cooling solution with a market-leading D5 pump for users who are building custom loop liquid cooling solutions with Fractal Design cases.

Supported Fractal Design cases:

• Define 7 XL
• Meshify 2 XL (The front panel needs to be modified in order to fit it to the case with the distro plate installed.)

• Front: Up to EK-Quantum Surface X360
• Top: Up to EK-Quantum Surface P480

• Dimensions with the attached pump (W x D x H): 183 x 77 x 490mm
• Reservoir volume: ~557ml
• D-RGB LED count: 27
• D-RGB cable length: 600mm
• D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)

• Motor: Electronically commuted spherical motor
• Rated voltage: 12V DC
• Power consumption: 23W
• Maximum pressure head: 3.9m
• Maximum flow: 1500L/h
• Maximum system temperature: 60°C
• Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
• Power connector: SATA and 4-pin PWM FAN connector

• PWM duty cycle: ~ 20-100%
• Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present

• EK-Quantum Reflection² Fractal XL D5 PWM D-RGB – Plexi
• 1x Allen key 2mm
• 1x EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
• 4x Screw M3x8 DIN7984
• 11x MS - Quantum Plug - Ni (preinstalled)
• 11x EK-Quantum Torque Plug Cover - Black (preinstalled)
• 1x EK-Quantum Torque Push-In Adapter F 0 - Nickel (preinstalled)
