Seasonic SS-2x8P-90°-12V 2x6-600W, musta

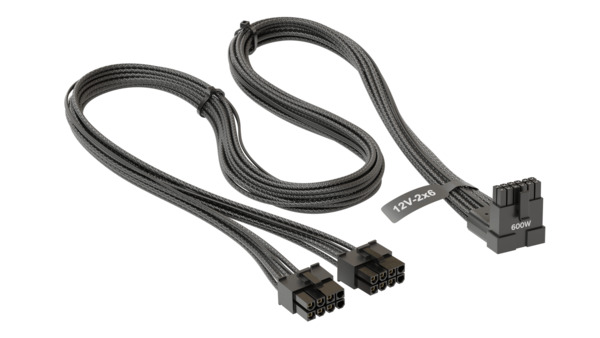

SEASONIC 90° 12V-2X6 CABLE
Seasonic introduces the 12VHPWR 600 W graphics card cable to power high-performance GPU / graphic cards. This cable can be used with many of our current and past power supplies but with specific compatibility requirements. Please see below for important compatibility information.
Remark: Please note that the 90-degree VGA connector variant cable may have directional fit issues with some RTX 40 and RTX 50 VGA cards. We recommend checking the direction of the VGA power connector before use to ensure proper fitting.

A Single Connector To Power Them All
With the arrival of the new ATX 3 / PCIe 5 specifications, some graphic cards will now be powered by the new 12V-2x6 connector. Offering up to 600 W of power, the Seasonic 12V-2x6 cable has been crafted with high quality materials, such as high current terminal connectors and 16 AWG wires to ensure highest performance and safety in usage.

Please see Sea Sonic's compatibility recommendations below:

Power supply requirement: 650 W and above
The 12V-2x6 cable that is provided with your Seasonic power supply is rated at 600 W. This means the maximum allowable power pull from the power supply by the VGA can be up to 600 W. If your VGA is very power usage intensive, then please consider power supplies that are rated at 750 W and higher.

• Always follow the recommendations of your VGA card manufacturer for the minimum power requirement.

• Always follow the recommendations of your VGA card manufacturer for the minimum power requirement.

• Seasonic PRIME (ATX 3.0 models included)
• VERTEX GX, PX and SAKURA
• Seasonic FOCUS GX and PX (ATX 3.0 models included)
• Seasonic FOCUS Plus Gold and Platinum
• Seasonic Platinum, XP2 and XP3
• Seasonic X-Series, KM3 and XM2

• Any power supplies rated under 650 W
• FOCUS Gold & FOCUS GM - These power supplies have only 1x PCIe connector available and therefore cannot work with the Seasonic 12V-2x6 600 W cable.
• Please note that the 90-degree VGA connector variant cable may have directional fit issues with some RTX 40 and RTX 50 VGA cards. We recommend checking the direction of the VGA power connector before use to ensure proper fitting.

• The 12V-2x6 cable is designed to work perfectly when installed correctly. The usage or this cable is exclusively beneficial when both the power supply and the graphics card are equipped with matching 12V-2x6 connectors. To ensure the safe and effective use of the cable, please follow these recommendations:
• Both 2x 8-pin and 12V-2x6 connectors must be plugged at all times.
• Ensure that all connectors are INSERTED, CLICK-LOCKED, and SEATED properly.
• Avoid bending or applying force to the cable too close to the connector.
• Once the cable is plugged into place, DO NOT bend it in any direction.
• Please note that the 90-degree VGA connector variant cable may have directional fit issues with some RTX 40 and RTX 50 VGA cards. We recommend checking the direction of the VGA power connector before use to ensure proper fitting.
