Cisco UCS B200 M3 Entry Plus SmartPlay Expansion Pack - Palvelin - blade - 2-teinen - 2 x Xeon E5-2620V2 / 2.1 GHz - RAM 64 Gt - SAS - pikavaihto 2.5" - ei kiin
Данный товар более не продается или в настоящий момент не может быть приобретен.
Процессор | |
Модель процессора | E5-2620V2 |
Количество установленных процессоров | 2 |
Производитель процессора | Intel |
Технологический процесс | 22 nm |
Семейство процессоров | Intel Xeon |
Поддерживаемые наборы команд | AVX |
Количество ядер процессора | 6 |
Скорость передачи данных системной шины | 7,2 GT/s |
Потоки процессора | 12 |
Поддержка IPMI | |
Операционные режимы процессора | 64-bit |
Повышеная частота процессора | 2.6 GHz |
Кеш-память процессора | 15 MB |
Execute Disable Bit | |
Состояние бездействия | |
технологии термомониторинга | |
Масштабируемость | 2S |
Tcase | 71 °C |
Паритет FSB | |
Доступные встроенные опции | |
Тип шины | QPI |
Количество соединений QPI | 2 |
Конфигурации последовательной шины периферии PCI Express | x4, x8, x16 |
Тактовая частота процессора | 2.1 GHz |
TDP | 80 W |
Кодовое название процессора | Ivy Bridge EP |
Максимальное количество полос PCI Express | 40 |
Тип кэша процессора | Smart Cache |
Серии процессора | Intel Xeon E5-2600 v2 |
Расширение Физических Адресов (PAE) | 46 бит |
Максимальная внутренняя память, поддерживаемая процессором | 768 GB |
Типы памяти, поддерживаемые процессором | DDR3-SDRAM |
Частоты памяти, поддерживаемые процессором | 800,1066,1333,1600 MHz |
Пропускная способность памяти поддерживаемая процессором (макс.) | 51,2 GB/s |
Каналы памяти, поддерживаемые процессором | Quad |
ECC-память поддерживается процессором | |
Размер корпуса процессора | 52.5 x 45 mm |
Бесконфликтный процессор | |
Память | |
Тип внутренней памяти | DDR3-SDRAM |
Слоты памяти | 24 |
Максимальная внутренняя память | 768 GB |
Error-correcting code (ECC) | |
Тактовая частота памяти | 1866 MHz |
Конфигурация памяти (слоты х емкость) | 8 x 8 GB |
Оперативная память | 64 GB |
Порты и интерфейсы | |
Количество портов Ethernet LAN ( RJ-45) | 4 |
Энергопитание | |
Поддержка резервного блока питания (РБП) | |
Внешние условия | |
Рабочая высота | 0 - 3000 m |
Диапазон относительной влажности при эксплуатации | 5 - 93% |
Диапазон температуры хранения | -40 - 65 °C |
Диапазон рабочих температур | 10 - 35 °C |
Диапазон относительной влажности при хранении | 5 - 93% |
Высота в нерабочем режиме | 3000 - 12000 m |
Сеть | |
Свивка кабеля | 10/100/1000Base-T(X) |
Подключение Ethernet | |
Тип Ethernet интерфейса | 10 Gigabit |
Носители хранения данных | |
Совместимые карты памяти | SD |
Тип оптического привода | Нет |
Уровни RAID | 0, 1 |
Поддержка Hot-Plug | |
Встроенный кардридер | |
Количество поддерживаемых жестких дисков | 2 |
Функция "горячей"замены | |
Максимальная емкость накопителей | 2 TB |
Поддерживаемые размеры жесткого диска | 2.5" |
Поддержка RAID | |
Поддерживаемые интерфейсы носителя | SAS, SATA |
программное обеспечение | |
Установленная операционная система | |
Слоты расширения | |
Версия PCI Express слотов | 3.0 |
Прочие свойства | |
Встроенный экран | |
Дизайн | |
Монтаж в стойку | |
Тип корпуса | Лезвие |
Особые свойства процессора | |
Технология Intel My WiFi | |
Технология Intel Identity Protection | |
Технология Intel Anti-Theft | |
Технология Intel Hyper-Threading | |
Технология Intel Turbo Boost | 2.0 |
Intel® Quick Sync Video Technology | |
Intel® InTru™ 3D Technology | |
Технология Intel Wireless Display (WiDi) | |
Intel FDI Technology | |
Intel Clear Video HD Technology | |
Intel Dual Display Capable Technology | |
Intel® Insider™ | |
Intel Fast Memory Access | |
Intel Flex Memory Access | |
Intel AES New Instructions | |
Технология Enhanced Intel SpeedStep | |
Intel Trusted Execution Technology | |
Конфигурация Центрального Процессора (макс.) | 2 |
Intel Enhanced Halt State | |
Технология Intel® Clear Video для мобильных интернет-устройств (Intel CVT for MID) | |
Intel VT-x with Extended Page Tables (EPT) | |
Intel Demand Based Switching | |
Intel Rapid Storage Technology | |
Intel® TSX-NI | |
Intel® Secure Key | |
Intel® 64 | |
Intel® OS Guard | |
Технология Intel Virtualization for Directed I/O (VT-d) | |
Технология Intel Clear Video | |
версия технологии Intel® Identity Protection | 0,00 |
версия технологии Intel® Secure Key | 1,00 |
Технология Визуализации (VT-x) Intel | |
версия Intel® TSX-NI | 0,00 |
ID ARK процессора | 75789 |
EAN | 0882658668838 |
Гарантия | 3 месяцев |
Source: Icecat.biz |
The Cisco® Unified Computing System™ (Cisco UCS™) combines Cisco UCS B-Series Blade Servers and C-Series Rack Servers with networking and storage access in a single converged system that simplifies management and delivers greater cost efficiency and agility with increased visibility and control. The Cisco UCS B200 M3 Blade Server delivers performance, versatility, and density without compromise. It addresses the broadest set of workloads, from IT and web infrastructure, through distributed database. The enterprise-class Cisco UCS B200 M3 Blade Server further extends the capabilities of the Cisco UCS portfolio in a half-width blade form factor. The Cisco UCS B200 M3 harnesses the power of the latest Intel® Xeon® processor E5-2600 and E5-2600 v2 product families, with up to 768 GB of RAM (using 32-GB DIMMs), two disk drives, and up to dual 4x 10 Gigabit Ethernet throughput. In addition, Cisco UCS has the architectural advantage of not having to power and cool excess switches in each blade chassis. With a larger power budget per blade server, Cisco can design uncompromised expandability and capabilities in its blade servers, as evidenced by the new Cisco UCS B200 M3, with its leading memory slot and drive capacity.
The Cisco UCS B200 M3 provides:
- One or two, multi-core, Intel® Xeon® processor E5-2600 and E5-2600 v2 product families CPUs, for up to 24 processing cores
- 24 DIMM slots for industry-standard double-data-rate 3 (DDR3) memory running up to 1866 MHz and up to 768 GB of total memory (using 32-GB DIMMs)
- Two optional, hot-pluggable SAS or SATA hard disk drives (HDDs) or solid-state drives (SSDs)
- Industry-leading 80 Gbps throughput bandwidth
- Remote management through a Cisco Integrated Management Controller (CIMC) that implements policy established in Cisco UCS Manager
- Out-of-band access by remote keyboard, video, and mouse (KVM) device, Secure Shell (SSH) Protocol, and virtual media (vMedia) as well as the Intelligent Platform Management Interface (IPMI)

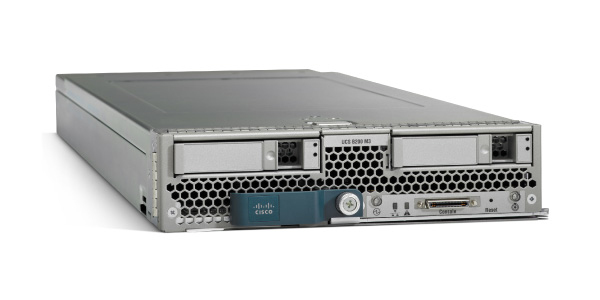

In addition, the Cisco UCS B200 M3 is a half-width blade (Figure 1). Up to eight of these high-density, two-socket blade servers can reside in the 6RU Cisco UCS 5108 Blade Server Chassis, offering one of the highest densities of servers per rack unit in the industry.
Another Cisco innovation, the Cisco UCS Virtual Interface Card (VIC) 1240 is a 4-port 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE)-capable modular LAN on motherboard (LOM) designed exclusively for the M3 generation of Cisco UCS B-Series Blade Servers. When used in combination with an optional I/O expander, the Cisco UCS VIC 1240 capabilities can be expanded up to eight ports of 10 Gigabit Ethernet. The Cisco UCS VIC 1240 enables a policy-based, stateless, agile server infrastructure that can present up to 256 PCI Express (PCIe) standards-compliant interfaces to the host that can be dynamically configured as either network interface cards (NICs) or host bus adapters (HBAs). In addition, the Cisco UCS VIC 1240 supports Cisco® Data Center Virtual Machine Fabric Extender (VM-FEX) technology, which extends the Cisco UCS fabric interconnect ports to virtual machines, simplifying server virtualization deployment.
