Cisco UCS B200 M3 Entry Plus SmartPlay Expansion Pack - Palvelin - blade - 2-teinen - 2 x Xeon E5-2620V2 / 2.1 GHz - RAM 64 Gt - SAS - pikavaihto 2.5" - ei kiin
This product is end of life or currently not available.
Processor | |
Processor model | E5-2620V2 |
Number of processors installed | 2 |
Processor manufacturer | Intel |
Processor lithography | 22 nm |
Processor family | Intel Xeon |
Processor socket | LGA 2011 |
Supported instruction sets | AVX |
Processor cores | 6 |
System bus rate | 7.2 GT/s |
Processor threads | 12 |
Intelligent Platform Management Interface (IPMI) support | |
Processor operating modes | 64-bit |
Processor boost frequency | 2.6 GHz |
Processor cache | 15 MB |
Execute Disable Bit | |
Idle States | |
Thermal Monitoring Technologies | |
Scalability | 2S |
Tcase | 71 °C |
FSB Parity | |
Embedded options available | |
Bus type | QPI |
Number of QPI links | 2 |
PCI Express configurations | x4, x8, x16 |
Processor frequency | 2.1 GHz |
Thermal Design Power (TDP) | 80 W |
Processor codename | Ivy Bridge EP |
Maximum number of PCI Express lanes | 40 |
Processor cache type | Smart Cache |
Processor series | Intel Xeon E5-2600 v2 |
Physical Address Extension (PAE) | 46 bit |
Maximum internal memory supported by processor | 768 GB |
Memory types supported by processor | DDR3-SDRAM |
Memory clock speeds supported by processor | 800,1066,1333,1600 MHz |
Memory bandwidth supported by processor (max) | 51.2 GB/s |
Memory channels supported by processor | Quad |
ECC supported by processor | |
Processor package size | 52.5 x 45 mm |
Conflict-Free processor | |
Memory | |
Internal memory type | DDR3-SDRAM |
Memory slots | 24 |
Maximum internal memory | 768 GB |
ECC | |
Memory clock speed | 1866 MHz |
Memory layout (slots x size) | 8 x 8 GB |
Internal memory | 64 GB |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 4 |
Energy management | |
Redundant power supply (RPS) support | |
Operational conditions | |
Operating altitude | 0 - 3000 m |
Operating relative humidity (H-H) | 5 - 93% |
Storage temperature (T-T) | -40 - 65 °C |
Operating temperature (T-T) | 10 - 35 °C |
Storage relative humidity (H-H) | 5 - 93% |
Non-operating altitude | 3000 - 12000 m |
Networking | |
Cabling technology | 10/100/1000Base-T(X) |
Ethernet LAN | |
Ethernet interface type | 10 Gigabit |
Storage | |
Compatible memory cards | SD |
Optical drive type | No |
RAID levels | 0, 1 |
Hot-Plug support | |
Card reader integrated | |
Number of HDDs supported | 2 |
Hot-swap | |
Maximum storage capacity | 2 TB |
Supported HDD sizes | 2.5" |
RAID support | |
Supported storage drive interfaces | SAS, Serial ATA |
Operating system/software | |
Operating system installed | |
Expansion slots | |
PCI Express slots version | 3.0 |
Other features | |
Built-in display | |
Design | |
Rack mounting | |
Chassis type | Blade |
Processor special features | |
Intel® My WiFi Technology (Intel® MWT) | |
Intel® Identity Protection Technology (Intel® IPT) | |
Intel® Anti-Theft Technology (Intel® AT) | |
Intel® Hyper Threading Technology (Intel® HT Technology) | |
Intel® Turbo Boost Technology | 2.0 |
Intel® Quick Sync Video Technology | |
Intel® InTru™ 3D Technology | |
Intel® Wireless Display (Intel® WiDi) | |
Intel FDI Technology | |
Intel® Clear Video HD Technology (Intel® CVT HD) | |
Intel Dual Display Capable Technology | |
Intel® Insider™ | |
Intel Fast Memory Access | |
Intel Flex Memory Access | |
Intel® AES New Instructions (Intel® AES-NI) | |
Enhanced Intel SpeedStep Technology | |
Intel Trusted Execution Technology | |
CPU configuration (max) | 2 |
Intel Enhanced Halt State | |
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | |
Intel VT-x with Extended Page Tables (EPT) | |
Intel Demand Based Switching | |
Intel Rapid Storage Technology | |
Intel TSX-NI | |
Intel® Secure Key | |
Intel 64 | |
Intel® OS Guard | |
Intel Virtualization Technology for Directed I/O (VT-d) | |
Intel Clear Video Technology | |
Intel Identity Protection Technology version | 0.00 |
Intel Secure Key Technology version | 1.00 |
Intel Virtualization Technology (VT-x) | |
Intel TSX-NI version | 0.00 |
Processor ARK ID | 75789 |
EAN | 0882658668838 |
Warranty | 3 months |
Source: Icecat.biz |
The Cisco® Unified Computing System™ (Cisco UCS™) combines Cisco UCS B-Series Blade Servers and C-Series Rack Servers with networking and storage access in a single converged system that simplifies management and delivers greater cost efficiency and agility with increased visibility and control. The Cisco UCS B200 M3 Blade Server delivers performance, versatility, and density without compromise. It addresses the broadest set of workloads, from IT and web infrastructure, through distributed database. The enterprise-class Cisco UCS B200 M3 Blade Server further extends the capabilities of the Cisco UCS portfolio in a half-width blade form factor. The Cisco UCS B200 M3 harnesses the power of the latest Intel® Xeon® processor E5-2600 and E5-2600 v2 product families, with up to 768 GB of RAM (using 32-GB DIMMs), two disk drives, and up to dual 4x 10 Gigabit Ethernet throughput. In addition, Cisco UCS has the architectural advantage of not having to power and cool excess switches in each blade chassis. With a larger power budget per blade server, Cisco can design uncompromised expandability and capabilities in its blade servers, as evidenced by the new Cisco UCS B200 M3, with its leading memory slot and drive capacity.
The Cisco UCS B200 M3 provides:

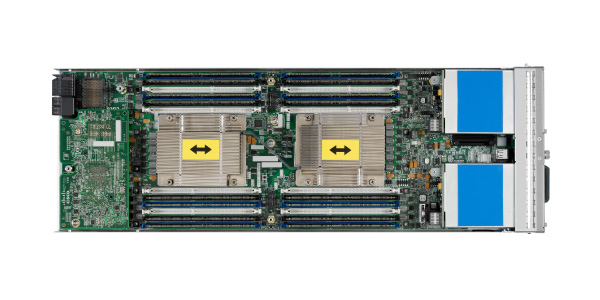

- One or two, multi-core, Intel® Xeon® processor E5-2600 and E5-2600 v2 product families CPUs, for up to 24 processing cores
- 24 DIMM slots for industry-standard double-data-rate 3 (DDR3) memory running up to 1866 MHz and up to 768 GB of total memory (using 32-GB DIMMs)
- Two optional, hot-pluggable SAS or SATA hard disk drives (HDDs) or solid-state drives (SSDs)
- Industry-leading 80 Gbps throughput bandwidth
- Remote management through a Cisco Integrated Management Controller (CIMC) that implements policy established in Cisco UCS Manager
- Out-of-band access by remote keyboard, video, and mouse (KVM) device, Secure Shell (SSH) Protocol, and virtual media (vMedia) as well as the Intelligent Platform Management Interface (IPMI)

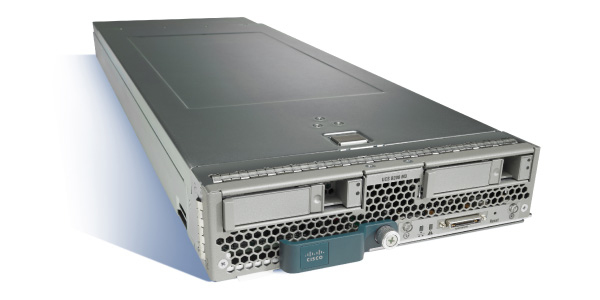

In addition, the Cisco UCS B200 M3 is a half-width blade (Figure 1). Up to eight of these high-density, two-socket blade servers can reside in the 6RU Cisco UCS 5108 Blade Server Chassis, offering one of the highest densities of servers per rack unit in the industry.
Another Cisco innovation, the Cisco UCS Virtual Interface Card (VIC) 1240 is a 4-port 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE)-capable modular LAN on motherboard (LOM) designed exclusively for the M3 generation of Cisco UCS B-Series Blade Servers. When used in combination with an optional I/O expander, the Cisco UCS VIC 1240 capabilities can be expanded up to eight ports of 10 Gigabit Ethernet. The Cisco UCS VIC 1240 enables a policy-based, stateless, agile server infrastructure that can present up to 256 PCI Express (PCIe) standards-compliant interfaces to the host that can be dynamically configured as either network interface cards (NICs) or host bus adapters (HBAs). In addition, the Cisco UCS VIC 1240 supports Cisco® Data Center Virtual Machine Fabric Extender (VM-FEX) technology, which extends the Cisco UCS fabric interconnect ports to virtual machines, simplifying server virtualization deployment.
