Cisco UCS B200 M3 Entry Plus SmartPlay Expansion Pack - Palvelin - blade - 2-teinen - 2 x Xeon E5-2620V2 / 2.1 GHz - RAM 64 Gt - SAS - pikavaihto 2.5" - ei kiin
Tätä tuotetta ei valmisteta enää tai sitä ei ole tällä hetkellä saatavilla.
Prosessori | |
Prosessorimalli | E5-2620V2 |
Asennettujen prosessorien lukumäärä | 2 |
Suoritinvalmistaja | Intel |
Prosessorin litografia | 22 nm |
Suoritinperhe | Intel Xeon |
Prosessorin kanta | LGA 2011 |
Tuetut ohjepaketit | AVX |
Prosessorin ytimet | 6 |
Järjestelmän väylänopeus | 7,2 GT/s |
Prosessorin säikeet | 12 |
Intelligent Platform Management Interface (IPMI) support | |
Prosessorin käyttötilat | 64-bit |
Suorittimen boost-taajuus | 2,6 GHz |
Prosessorin välimuisti | 15 MB |
Execute Disable Bit | |
Joutotilat | |
Thermal Monitoring -teknologia | |
Skaalautuvuus | 2S |
Tcase | 71 °C |
FSB-pariteetti | |
Saatavilla olevat upotetut vaihtoehdot | |
Väylätyyppi | QPI |
QPI-linkkien lukumäärä | 2 |
PCI Express kokoonpanot | x4, x8, x16 |
Prosessorin taajuus | 2,1 GHz |
Thermal Design Power (TDP) | 80 W |
Prosessorin koodinimi | Ivy Bridge EP |
PCI Express -väylien enimmäismäärä | 40 |
Prosessorin välimuistityyppi | Smart Cache |
Prosessorisarja | Intel Xeon E5-2600 v2 |
Fyysinen osoitelaajennus (PAE) | 46 bittiä |
Prosessorin tukema suurin sisäinen muisti | 768 GB |
Prosessorin tukemat muistityypit | DDR3-SDRAM |
Prosessorin tukemat muistin kellonopeudet | 800,1066,1333,1600 MHz |
Prosessorin tukema muistin kaistanleveys (maks.) | 51,2 GB/s |
Prosessorin tukemat muistikanavat | Quad |
Prosessori tukee ECC:tä | |
Prosessorin pakkauskoko | 52.5 x 45 mm |
Conflict Free -prosessori | |
Muisti | |
Sisäisen muistin tyyppi | DDR3-SDRAM |
Muistipaikat | 24 |
Sisäinen enimmäismuisti | 768 GB |
ECC | |
Muistin kellotaajuus | 1866 MHz |
Muistin sijoittelu (paikat x koko) | 8 x 8 GB |
Sisäinen muisti | 64 GB |
Liitettävyys | |
Ethernet LAN (RJ-45) -portit | 4 |
Virranhallinta | |
Vikasietoisen virtalähteen tuki (RPS) | |
Ympäristöolosuhteet | |
Käyttökorkeus | 0 - 3000 m |
Käytön suhteellinen kosteus (H-H) | 5 - 93% |
Varastointilämpötila | -40 - 65 °C |
Käyttölämpötila (T-T) | 10 - 35 °C |
Säilytysympäristön kosteus | 5 - 93% |
Käytön ulkopuolinen korkeus | 3000 - 12000 m |
Verkko | |
Kaapelitekniikka | 10/100/1000Base-T(X) |
Ethernet LAN | |
Ethernet-liitännän tyyppi | 10 Gigabit |
Tallennusväline | |
Yhteensopivat muistikortit | SD |
Optisen aseman tyyppi | Ei |
RAID-tasot | 0, 1 |
Käytönaikaisen vaihdon tuki | |
Integroitu kortinlukija | |
Tuettujen HDD:iden lukumäärä | 2 |
Hot-swap | |
Tallennuksen enimmäiskapasiteetti | 2 TB |
Tuetut HDD-koot | 2.5" |
RAID-tuki | |
Tuetut tallennusasemaliitännät | SAS, SATA |
Ohjelmisto | |
Käyttöjärjestelmä asennettu | |
Laajennuspaikat | |
PCI Express korttipaikan versio | 3.0 |
Muut ominaisuudet | |
Sisäänrakennettu näyttö | |
Suunnittelu | |
Telineasennus | |
Alustatyyppi | Terä |
Suorittimen erityispiirteet | |
Intel® My WiFi -teknologia (Intel® MWT) | |
Intel® Identity Protection -teknologia (Intel® IPT) | |
Intel® Anti-Theft -teknologia (Intel® AT) | |
Intel® Hyper-Threading -teknologia (Intel® HT Technology) | |
Intel® Turbo Boost -teknologia | 2.0 |
Intel® Quick Sync Video -teknologia | |
Intel® InTru™ 3D -teknologia | |
Intel® Wireless Display (Intel® WiDi) | |
Intel® FDI -teknologia | |
Intel® Clear Video HD -teknologia (Intel® CVT HD) | |
Intel® Dual Display Capable -teknologia | |
Intel® Insider™ | |
Intel® Fast Memory Access | |
Intel® Flex Memory Access | |
Intel® AES New Instructions (Intel® AES-NI) | |
Enhanced Intel SpeedStep Technology | |
Intel® Trusted Execution -teknologia | |
CPU-kokoonpano (maks.) | 2 |
Intel® Enhanced Halt State | |
Intel® Clear Video Technology MID (Intel® CVT for MID) | |
Intel® VT-x, jossa Extended Page Tables (EPT) | |
Intel® Demand Based Switching | |
Intel® Rapid Storage -teknologia | |
Intel® TSX-NI | |
Intel® Secure Key | |
Intel® 64 | |
Intel® OS Guard | |
Intel® Virtualization Technology for Directed I/O (VT-d) | |
Intel® Clear Video Technology | |
Intel® Identity Protection Technology-versio | 0,00 |
Intel® Secure Key Technology-versio | 1,00 |
Intel® Virtualization Technology (VT-x) | |
Intel® TSX-NI-versio | 0,00 |
ARK ID -prosessori | 75789 |
EAN | 0882658668838 |
Takuu | 3 kuukautta |
Source: Icecat.biz |
The Cisco® Unified Computing System™ (Cisco UCS™) combines Cisco UCS B-Series Blade Servers and C-Series Rack Servers with networking and storage access in a single converged system that simplifies management and delivers greater cost efficiency and agility with increased visibility and control. The Cisco UCS B200 M3 Blade Server delivers performance, versatility, and density without compromise. It addresses the broadest set of workloads, from IT and web infrastructure, through distributed database. The enterprise-class Cisco UCS B200 M3 Blade Server further extends the capabilities of the Cisco UCS portfolio in a half-width blade form factor. The Cisco UCS B200 M3 harnesses the power of the latest Intel® Xeon® processor E5-2600 and E5-2600 v2 product families, with up to 768 GB of RAM (using 32-GB DIMMs), two disk drives, and up to dual 4x 10 Gigabit Ethernet throughput. In addition, Cisco UCS has the architectural advantage of not having to power and cool excess switches in each blade chassis. With a larger power budget per blade server, Cisco can design uncompromised expandability and capabilities in its blade servers, as evidenced by the new Cisco UCS B200 M3, with its leading memory slot and drive capacity.
The Cisco UCS B200 M3 provides:
- One or two, multi-core, Intel® Xeon® processor E5-2600 and E5-2600 v2 product families CPUs, for up to 24 processing cores
- 24 DIMM slots for industry-standard double-data-rate 3 (DDR3) memory running up to 1866 MHz and up to 768 GB of total memory (using 32-GB DIMMs)
- Two optional, hot-pluggable SAS or SATA hard disk drives (HDDs) or solid-state drives (SSDs)
- Industry-leading 80 Gbps throughput bandwidth
- Remote management through a Cisco Integrated Management Controller (CIMC) that implements policy established in Cisco UCS Manager
- Out-of-band access by remote keyboard, video, and mouse (KVM) device, Secure Shell (SSH) Protocol, and virtual media (vMedia) as well as the Intelligent Platform Management Interface (IPMI)

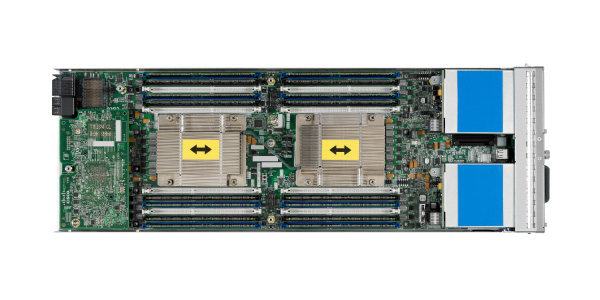

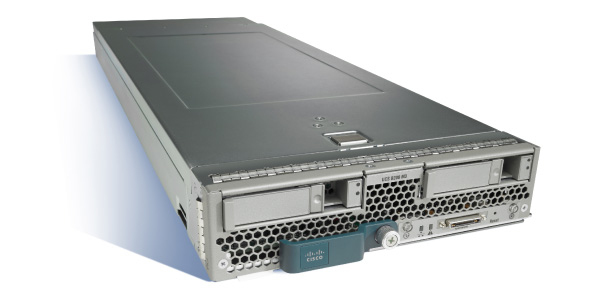

In addition, the Cisco UCS B200 M3 is a half-width blade (Figure 1). Up to eight of these high-density, two-socket blade servers can reside in the 6RU Cisco UCS 5108 Blade Server Chassis, offering one of the highest densities of servers per rack unit in the industry.
Another Cisco innovation, the Cisco UCS Virtual Interface Card (VIC) 1240 is a 4-port 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE)-capable modular LAN on motherboard (LOM) designed exclusively for the M3 generation of Cisco UCS B-Series Blade Servers. When used in combination with an optional I/O expander, the Cisco UCS VIC 1240 capabilities can be expanded up to eight ports of 10 Gigabit Ethernet. The Cisco UCS VIC 1240 enables a policy-based, stateless, agile server infrastructure that can present up to 256 PCI Express (PCIe) standards-compliant interfaces to the host that can be dynamically configured as either network interface cards (NICs) or host bus adapters (HBAs). In addition, the Cisco UCS VIC 1240 supports Cisco® Data Center Virtual Machine Fabric Extender (VM-FEX) technology, which extends the Cisco UCS fabric interconnect ports to virtual machines, simplifying server virtualization deployment.
