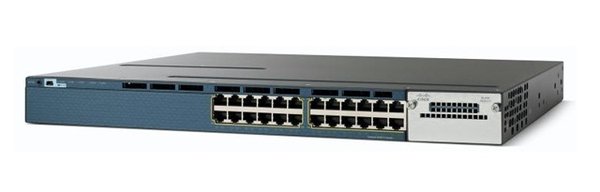

CATALYST 3560X 24 PORT

WS-C3560X-24P-E
7002,90 €
Visa price: inkl. Moms exkl. Moms
Webblager:
Obekräftad

Uppskattad leveranstid: Obekräftad
Leveranskostnad: från 6,90 €
Avhämtning från butiken0,00 €
Postens paketautomat6,90 €
Postpaket9,50 €
Till dörren-paket14,30 €
Hempaket20,60 €
Matkahuolto Närpaket8,80 €
Matkahuolto Busspaket8,60 €
Butiker:välj
Obekräftad
Produktspecifikation
Anslutningar
Typ av grundläggande RJ-45 Ethernet-portarGigabit Ethernet (10/100/1000)
Antal grundläggande RJ-45 Ethernet-portar24
Vikt & dimension
Vikt7 kg
Höjd44,5 mm
Bredd460 mm
Djup445 mm
Strömtillförsel
Strömförbrukning (vanlig)715 W
AC-inspänning100-240
Miljökrav
Altitud vid drift0 - 3000 m
Intervall för relativ operativ luftfuktighet5 - 95%
Temperaturintervall (förvaring)-40 - 70 ° C
Temperatur vid drift-5 - 40 ° C
Fuktighet (förvaring)5 - 95%
Höjd över havet i avstängt läge0 - 15000 m
Protokoll
Lednings ProtokollSNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP
Nätverk
Full duplexcheckmark
KommunikationsstandarderIEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Länkaggregeringcheckmark
Broadcast Storm-kontrollcheckmark
DHCP-klientcheckmark
DHCP-servercheckmark
Auto MDI / MDI-Xcheckmark
STP (Spanning Tree Protocol)checkmark
VLAN-stödcheckmark
10G stödcross
Dataöverföring
Adresstabellstorlek12000 poster
Switch kapacitet160 Gbit/s
Jumbo Frames stödcheckmark
Antal VLAN1005
Bevakning
Statisk portsäkerhetcheckmark
SSH / SSL-stödcheckmark
IGMP-snoopingcheckmark
Management features
Switch lagerL2/L3
Stöd för garanterad tjänstekvalitet (QoS)checkmark
Switch typhanterad
Design
CertifieringFCC Part 15 (CFR 47) A, ICES-003 A,
EN 55022 A, CISPR 22 A, AS/NZS 3548 A,
BSMI A, VCCI A, EN 55024, EN300386, EN 50082-1, EN 61000-3-2, EN 61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN 61000-6-1
Rackmonteringcheckmark
Formfaktor1U
Indikationercheckmark
Produktens färgTurkos
Staplingsbarcross
Power over Ethernet (PoE)
Strömförsörjning via Ethernet (PoE) stödcheckmark
Antal Power over Ethernet plus (PoE +)-portar24
Total Power over Ethernet (PoE)-budget435 W
Prestanda
Internminne256 MB
Medeltid mellan fel (MTBF)208218 h
Flash minne64 MB
EAN882658517174
Garanti3 månader
Source: Icecat.biz
Beskrivning

Cisco Catalyst 3750-X and 3560-X Series Switches

The Cisco® Catalyst® 3750-X and 3560-X Series Switches are an enterprise-class lines of stackable and standalone switches, respectively. These switches provide high availability, scalability, security, energy efficiency, and ease of operation with innovative features such as Cisco StackPower (available only on the Catalyst 3750‑X), IEEE 802.3at Power over Ethernet Plus (PoE+) configurations, optional network modules, redundant power supplies, and Media Access Control Security (MACsec) features. The Cisco Catalyst 3750-X Series with StackWise® Plus technology provides scalability, ease of management and investment protection for the evolving business needs. The Cisco Catalyst 3750-X and 3560-X enhance productivity by enabling applications such as IP telephony, wireless, and video for borderless network experience.

Cisco Catalyst 3750-X and 3560-X Series primary features:

- 24 and 48 10/100/1000 PoE+, non-PoE models, and 12 and 24 GE SFP port models.
- 24 and 48 10/100/1000 UPOE-capable models with Energy Efficient Ethernet (EEE) support.
- Four optional uplink network modules with GE or 10GE ports.
- Industry first PoE+ with 30W power on all ports in 1 rack unit (RU) form factor.
- Dual redundant, modular power supplies and fans.
- Media Access Control Security (MACsec) hardware-based encryption.
- Flexible NetFlow and switch-to-switch hardware encryption with the Service Module uplink.
- Open Shortest Path First (OSPF) for routed access in IP Base image.
- IPv4 and IPv6 routing, Multicast routing, advanced quality of service (QoS), and security features in hardware.
- Enhanced limited lifetime warranty (LLW) with next business day (NBD) advance hardware replacement and 90 day access to Cisco Technical Assistance Center (TAC) support.
- Enhanced Cisco EnergyWise for operational cost optimization by measuring actual power consumption of the PoE devices, reporting, and reducing energy consumption across the network.
- USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port.
