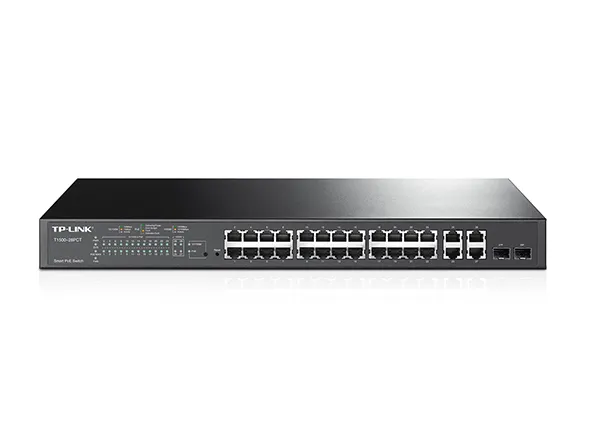

TP-LINK Smart PoE Switch T1500-28PCT - Kytkin - 24 x 10/100 (PoE) + 2 x SFP + 4 x 10/100/1000 - räkkiin asennettava - PoE

T1500-28PCT
258,90 €
Visa price: inkl. Moms exkl. Moms
Webblager:
Obekräftad

Uppskattad leveranstid: Obekräftad
Leveranskostnad: från 3,90 €
Avhämtning från butiken0,00 €
Postens paketautomat3,90 €
Postpaket5,60 €
Till dörren-paket12,10 €
Hempaket14,20 €
Matkahuolto Närpaket6,70 €
Matkahuolto Busspaket4,10 €
Butiker:välj
Obekräftad
Produktspecifikation
Systemkrav
Kompatibla operativsystemMicrosoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Anslutningar
Antal Gigabit Ethernet (koppar)-portar4
Koppar Ethernet-kablar teknik1000BASE-T,100BASE-TX,10BASE-T
Antal Fast Ethernet (koppar) portar24
Antal Combo SFP-portar2
Typ av grundläggande RJ-45 Ethernet-portarFast Ethernet (10/100)
Antal grundläggande RJ-45 Ethernet-portar24
Vikt & dimension
Höjd44 mm
Bredd440 mm
Djup220 mm
Strömtillförsel
Strömförbrukning (vanlig)222,15 W
Växelström Frekvens50/60
AC-inspänning100-240
Miljökrav
Intervall för relativ operativ luftfuktighet10 - 90%
Temperaturintervall (förvaring)-40 - 70 ° C
Temperatur vid drift0 - 40 ° C
Fuktighet (förvaring)5 - 90%
Protokoll
Lednings ProtokollSNMP v1/v2c/v3, RMON, SNTP, TFTP
Nätverk
KommunikationsstandarderIEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
Flödeskontrollcheckmark
Portspeglingcheckmark
Länkaggregeringcheckmark
Broadcast Storm-kontrollcheckmark
Auto MDI / MDI-Xcheckmark
STP (Spanning Tree Protocol)checkmark
10G stödcross
Kabeltyper som stödsCat5,Cat5e
Dataöverföring
Adresstabellstorlek8000 poster
Switch kapacitet12,8 Gbit/s
Jumbo Frames stödcheckmark
Antalet köer4
Genomströmning9,5 Mpps
Bevakning
Kryptering/säkerhetSSH,SSH-2,SSL/TLS
Åtkomstkontrollista (ACL)checkmark
SSH / SSL-stödcheckmark
IGMP-snoopingcheckmark
Management features
Switch lagerL2
Stöd för garanterad tjänstekvalitet (QoS)checkmark
Webbaserad adminstraioncheckmark
Switch typhanterad
Förpackningens innehåll
Kabel inkluderadAC
Snabbstartsguidecheckmark
Design
CertifieringCE, FCC, RoHS
Rackmonteringcheckmark
Formfaktor1U
Produktens färgSvart
Antal fläktar2 fläkt/-ar
Power over Ethernet (PoE)
Strömförsörjning via Ethernet (PoE) stödcheckmark
Antal Power over Ethernet plus (PoE +)-portar24
Total Power over Ethernet (PoE)-budget180 W
Prestanda
Uppgraderingsbar, inbyggd programvaracheckmark
Antal VLAN512
VLAN-stödcheckmark
Multicast-stödcheckmark
EAN6935364092597
Garanti5 år
Source: Icecat.biz
Beskrivning

The T1500-28PCT provides 24 10/100Mbps ports that supports 802.3at/af-compliant PoE, with a total PoE power supply up to 180W, powerful and flexible enough for users to deploy wireless access points or IP-based network surveillance cameras. The switch also comes equipped with 4 10/100/1000Mbps RJ45 ports and 2 combo SFP slots, expanding your network flexibly. In addition, it provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features.

TP-LINK Smart PoE Switch T1500-28PCT is a cost-effective product solution for the small and medium business. T1500-28PCT has useful security features. The Storm Control feature protects against Broadcast, Multicast and Unknown unicast Storm. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Anymore, the easy-to-use web management interfaces, along with SNMP and RMON, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive layer 2 switch, TP-LINK smart PoE switch T1500-28PCT provides you the ideal access-edge solution.

IEEE 802.3at/af-compliant Power over Ethernet

The T1500-28PCT supports 24 ports of IEEE 802.3at/af-compliant PoE and has a total power supply of 180W to power any 802.3at or 802.3af compliant power device. It’s an efficient and cost-effective choice to work with wireless access points, surveillance cameras, IP phones and other PoE supported devices, while getting rid of cables or power lines running around. Compact and flexible, the T1500-28PCT is ideal to flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks.

Advanced QoS features

To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.

Abundant Layer 2 features

For more application of layer 2 switches, T1500-28PCT supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.

Enterprise Level Management Features

T1500-28PCT is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface (GUI) or SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events.
