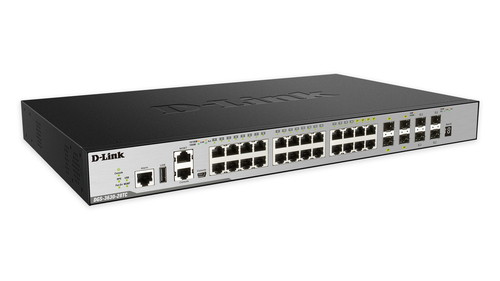

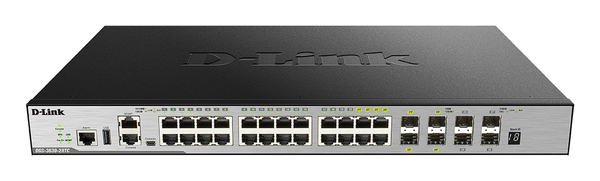

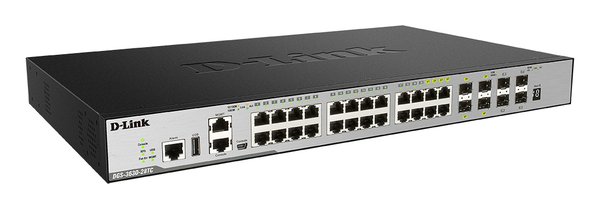

D-Link DGS 3630-28TC - Kytkin - L3 - Hallinnoitu - 20 x 10/100/1000 + 4 x combo Gigabit SFP + 4 x 10 Gigabit SFP+ - räkkiin asennettava
Tillverkare: D-LINK
ID: DGS-3630-28TC/SI
Produkten är inte tillgänglig
Produkten har utgått från sortimentet eller är inte tillgänglig för tillfället.
Produkten har utgått från sortimentet eller är inte tillgänglig för tillfället.
Produktspecifikation
Välj en eller flera funktioner för att söka efter produkter med samma specifikationer.
Produktspecifikation
Beskrivning
På lager i butiker
Leverans
Prisutveckling
Tekniska data | |
Lastpallens totalbredd | 120 cm |
Lastpallens totallängd | 110 cm |
Fraktkartongens bredd | 29,6 cm |
Fraktkartongens längd | 54,9 cm |
Fraktkartongens höjd | 45 cm |
Innerförpackningens bruttovikt | 17 kg |
Antal produkter per innerförpackning | 3 styck |
Fraktkartongens nettovikt | 14,1 kg |
Lastpallens bruttovikt (lufttransport) | 562,8 kg |
Ytterförpackningar per lastpall (lufttransport) | 32 styck |
Kvantitet per lastpall (lufttransport) | 96 styck |
Lastpallshöjd (lufttransport) | 193,5 cm |
Lastpallens bruttovikt (sjötransport) | 562,8 kg |
Ytterförpackningar per lastpall (sjötransport) | 32 styck |
Produkter per lastpall (sjötransport) | 96 styck |
Lastpallshöjd (sjötransport) | 193,5 cm |
Anslutningar | |
Antal USB 2.0 anslutningar | 1 |
Antal Gigabit Ethernet (koppar)-portar | 20 |
Konsolport | RJ-45/Mini-USB |
Antal Combo SFP-portar | 4 |
Typ av grundläggande RJ-45 Ethernet-portar | Gigabit Ethernet (10/100/1000) |
Antal grundläggande RJ-45 Ethernet-portar | 20 |
Antal SFP+-modulplatser | 4 |
Strömanslutning | AC-ingångskontakt |
Vikt & dimension | |
Vikt | 3,74 kg |
Höjd | 44 mm |
Bredd | 441 mm |
Djup | 259,8 mm |
Strömtillförsel | |
Antal strömförsörjningsaggregat | 1 |
Strömkälla | AC |
Stöd för redundant strömförsörjning (RPS) | ![]() |
Överspänningsskydd | ![]() |
Växelström Frekvens | 50 - 60 hz |
AC-inspänning | 100 - 240 V |
Strömförbrukning (max) | 42,4 W |
Strömförsörjning ingår | ![]() |
Miljökrav | |
Intervall för relativ operativ luftfuktighet | 10 - 95% |
Temperaturintervall (förvaring) | -40 - 70 °C |
Temperatur vid drift | -5 - 50 °C |
Fuktighet (förvaring) | 5 - 95% |
Värmeavgivning | 144,58 BTU/h |
Protokoll | |
Lednings Protokoll | SNMP, NTPv3/v4, Telnet |
Router-protokoll | BGP4, OSPFv3, RIP, RIP-1, RIP-2, RIPng, VRRP |
IPSG (IP Source Guard) | ![]() |
Nätverk | |
Full duplex | ![]() |
Kommunikationsstandarder | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3x, IEEE 802.3z |
Flödeskontroll | ![]() |
Portspegling | ![]() |
Länkaggregering | ![]() |
Broadcast Storm-kontroll | ![]() |
Antal VLAN | 4094 |
STP (Spanning Tree Protocol) | ![]() |
VLAN-stöd | ![]() |
routing poster | 16000 |
10G stöd | ![]() |
Koppar Ethernet-kablar teknik | 10BASE-T, 100BASE-TX, 1000BASE-T |
Ethernet Ring Protection Switching (ERPS) | ![]() |
VLAN-funktioner | IP subnet–based VLAN, MAC address-based VLAN, MVRP, Multicast VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN |
Dataöverföring | |
Adresstabellstorlek | 68000 poster |
Switch kapacitet | 128 Gbit/s |
Jumbo Frames stöd | ![]() |
Antalet köer | 8 |
Hastighet vid vidarebefordran | 95,24 Mpps |
Paketbuffertminne | 4 MB |
Antal statiska rutter | 512 |
Antal IP-gränssnitt | 256 |
Jumboramar | 12000 |
Statisk routning | ![]() |
Förpackning | |
Vikt inkl. förpackning | 5,33 kg |
Låddjup | 528 mm |
Höjd | 91 mm |
Förpackningens bredd | 415 mm |
Bevakning | |
Kryptering/säkerhet | 802.1x RADIUS, SSH, SSH-2, SSL/TLS |
MAC-adressfiltrering | ![]() |
Åtkomstkontrollista (ACL) | ![]() |
SSH / SSL-stöd | ![]() |
IGMP-snooping | ![]() |
Autentiseringstyp | IEEE 802.1x |
Loopskydd | ![]() |
BPDU-filtrering/-skydd | ![]() |
Autentisering | Gäst VLAN, Portbaserad auktorisering |
Root-skydd | ![]() |
Algoritmer för schemaläggning av köer | SP, WRR+SP, Weighted Round Robin (WRR), Weighted random early detection (WRED) |
DHCP-funktioner | DHCP auto-config, DHCP client, DHCP guarding, DHCP relay, DHCP server, DHCP snooping |
Management features | |
Switch-lager | L3 |
Stöd för garanterad tjänstekvalitet (QoS) | ![]() |
Webbaserad adminstraion | ![]() |
Systemhändelselogg | ![]() |
Switch typ | Managed |
Trafikklassificering | ![]() |
ARP-inspektion | ![]() |
Design | |
Rackmontering | ![]() |
Säkerhet | cUL, CB, CE, CCC, BSM |
Elektromagnetisk kompatibilitet | CE, FCC Class A, C-Tick, VCCI, BSMI, CCC |
Formfaktor | 1U |
LED-indikatorer | ![]() |
Produktens färg | Svart |
Staplingsbar | ![]() |
Antal fläktar | 2 fläkt/-ar |
Power over Ethernet (PoE) | |
Strömförsörjning via Ethernet (PoE) stöd | ![]() |
Prestanda | |
Medeltid mellan fel (MTBF) | 300190,46 h |
Ljudnivå Lc IEC | 52,7 dB |
Virtuell stackning (enheter) | 32 |
Dying Gasp-funktion | ![]() |
Logistikdata | |
Harmonized System (HS)-kod | 85176990 |
Multicast-stöd | ![]() |
Multicast listener discovery (MLD)-snooping | Ja |
EAN | 790069472145 |
Garanti | 5 år |
Source: Icecat.biz |
The DGS-3630 Series Gigabit L3 Stackable Managed Switches are a range of switches designed for Small to Medium Businesses (SMBs), Small to Medium Enterprises (SMEs), enterprises and ISPs. With Gigabit Ethernet SFP, 10 GbE SFP+, security features, and advanced Quality of Service (QoS), the DGS-3630 Series can act as core, distribution or access layer switches.
Stackable Managed Switches
- Designed for Small to Medium Businesses, Enterprises and ISPs
- Deliver high performance, flexibility, fault tolerance, and advanced software features
- Gigabit Ethernet SFP, 10 GbE SFP+, security features, and advanced Quality of Service (QoS), the DGS-3630 Series can act as core, distribution or access layer switches
- High port densities, switch stacking, and easy management make the DGS-3630 Series suitable for a variety of applications
- DGS-3630-28PC and DGS-3630-52PC feature Power over Ethernet, which allows PoE-powered devices to be powered by the switch through a standard Ethernet cable.
Outperforming the competition
The DGS-3630-28TC was benchmarked against a market leading competitor's device. It matched or exceeded the competitor's performance across all tests despite being significantly lower in price with a much lower power consumption.
Versatile Management
The DGS-3630 Series provides:
- Network Assistant Utility
- Industry-standard CLI
- Intuitive web-based management interface
Support for SNMP allows centralized management of a large number of devices and out-of-band management is available via a dedicated console port.
A mini-USB console port allows the DGS-3630 Series to be managed without any extra connectors, and a USB Type A port can be used to store logs, configuration, and firmware images.
High Availability and Flexibility
Includes stacking technology, which allows multiple switches to be combined to form a single physical or virtual stack.
Scale your network using just a stacking cable and without the need for stacking modules.
Increased redundancy over multiple physical units, simplifies management and provides a single IP address to manage all members in the stack.
Security, Performance & Availability
Robust set of QoS features helps ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network.
The D-Link Safeguard Engine increases the switch’s reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks.
Stackable Managed Switches
- Designed for Small to Medium Businesses, Enterprises and ISPs
- Deliver high performance, flexibility, fault tolerance, and advanced software features
- Gigabit Ethernet SFP, 10 GbE SFP+, security features, and advanced Quality of Service (QoS), the DGS-3630 Series can act as core, distribution or access layer switches
- High port densities, switch stacking, and easy management make the DGS-3630 Series suitable for a variety of applications
- DGS-3630-28PC and DGS-3630-52PC feature Power over Ethernet, which allows PoE-powered devices to be powered by the switch through a standard Ethernet cable.
Outperforming the competition
The DGS-3630-28TC was benchmarked against a market leading competitor's device. It matched or exceeded the competitor's performance across all tests despite being significantly lower in price with a much lower power consumption.
Versatile Management
The DGS-3630 Series provides:
- Network Assistant Utility
- Industry-standard CLI
- Intuitive web-based management interface
Support for SNMP allows centralized management of a large number of devices and out-of-band management is available via a dedicated console port.
A mini-USB console port allows the DGS-3630 Series to be managed without any extra connectors, and a USB Type A port can be used to store logs, configuration, and firmware images.
High Availability and Flexibility
Includes stacking technology, which allows multiple switches to be combined to form a single physical or virtual stack.
Scale your network using just a stacking cable and without the need for stacking modules.
Increased redundancy over multiple physical units, simplifies management and provides a single IP address to manage all members in the stack.
Security, Performance & Availability
Robust set of QoS features helps ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network.
The D-Link Safeguard Engine increases the switch’s reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks.
