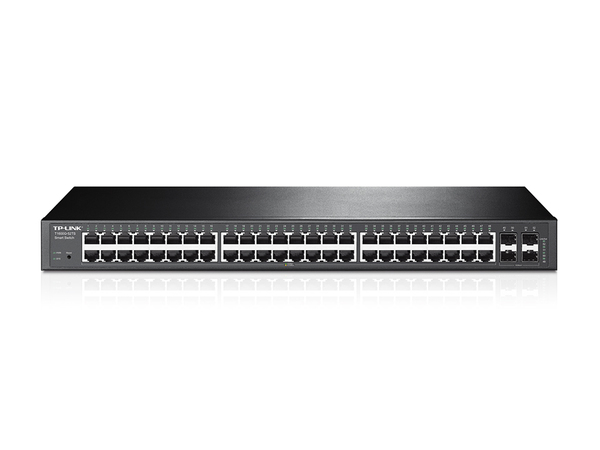

T1600G-52TS

T1600G-52TS
517,90 €
Visa price: inkl. Moms exkl. Moms
Webblager:
Obekräftad

Uppskattad leveranstid: Obekräftad
Leveranskostnad: från 4,10 €
Avhämtning från butiken0,00 €
Postens paketautomat6,90 €
Postpaket5,80 €
Till dörren-paket13,70 €
Hempaket15,30 €
Matkahuolto Närpaket6,70 €
Matkahuolto Busspaket4,10 €
Butiker:välj
Obekräftad
Produktspecifikation
Systemkrav
Kompatibla operativsystemMicrosoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Anslutningar
Antal Gigabit Ethernet (koppar)-portar48
Koppar Ethernet-kablar teknik10BASE-T,100BASE-TX,1000BASE-T
Typ av grundläggande RJ-45 Ethernet-portarGigabit Ethernet (10/100/1000)
Antal grundläggande RJ-45 Ethernet-portar48
Antal SFP-modulplatser4
Vikt & dimension
Höjd44 mm
Bredd440 mm
Djup220 mm
Strömtillförsel
Växelström Frekvens50/60
AC-inspänning100 - 240 V
Strömförbrukning (max)32,8 W
Miljökrav
Intervall för relativ operativ luftfuktighet10 - 90%
Temperaturintervall (förvaring)-40 - 70 ° C
Temperatur vid drift0 - 40 ° C
Fuktighet (förvaring)5 - 90%
Protokoll
Lednings ProtokollSNMP
Nätverk
KommunikationsstandarderIEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Flödeskontrollcheckmark
Portspeglingcheckmark
Länkaggregeringcheckmark
Broadcast Storm-kontrollcheckmark
Överföringsbegränsningcheckmark
DHCP-klientcheckmark
Auto MDI / MDI-Xcheckmark
STP (Spanning Tree Protocol)checkmark
10G stödcross
Kabeltyper som stödsCat3,Cat4,Cat5,Cat5e
Dataöverföring
Adresstabellstorlek16000 poster
Switch kapacitet104 Gbit/s
Jumbo Frames stödcheckmark
Antalet köer8
Genomströmning77,4 Mpps
Antal statiska rutter32
Antal IP-gränssnitt16
Jumboramar9216
Bevakning
Kryptering/säkerhet802.1x RADIUS,SSH,SSL/TLS
Åtkomstkontrollista (ACL)checkmark
IGMP-snoopingcheckmark
BPDU-filtrering/-skyddcheckmark
IP-MAC-portbindningcheckmark
AutentiseringPortbaserad auktorisering
Management features
Switch lagerL2+
Stöd för garanterad tjänstekvalitet (QoS)checkmark
Webbaserad adminstraioncheckmark
Systemhändelseloggcheckmark
Switch typhanterad
ARP-inspektioncheckmark
Förpackningens innehåll
Kabel inkluderadAC
Rackmonteringssatscheckmark
CD med drivrutinercheckmark
Optisk fiber
Fiberoptiska kontaktenSFP
Design
CertifieringCE, FCC, RoHS
Rackmonteringcheckmark
Formfaktor1U
Indikationercheckmark
Produktens färgSvart
Power over Ethernet (PoE)
Strömförsörjning via Ethernet (PoE) stödcross
Prestanda
Paketbuffertminne1,5 MB
Autonegotiationcheckmark
Antal VLAN4000
VLAN-stödcheckmark
Taggat VLANcheckmark
Protokollbaserat VLANcheckmark
Multicast-stödcheckmark
EAN6935364091996
Garanti5 år
Source: Icecat.biz
Beskrivning

TP-LINK JetStream Gigabit Smart Switch T1600G-52TS is a cost-effective product solution for small and medium-sized business which provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS and useful security strategies. Equipped with 48 gigabit RJ45 ports and 4 SFP slots, T1600G-52TS supports multiple useful features. Static Routing helps route internal traffic for more efficient use of network resources. The Storm Control feature protects against Broadcast, Multicast and Unknown unicast Storm. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Moreover, the easy-to-use web management interfaces, along with SNMP, RMON and Dual Image, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive L2/L2+ switch and gigabit capability, TP-LINK JetStream Gigabit Smart Switch T1600G-52TS provides you the ideal access-edge solution.

Advanced QoS Features

To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.

Abundant L2 and L2+ Features

For more application of L2 switches, T1600G-52TS supports a complete lineup of L2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Moreover, T1600G-52TS supports L2+ feature—static routing, which is a simple way to provide segmentation of the network with internal routing through the switch and helps network traffic for more efficient use.

IPv6 Support

T1600G-52TS supports various IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discovery.

Enterprise Level Management Features

T1600G-52TS is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events. And it also supports Dual Image,which provides reduced down-time for the switches, when the image is being upgraded / downgraded.

- Gigabit Ethernet connections on all ports provide full speed of data transferring
- L2+ Feature——Static Routing, helps route internal traffic for more efficient use of network resources
- Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
- IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery
- WEB/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features
