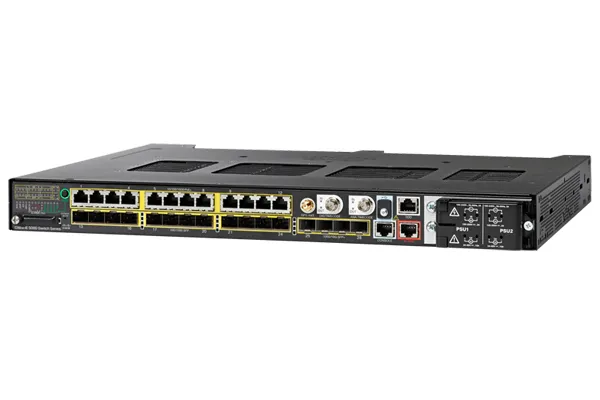

Cisco Industrial Ethernet 5000 Series - Kytkin - Hallinnoitu - 16 x Gigabit SFP + 12 x 10/100/1000 (PoE+) - räkkiin asennettava - PoE+ - TAA-yhdenmukainen - (ei
Tillverkare: CISCO
ID: IE-5000-16S12P=
Produkten är inte tillgänglig
Produkten har utgått från sortimentet eller är inte tillgänglig för tillfället.
Produkten har utgått från sortimentet eller är inte tillgänglig för tillfället.
Produktspecifikation
Välj en eller flera funktioner för att söka efter produkter med samma specifikationer.
Produktspecifikation
Beskrivning
På lager i butiker
Leverans
Prisutveckling
| Anslutningar | |
| Typ av minneskort | SD |
| Antal Gigabit Ethernet (koppar)-portar | 12 |
| Konsolport | RJ-45 |
| Typ av grundläggande RJ-45 Ethernet-portar | Gigabit Ethernet (10/100/1000) |
| Antal grundläggande RJ-45 Ethernet-portar | 12 |
| Antal SFP-modulplatser | 16 |
| Vikt & dimension | |
| Höjd | 44,5 mm |
| Bredd | 445 mm |
| Djup | 356 mm |
| Strömtillförsel | |
| Överspänningsskydd | ![]() |
| Strömförbrukning (max) | 90 W |
| Miljökrav | |
| Altitud vid drift | 0 - 4206 m |
| Intervall för relativ operativ luftfuktighet | 0 - 95% |
| Temperaturintervall (förvaring) | -40 - 85 ° C |
| Temperatur vid drift | -40 - 75 ° C |
| Fuktighet (förvaring) | 0 - 95% |
| Höjd över havet i avstängt läge | 0 - 4572 m |
| Nätverk | |
| Full duplex | ![]() |
| Kommunikationsstandarder | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Länkaggregering | ![]() |
| Broadcast Storm-kontroll | ![]() |
| Antal VLAN | 1005 |
| STP (Spanning Tree Protocol) | ![]() |
| VLAN-stöd | ![]() |
| 10G stöd | ![]() |
| Koppar Ethernet-kablar teknik | 10BASE-T, 100BASE-T, 1000BASE-TX |
| Dataöverföring | |
| Adresstabellstorlek | 16000 poster |
| Switch kapacitet | 56 Gbit/s |
| Antalet köer | 4 |
| Hastighet vid vidarebefordran | 41,67 Mpps |
| Statisk routning | ![]() |
| Bevakning | |
| Kryptering/säkerhet | SNMPv3, SSH |
| MAC-adressfiltrering | ![]() |
| SSH / SSL-stöd | ![]() |
| IGMP-snooping | ![]() |
| Management features | |
| Switch-lager | L2/L3 |
| Stöd för garanterad tjänstekvalitet (QoS) | ![]() |
| Switch typ | hanterad |
| ARP-inspektion | ![]() |
| Design | |
| Certifiering | CE, RoHS, TAA |
| Rackmontering | ![]() |
| Säkerhet | UL/CSA 60950-1, EN 60950-1 |
| Elektromagnetisk kompatibilitet | FCC 47 CFR Part 15 Class A, EN 55022A Class A, VCCI Class A |
| Formfaktor | 1U |
| LED-indikatorer | ![]() |
| Produktens färg | Svart |
| Power over Ethernet (PoE) | |
| Strömförsörjning via Ethernet (PoE) stöd | ![]() |
| Power over Ethernet (PoE)-portar kvantitet | 12 |
| Antal Power over Ethernet plus (PoE +)-portar | 12 |
| Prestanda | |
| Medeltid mellan fel (MTBF) | 390190 h |
| Flashminne | 256 MB |
| EAN | 0882658857805 |
| Source: Icecat.biz | |
The Cisco® Industrial Ethernet (IE) 5000 Series Switches with four 10 Gigabit or four 1 Gigabit Ethernet uplinks and 24 Gigabit Ethernet downlinks is a rack mount, ruggedized switch that provides Layer 2 and Layer 3 line rate aggregation and copper Power over Ethernet (PoE) connectivity in the harshest of industrial environments.
The IE 5000 Series uses superior high-bandwidth hardware switching and proven Cisco IOS® Software. The IE 5000 is highly secure and scalable for access and aggregation layer deployments. It also provides Cisco stackable technologies for advanced network reliability. The switch is built to withstand extreme environments while adhering to overall ITnetwork design, compliance, and performance requirements.
The IE 5000 Series is ideal for Industrial Ethernet applications where hardened products are required. This includes utility industries, manufacturing, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth with available 10 Gigabit Ethernet interfaces, a richer feature set, and enhanced hardware, the Cisco IE 5000 Series Switches complement the current Industrial Ethernet portfolio of products. This portfolio includes Cisco industrial Ethernet switches, such as the Cisco IE 2000, IE 3000, IE 3010, IE 4000, and IE 4010 Series Switches, as well as utility- focused products, such as the Cisco IE 2000U Industrial Ethernet switches and Cisco 2500 Series Connected Grid Switches.
Through a user-friendly web device manager, the IE 5000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security, data, video, and voice services over industrial networks.
The IE 5000 Series uses superior high-bandwidth hardware switching and proven Cisco IOS® Software. The IE 5000 is highly secure and scalable for access and aggregation layer deployments. It also provides Cisco stackable technologies for advanced network reliability. The switch is built to withstand extreme environments while adhering to overall ITnetwork design, compliance, and performance requirements.
The IE 5000 Series is ideal for Industrial Ethernet applications where hardened products are required. This includes utility industries, manufacturing, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth with available 10 Gigabit Ethernet interfaces, a richer feature set, and enhanced hardware, the Cisco IE 5000 Series Switches complement the current Industrial Ethernet portfolio of products. This portfolio includes Cisco industrial Ethernet switches, such as the Cisco IE 2000, IE 3000, IE 3010, IE 4000, and IE 4010 Series Switches, as well as utility- focused products, such as the Cisco IE 2000U Industrial Ethernet switches and Cisco 2500 Series Connected Grid Switches.
Through a user-friendly web device manager, the IE 5000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security, data, video, and voice services over industrial networks.
