Produkten har utgått från sortimentet eller är inte tillgänglig för tillfället.
Anslutningar | |
Antal grundläggande RJ-45 Ethernet-portar | 10 |
Vikt & dimension | |
Vikt | 1,17 kg |
Strömtillförsel | |
Spänning | 48 V |
Ingående ström | 1.62 A |
Uteffekt | 15.4 W |
Miljökrav | |
Temperaturintervall (förvaring) | -40 - 85 ° C |
Temperatur vid drift | -40 - 75 ° C |
Relativ fuktighet | 5 - 95% |
Omgivningstemperatur vid drift | -40 - 167 ° F |
Protokoll | |
Lednings Protokoll | SNMP v1/v2c/v3 |
Stöd för nätverksprotokoll | IGMPv1/v2, GMRP, GVRP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, Telnet, TCP, LLDP, IPv6 |
Nätverk | |
Kommunikationsstandarder | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1X, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
Flödeskontroll | |
Portspegling | |
Antal VLAN | 4094 |
STP (Spanning Tree Protocol) | |
10G stöd | |
Dataöverföring | |
Adresstabellstorlek | 8000 poster |
Tillgängliga dataöverföringshastigheter | 10/100 Mbps |
Maximal överföringshastighet | 1 Gbit/s |
Antalet köer | 4 |
Paketbuffertminne | 1 MB |
Bevakning | |
Kryptering/säkerhet | 802.1x RADIUS, HTTPS, SSH |
MAC-adressfiltrering | |
SSH / SSL-stöd | |
IGMP-snooping | |
Management features | |
MIB stödd | MIB-II, Ethernet-Like MIB, P-Bridge MIB, Q-Bridge MIB, Bridge MIB, RSTP MIB, RMON MIB1/2/3/9 |
Stöd för garanterad tjänstekvalitet (QoS) | |
Switch typ | hanterad |
Övriga egenskaper | |

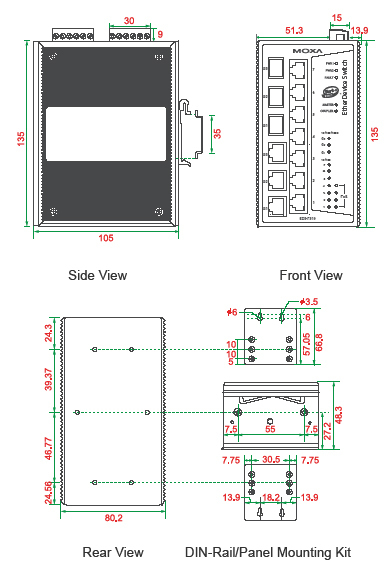

Produktstorlek (BxDxH) | 80,2 x 105 x 135 mm |
Nätverksegenskaper | Gigabit Ethernet |
Anslutningsteknologi | Kabel |
Anslutning LEDs | Y |
Design | |
Certifiering | FCC, IEC |
Säkerhet | UL, EN |
LED-indikatorer | PoE |
Power over Ethernet (PoE) | |
Strömförsörjning via Ethernet (PoE) stöd | |
Prestanda | |
Medeltid mellan fel (MTBF) | 203000 h |
Multicast-stöd | |
EAN | |
Source: Icecat.biz |

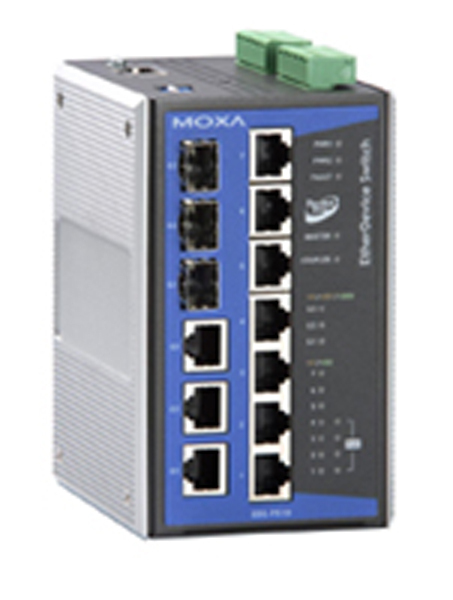

7+3G-port Gigabit PoE managed Ethernet switches
The EDS-P510 series Gigabit managed redundant Ethernet switches come standard with 4 10/100BaseT(X) 802.3af (PoE) compliant Ethernet ports and 3 combo Gigabit Ethernet ports. The EDS-P510 switches provide up to 15.4 watts of power per PoE port, and allow power to be supplied to connected devices (such as surveillance cameras, wireless access points, and IP phones) when AC power is not readily available or is cost-prohibitive to provide locally. The EDS-P510 switches are highly versatile, and their SFP fiber port can transmit data up to 80 km from the device to the control center with high EMI immunity. The Ethernet switches support advanced management and security features. The EDS-P510 series is designed especially for security automation applications such as IP surveillance, and gate of entry systems, which can benefit from a scalable backbone construction and Power-over-Ethernet support.
Features:
- Advanced PoE management function (PoE port setting, PD failure check, and PoE scheduling);
- IPv6 Ready logo awarded (IPv6 Logo Committee certified);
- IEEE 1588 PTP (Precision Time Protocol) for precise time synchronization of networks;
- DHCP Option 82 for IP address assignment with different policies;
- Modbus/TCP industrial Ethernet protocol supported;
- Turbo Ring and Turbo Chain (recovery time < 20 ms at full load), and RSTP/STP (IEEE 802.1w/D);
- IGMP snooping and GMRP for filtering multicast traffic;
- Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning;
- QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase determinism;
- Port Trunking for optimum bandwidth utilization;
- SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security;
- SNMPv1/v2c/v3 for different levels of network management;
- RMON for efficient network monitoring and proactive capability;
- Bandwidth management to prevent unpredictable network status;
- Lock port function for blocking unauthorized access based on MAC address;
- Port mirroring for online debugging;
- Automatic warning by exception through e-mail, relay output;
- Works with MXview industrial network management software;
- 40 to 75˚C operating temperature range (T model).
