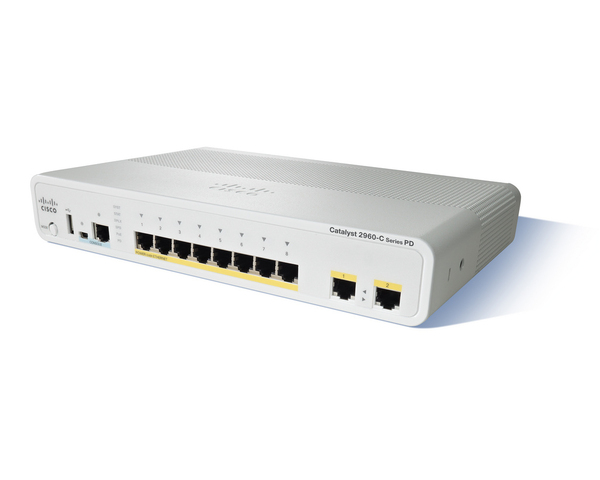

Cisco Catalyst Compact 2960CPD-8PT-L - Kytkin - Hallinnoitu - 8 x 10/100 (PoE) + 2 x 10/100/1000 - työpöytä - PoE

CISCO
WS-C2960CPD-8PT-L
873,90 € Visa Moms 0% Visa Moms 24%
Webblager: Obekräftad Uppskattad leveranstid: Obekräftad
Produktspecifikation
Beskrivning
Tillgänglig / Leverans
Prisutveckling
Anslutningar
Antal Gigabit Ethernet (koppar)-portar2
Koppar Ethernet-kablar teknik1000BASE-T,100BASE-TX,10BASE-T
Antal Fast Ethernet (koppar) portar8
Typ av grundläggande RJ-45 Ethernet-portarFast Ethernet (10/100)
Antal grundläggande RJ-45 Ethernet-portar10
Vikt & dimension
Vikt1,08 kg
Höjd44,4 mm
Bredd269 mm
Djup172 mm
Strömtillförsel
Strömförbrukning (vanlig)43 W
StrömanslutningDC-in-uttag
Miljökrav
Altitud vid drift0 - 3048 m
Intervall för relativ operativ luftfuktighet5 - 95%
Temperatur vid drift-5 - 45 ° C
Fuktighet (förvaring)5 - 95%
Höjd över havet i avstängt läge0 - 4000 m
Protokoll
Lednings ProtokollSNMP
Nätverk
Full duplexcheckmark
KommunikationsstandarderIEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Länkaggregeringcheckmark
Broadcast Storm-kontrollcheckmark
IP-routningcheckmark
STP (Spanning Tree Protocol)checkmark
10G stödcross
Dataöverföring
Adresstabellstorlek4000 poster
Switch kapacitet10 Gbit/s
Jumbo Frames stödcheckmark
Genomströmning4,2 Mpps
Jumboramar9018
Bevakning
Kryptering/säkerhet802.1x RADIUS,SSH
Åtkomstkontrollista (ACL)checkmark
SSH / SSL-stödcheckmark
IGMP-snoopingcheckmark
BPDU-filtrering/-skyddcheckmark
Management features
Switch lagerL2
Stöd för garanterad tjänstekvalitet (QoS)checkmark
Switch typhanterad
ARP-inspektioncheckmark
Design
Rackmonteringcross
SäkerhetUL 60950-1, CAN/CSA 22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CE, GB 4943, IEC 60825
Elektromagnetisk kompatibilitetFCC, EN 55022 (CISPR22), EN 55024 (CISPR24), AS/NZS, VCCI, V-3/2007.04, KCC, ANATEL, CCC, GOST
Indikationercheckmark
Produktens färgVit
Power over Ethernet (PoE)
Strömförsörjning via Ethernet (PoE) stödcheckmark
Power over Ethernet (PoE)-portar kvantitet8
Antal Power over Ethernet plus (PoE +)-portar2
Prestanda
Internminne128 MB
Medeltid mellan fel (MTBF)346590 h
Flash minne64 MB
Antal VLAN255
VLAN-stödcheckmark
Protokollbaserat VLANcheckmark
Multicast-stödcheckmark
EAN882658388569
Garanti3 månader
Source: Icecat.biz

The Cisco® Catalyst® 3560-C and 2960-C Series Switches are compact switches designed to deliver unified communications, wireless, IP video, and other applications to the retail, hospitality, education, and enterprise customer. These new compact switches are designed specifically to be placed outside the wiring closet, and they contain a number of innovative features that give customers flexibility in switch placement and end device support with Power over Ethernet (PoE) pass-through, as well as advanced security services and ease-of-management features.

Primary Features and Benefits

Flexible Placement Options with PoE Pass-Through


PoE pass-through gives users the ability to power PoE end devices, as well as the switch itself, by drawing Cisco Universal Power Over Ethernet™ (Cisco UPOE™)/PoE+ power from a wiring closet switch. This ability is ideal for wiring-constrained and space-constrained applications.

Ease of Management with Cisco Smart Install and Configuration

Cisco Smart Install and Configuration is a transparent automated technology to configure the Cisco IOS® Software image and switch configuration without user intervention. It provides a single point of management for a group of switches.

Intelligent Power Management Capabilities with Cisco EnergyWise

Cisco Catalyst 3560-C and 2960-C switches use hardware components created by Cisco, providing optimum power-saving, low-power operations for industry best-in-class power management and power consumption capabilities.

Enhanced Security Features with Cisco TrustSec Technology

Cisco TrustSec® technology secures access to the network and resources, whether wired, wireless, or VPN, making sure those endpoint devices are authorized and healthy. The Cisco Catalyst 3560-C compact switches also support MACsec.
