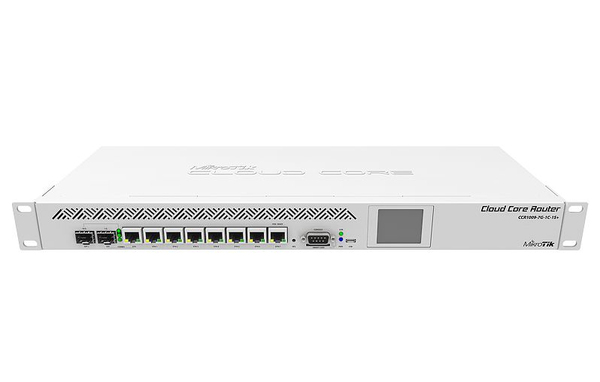

MikroTik Cloud CCR1009-7G-1C-1S+ 7-portars Gigabit Router, 9 kärnor, 2
Produkten har utgått från sortimentet eller är inte tillgänglig för tillfället.
Anslutningar | |
Antal LAN (RJ-45) anslutningar | 8 |
RS-232 port | 1 |

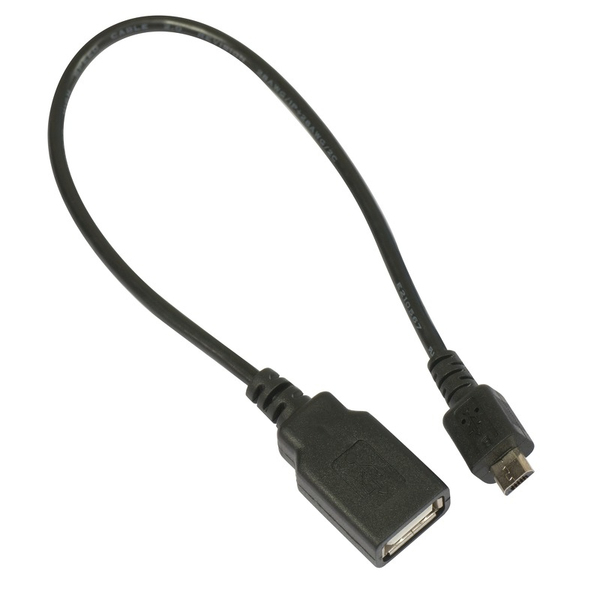

Antal USB-portar | 1 |
Antal installerade SFP+-moduler | 1 |
Vikt & dimension | |
Höjd | 47 mm |
Bredd | 444 mm |
Djup | 175 mm |

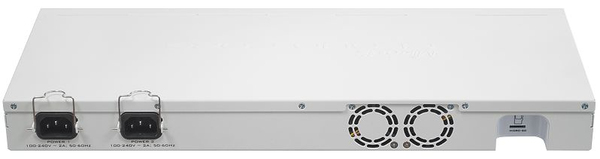

Strömtillförsel | |
Strömförbrukning (vanlig) | 34 W |
Strömförsörjning via Ethernet (PoE) stöd | |

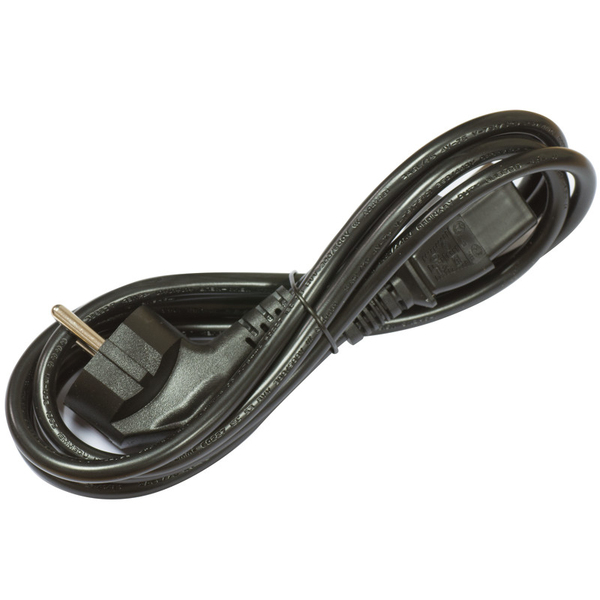

Strömkälla av typen | AC |
AC-inspänning | 100 - 240 V |
Miljökrav | |
Temperatur vid drift | -20 - 60 ° C |
Nätverk | |
Nätverksansluten (Ethernet) | |
Datahastighet för Ethernet-LAN | 10,100,1000 Mbit/s |
Design | |

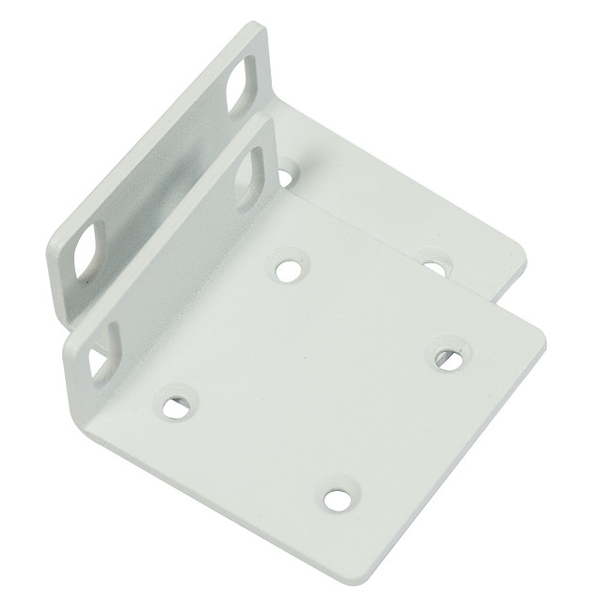

Rackmontering | |
Produktens färg | Vit |
Rackkapacitet | 1U |
Egenskaper | |
Processorfrekvens | 1200 MHz |
Internminne | 2048 MB |
Typ av internminne | DRAM |
Flash minne | 128 MB |
Installerat operativsystem | RouterOS |
Processorkärnor | 9 |
Inbyggd processor | |
Lagringsmedia | Flash |
WAN-anslutning | |
Ethernet WAN | |
SIM-kortplats | |
EAN | 709257381060 |
Garanti | 1 år |
Source: Icecat.biz |
The new updated revision of CCR1009 is here. We attempted to combine all the customer feedback and best practice in CCR device manufacturing that we learned over the last three years, since the first CCR1009 devices were launched.
Important changes
No switch-chip - the device now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.
Combo-port - a single 1Gbit software interface that has two hardware interfaces - an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of disconnect the combo-port provides hardware fail-over feature.
100Mbps SFP support - this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules.
More throughput - because the ports are now directly connected to the CPU, the new CCR1009 can achieve even higher throughput.
