Anslutningar | |
Typ av grundläggande RJ-45 Ethernet-portar | |
Antal SFP-modulplatser | 48 |
Vikt & dimension | |
Vikt | 7,86 kg |
Höjd | 43 mm |
Bredd | 444 mm |
Djup | 488 mm |
Miljökrav | |
Altitud vid drift | 0 - 3000 m |
Intervall för relativ operativ luftfuktighet | 5 - 90% |
Temperaturintervall (förvaring) | -40 - 70 ° C |
Temperatur vid drift | -5 - 40 ° C |
Nätverk | |
Full duplex | |
Kommunikationsstandarder | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ap, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z |
Antal VLAN | 4000 |
VLAN-stöd | |
Dataöverföring | |
Adresstabellstorlek | 32000 poster |
Switch kapacitet | 256 Gbit/s |
Jumbo Frames stöd | |
Hastighet vid vidarebefordran | 190,47 Mpps |
Jumboramar | 9198 |
Bevakning | |
Åtkomstkontrollista (ACL) | |
Management features | |
MIB stödd | Y |
Switch-lager | L2/L3 |
Stöd för garanterad tjänstekvalitet (QoS) | |
Switch typ | hanterad |
Design | |
Rackmontering | |
LED-indikatorer | |
Produktens färg | Grå |
Staplingsbar | |
Prestanda | |
Medeltid mellan fel (MTBF) | 281920 h |
Multicast-stöd | |
EAN | 889728193566 |
Garanti | 1 år |
Source: Icecat.biz |

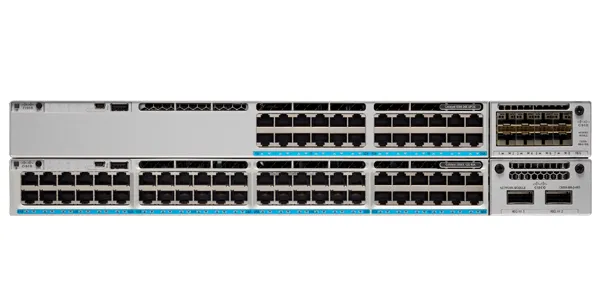

The Cisco® Catalyst® 9300 Series switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry’s most widely deployed switching platform. Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco’s lead enterprise architecture. At up to 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.
The Catalyst 9300 Series is designed for Cisco StackWise® technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower®, which delivers high-density Power over Ethernet Plus (PoE+), 60W Cisco Universal Power over Ethernet (Cisco UPOE) and 90W Cisco UPOE+© ports. The switches are based on the Cisco Unified Access™ Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS® XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.
