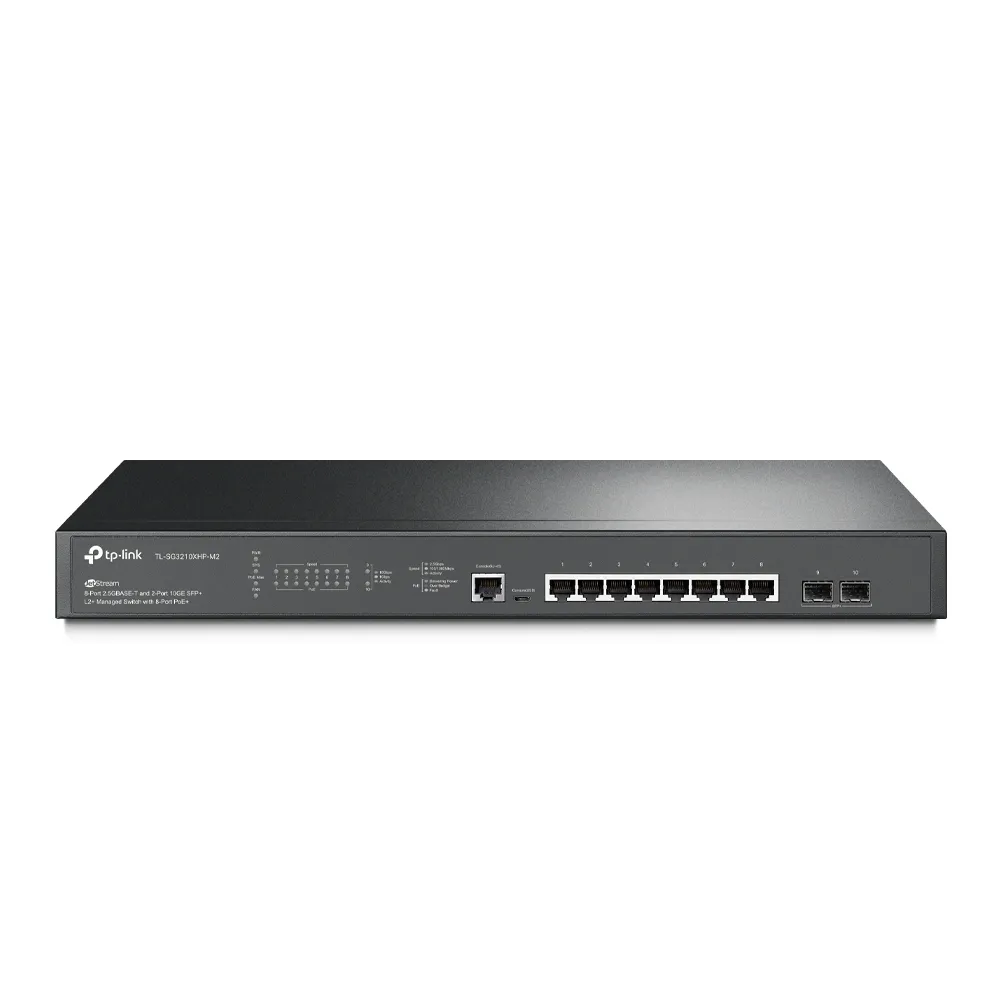

TP-Link JetStream™ 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+

TP-Link JetStream™ 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+

Tillverkare: TP-LINK
ID: TL-SG3210XHP-M2
494,90 € Visa Moms 0% Visa Moms 24%
Webblager: 5 st Beräknad leverans: 20.05 - 23.05
Produktspecifikation
Beskrivning
På lager i butiker
Leverans
Prisutveckling
Anslutningar
KonsolportRJ-45/micro-USB
Typ av grundläggande RJ-45 Ethernet-portar2.5G Ethernet (100/1000/2500)
Antal grundläggande RJ-45 Ethernet-portar8
Antal SFP+-modulplatser2

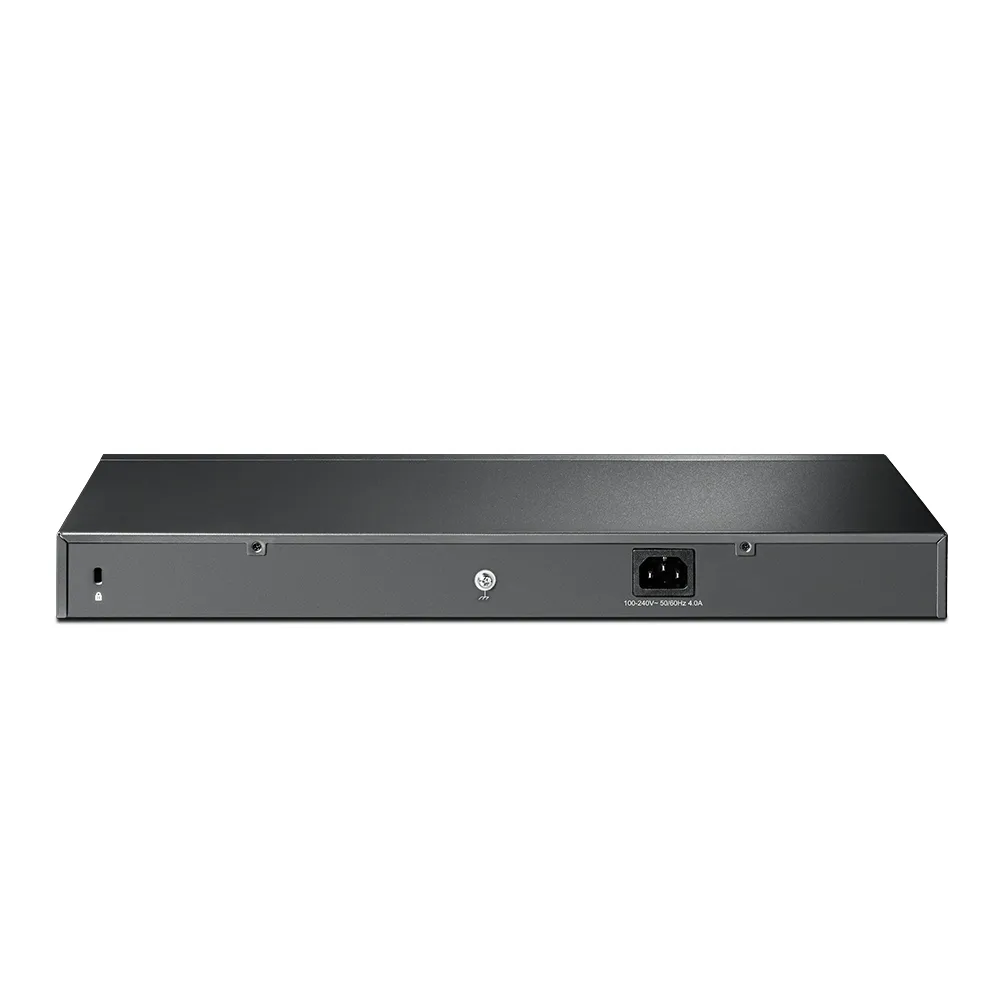

StrömanslutningAC-ingångskontakt
Vikt & dimension
Höjd44 mm
Bredd440 mm
Djup180 mm
Strömtillförsel
Växelström Frekvens50/60 hz
AC-inspänning100 - 240 V
Strömförsörjning ingårcheckmark
Miljökrav
Intervall för relativ operativ luftfuktighet10 - 90%
Temperaturintervall (förvaring)-40 - 70 ° C
Temperatur vid drift0 - 45 ° C
Fuktighet (förvaring)5 - 90%
Nätverk
KommunikationsstandarderIEEE 802.1D,IEEE 802.1s,IEEE 802.1w
Flödeskontrollcheckmark
Portspeglingcheckmark
Länkaggregeringcheckmark
Broadcast Storm-kontrollcheckmark
Överföringsbegränsningcheckmark
IP-routningcheckmark
Datahastighet för Ethernet-LAN100,1000,2500 Mbit/s
STP (Spanning Tree Protocol)checkmark
Head-of-line (HOL) blockeringcheckmark
VLAN-stödcheckmark
routing poster128
10G stödcheckmark
Dataöverföring
Adresstabellstorlek16000 poster
Switch kapacitet80 Gbit/s
Lagra-och-vidarebefordracheckmark
Vidarebefordran ränta59,52 Mpps
Förpackning
Kabel inkluderadAC
Snabbstartsguidecheckmark
FörpackningstypLåda
Bevakning
MAC-adressfiltreringcheckmark
Statisk portsäkerhetcheckmark
SSH / SSL-stödcheckmark
IGMP-snoopingcheckmark
Lösenordsskyddcheckmark
AutentiseringMAC-baserad auktorisering, Portbaserad auktorisering
Management features
MIB stöddJa
Switch-lagerL2+
Stöd för garanterad tjänstekvalitet (QoS)checkmark
Webbaserad adminstraioncheckmark
Systemhändelseloggcheckmark
Switch typhanterad
ARP-inspektioncheckmark
Design
CertifieringCE, FCC, RoHS
Rackmonteringcheckmark
Produktens färgSvart
Antal fläktar2 fläkt/-ar
Power over Ethernet (PoE)
Strömförsörjning via Ethernet (PoE) stödcross
Multicast-stödcheckmark
Multicast listener discovery (MLD)-snoopingJa
EAN6935364030797
Garanti5 år
Source: Icecat.biz

Ultrafast 2.5G PoE+ Managed Switch with 10G Uplink for a Complete Omada Network

2.5G PoE+ Ports for WiFi 6
8× 2.5 Gbps Ports Unlock the Full Potential of WiFi 6 APs

10G Lightning-Fast Uplink Connection
2× 10 Gbps SFP+ Slots for High-Bandwidth Connectivity

PoE+ Output
8 PoE+ Ports with Total 240 W Power Budget*

Centralized Cloud Management
SDN Solutions Integration for a Highly Efficient Network

Unlock the Full Potential of WiFi 6
with Multi-Gigabit PoE+ Ports

Featuring 8× 2.5 Gbps PoE+ ports, the switch is capable of future network expansion and deployment, providing sufficient bandwidth for incoming WiFi 6 APs. Designed to use a single Ethernet cable for both data and power transmission, it supports up to 240 W total PoE power budget* and flexible installation to fit in various application scenarios.

Enterprise Switch
with 10G Uplink

2× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to servers and other switches are easily built.

Software-Defined Networking (SDN) with Cloud Access
Omada’s Software-Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses, and ISPs

Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.

Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.

ISP Features
sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.

IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
