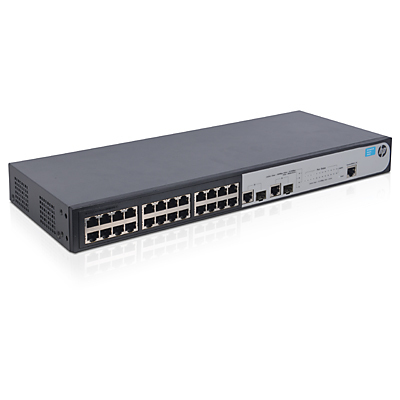

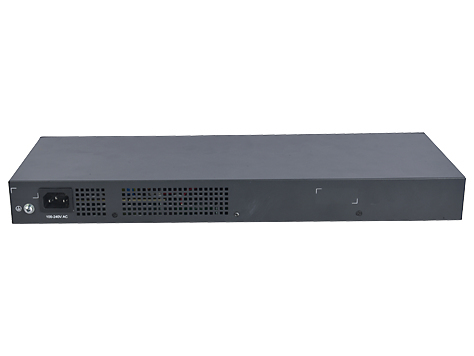

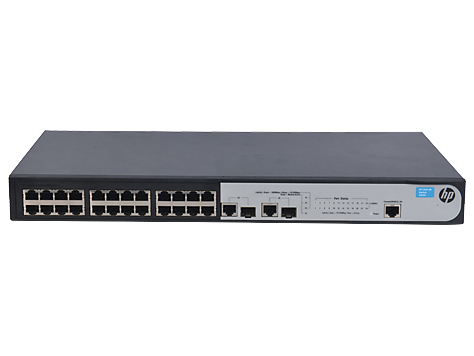

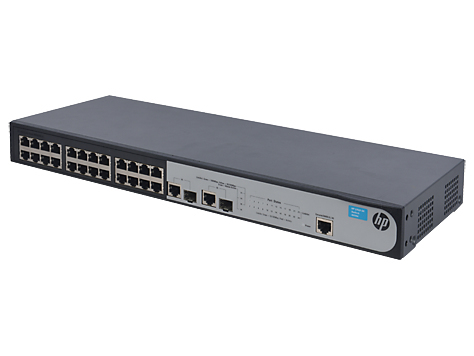

HPE 1910-24 Switch. 24x RJ45 autosensing 10/100TX porttia + 2x SFP/1000T dual-personality porttia . Sis 19" räkkiasennussarjan. Web-selain hallinta. Layer 3 sta
Produkten har utgått från sortimentet eller är inte tillgänglig för tillfället.
Anslutningar | |
Antal Combo SFP-portar | 2 |
Antal installerade SFP-moduler | 2 |
Typ av grundläggande RJ-45 Ethernet-portar | Fast Ethernet (10/100) |
Antal grundläggande RJ-45 Ethernet-portar | 24 |
Vikt & dimension | |
Vikt | 2,2 kg |
Höjd | 44 mm |
Bredd | 440 mm |
Djup | 173 mm |
Strömtillförsel | |
Strömförbrukning (vanlig) | 12 W |
Växelström Frekvens | 50/60 hz |
AC-inspänning | 100-240 |
Nätverk | |
Full duplex | |
Kommunikationsstandarder | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
Broadcast Storm-kontroll | |
Överföringsbegränsning | |
VLAN-stöd | |
10G stöd | |
Automatisk avkänning | |
Dataöverföring | |
Adresstabellstorlek | 8192 poster |
Switch kapacitet | 8,8 Gbit/s |
Latens (10-100 Mbps) | 5 ps |
Latens (1 Gbps) | 5 ps |
Genomströmning | 6.6 Mpps |
Bevakning | |
Åtkomstkontrollista (ACL) | |
SSH / SSL-stöd | |
Management features | |
Switch-lager | L3 |
Stöd för garanterad tjänstekvalitet (QoS) | |
Switch typ | Managed network switch |
Design | |
Rackmontering | |
Produktens färg | Grå |
Power over Ethernet (PoE) | |
Strömförsörjning via Ethernet (PoE) stöd | |
Prestanda | |
Internminne | 128 MB |
Flashminne | 32 MB |
Paketbuffertminne | 0,5 MB |
EAN | 0887758142516 |
Garanti | 5 år |
Source: Icecat.biz |
HP 1910 switches are advanced smart managed fixed-configuration Gigabit and Fast Ethernet switches designed for small businesses in an easy-to-administer solution. The series has 8 gigabit models and 5 Fast Ethernet models. The gigabit models are : 8-, 16-, 24-, and 48-port 10/100/1000 non-PoE models; and two 8-port and two 24-port 10/100/1000 PoE models. Gigabit models have additional true Gigabit SFP ports for fiber connectivity. The Fast Ethernet models are : 8-. 24- and 48- 10/100 non-PoE models and 8-, 24- 10/100 PoE+ models. The Fast Ethernet models come with additional 2 combo uplink ports . All HP 1910 models support rack mounting or desktop operation. Customizable features include basic layer 2 features like VLANs and link aggregation as well as advanced features such as Layer 3 static routing, IPv6, ACLs and Spanning Tree Protocols. HP 1910 switches come with a lifetime warranty covering the unit, fans, and power supplies.
Management
• Simple Web management: allows for easy management of the switch- even by nontechnical users- through an intuitive Web GUI; http and secure http (https) is supported
Quality of Service (QoS)
• Broadcast control: allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic
Connectivity
• IPv6: IPv6 host: enables switches to be managed and deployed at the IPv6 network's edge. IPv6 routing: supports IPv6 static routes. MLD snooping: forwards IPv6 multicast traffic to the appropriate interface, preventing traffic flooding. IPv6 ACL/QoS: supports ACL and QoS for IPv6 network traffic.
Security
• Advanced access control lists (ACLs): enables network traffic filtering and enhances network control using MAC- and IP-based ACLs; time-based ACLs allow for greater flexibility with managing network access
Performance
• Half-/full-duplex auto-negotiating capability on every port: doubles the throughput of every port
Layer 2 switching
• VLAN support and tagging: supports IEEE 802.1Q (4,094 VLAN IDs) and 256 VLANs simultaneously
Layer 3 services
• Address Resolution Protocol (ARP): determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network
