Anslutningar | |
Antal Gigabit Ethernet (koppar)-portar | 4 |
Antal grundläggande RJ-45 Ethernet-portar | 48 |
Vikt & dimension | |
Vikt | 3,08 kg |
Miljökrav | |
Intervall för relativ operativ luftfuktighet | 10 - 95% |
Temperaturintervall (förvaring) | -10 - 70 ° C |
Temperatur vid drift | 0 - 45 ° C |
Fuktighet (förvaring) | 10 - 95% |
Omgivningstemperatur vid drift | 32 - 113 ° F |
Protokoll | |
Lednings Protokoll | SNMP v1, 2c, 3 |
Nätverk | |
Full duplex | |
Kommunikationsstandarder | IEEE 802.1ag,IEEE 802.1X,IEEE 802.3u,IEEE 802.3x |
Flödeskontroll | |
Länkaggregering | |
Auto MDI / MDI-X | |
STP (Spanning Tree Protocol) | |
10G stöd | |
Dataöverföring | |
Tillgängliga dataöverföringshastigheter | 10/100/1000 Mbps |
Switch kapacitet | 17,6 Gbit/s |
Maximal överföringshastighet | 1 Gbit/s |
Genomströmning | 13100000 pps |
Bevakning | |
Kryptering/säkerhet | 802.1x RADIUS |
SSH / SSL-stöd | |
Management features | |
MIB stödd | IEEE 8021-PAE-MIB, IEEE 8023-LAG-MIB, RFC 1213, RFC 1493, RFC 175, RFC 190, RFC 2013, RFC 2096, RFC 2233, RFC 2273, RFC 2571, RFC 2572, RFC 2573, RFC 2574, RFC 2618, RFC 2620, RFC 2665, RFC 2674, RFC 2688, RFC 2737, RFC 2819, RFC 2863, RFC 2925, RFC 3414, RFC 3415 |
Switch typ | Unmanaged network switch |
Övriga egenskaper | |
Produktstorlek (BxDxH) | 439,4 x 231,1 x 43,2 mm |
Minne och processor | 64MB SDRAM |
Strömförsörjning | 100–240V, 50/60Hz |
Elektromagnetisk emission | VCCI A, EN 55022 A, EN 55024, ICES-003 A |
Dimension (B x D x H) (imperial) | 439,4 x 231,1 x 43,2 mm (17.3 x 9.1 x 1.7") |
Anslutningsteknologi | Wired |
Vikt (imperial) | 6,8 |
Design | |
Säkerhet | CSA 22.2 No. 60950, UL 60950-1, IEC 60950-1, EN 60950-1 |
Power over Ethernet (PoE) | |
Strömförsörjning via Ethernet (PoE) stöd | |
Prestanda | |
Processorfrekvens | 200 MHz |
Staplingsbar | |
Inbyggd processor | Broadcom 4704 |
Paketbuffertminne | 0,256 MB |
EAN | 0885631420300 |
Garanti | 1 år |
Source: Icecat.biz |

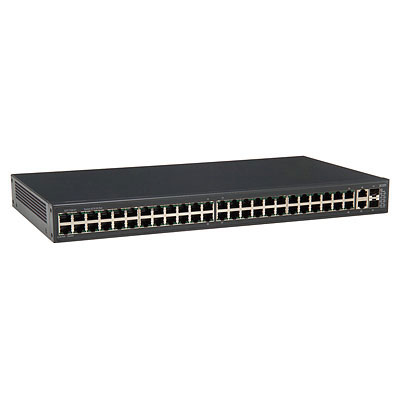

HP E4210 Switch Series are entry-level 10/100 Ethernet LAN switches with enterprise-class quality of service (QoS), security, and management features, delivering high value for network administrators looking for an economical edge device. Available Power over Ethernet (PoE) models are ideal for Voice over IP and wireless networking installations, while non-PoE models are also available for simple port expansion. Dual-personality ports allow flexibility, setting them apart from lower-end devices. The series supports an industry-standard command-line interface, Web-based administration, and SNMP management. Switches can be clustered in any combination up to 255 units for simplified administration. In addition to rack-mount models, HP E4210 switches are available in small form factor units for enterprise branch and small workgroup deployments, in both PoE and non-PoE versions, with the same manageability as the larger rack-mount models.
Management
• Secure Web GUI: provides a secure, easy-to-use graphical interface for configuring the module via HTTPS
Connectivity
• Gigabit uplinks: dual-personality ports for either 10/100/1000 or mini-GBIC SFP connectivity for increased connectivity flexibility
Manageability
• RMON (remote monitoring): provides advanced monitoring and reporting capabilities for statistics, history, alarms, and events
Layer 2 switching
• GARP VLAN Registration Protocol (GVRP): allows automatic learning and dynamic assignment of VLANs
Security
• Access control lists (ACLs): provide IP Layer 3 filtering based on source/destination IP address/subnet and source/destination TCP/UDP port number (may not apply to all models; see specifications for more details)
Convergence
• LLDP-MED (Media Endpoint Discovery): is a standard extension of LLDP that stores values for parameters such as QoS and VLAN to automatically configure network devices such as IP phones
Quality of Service (QoS)
• Traffic prioritization (IEEE 802.1p): allows real-time traffic classification mapped to four hardware queues per port
