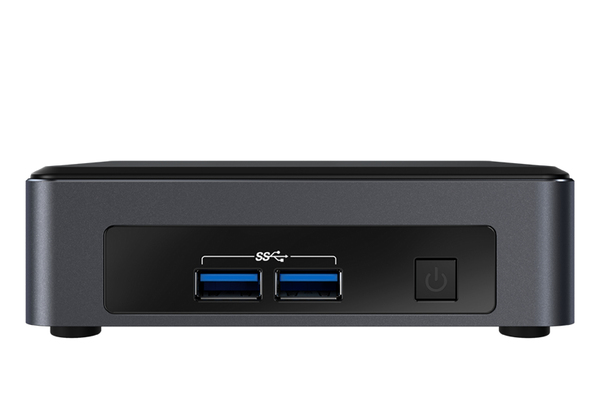

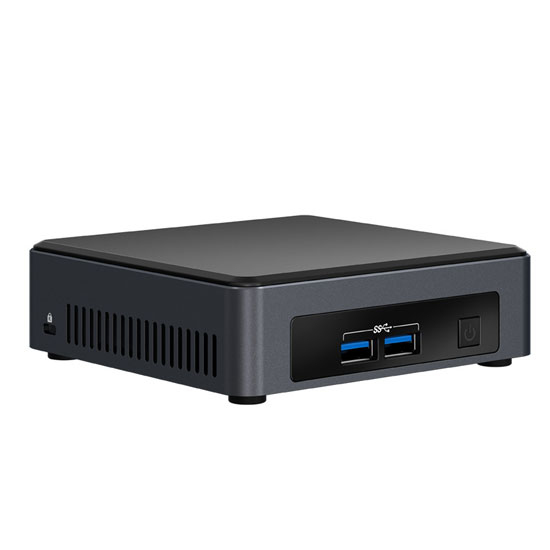

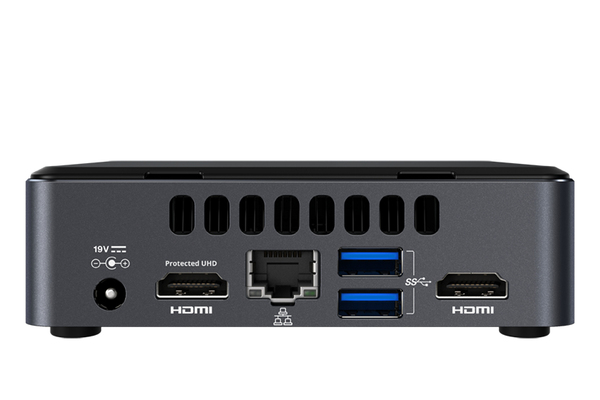

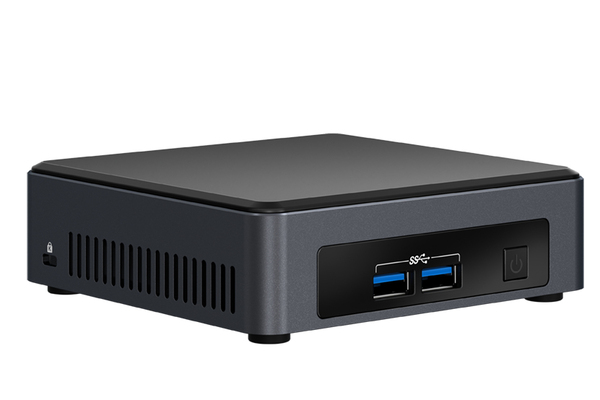

INTEL NUC NUC7i7DNK2E Core i7-8650U Max 32GB DDR4 1,2V RAM Max 1xM.2 Drive Intel UHD Graphics 620 vPro Technology

Manufacturer: INTEL
ID: BLKNUC7I7DNK2E
Product unavailable
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
Technical details
USB ports quantity0
4
Product type11
StatusLaunched
Processor
Processor modeli7-8650U
Processor manufacturerIntel
Processor lithography14 nm
L3 cache8 MB
Processor familyIntel Core i7
Processor cores4
Processor threads8
Built-in processorcheckmark
Processor boost frequency4.2 GHz
Processor cache8 MB
CPU configuration (max)1
Processor frequency1.9 GHz
Thermal Design Power (TDP)15 W
Processor codenameKaby Lake R
Maximum internal memory supported by processor32 GB
ECC supported by processorcross
Product familyIntel® NUC Kits
Product seriesIntel® NUC Kit with 8th Generation Intel® Core™ Processors
Product codenameDawson Canyon
Memory
Maximum internal memory32 GB
ECCcross
Number of DIMM slots2
Memory bandwidth (max)34.1 GB/s
Supported memory clock speeds2133,2400 MHz
Supported memory typesDDR4
Memory channelsDual-channel
Memory slots typeSO-DIMM
Internal memory0GB
Number of memory slots2
Ports & interfaces
Serial ports quantity1
HDMI ports quantity2
HDMI version2.0a
Number of SATA III connectors2
USB version2.0/3.2 Gen 1 (3.1 Gen 1)
Serial port via internal headercheckmark
USB ports quantity4
Graphics outputDual HDMI 2.0a, 4-lane eDP 1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity4
M.2 card slot (storage)2280 (M-key)
M.2 card slot (wireless)22x30 (key E) slot
Weight & dimensions
Height36 mm
Width115 mm
Depth111 mm
Energy management
Power supply typeExternal AC adapter
Networking
Wi-Fi standardsWi-Fi 5 (802.11ac)
Ethernet LANcheckmark
Bluetoothcheckmark
LAN controllerIntel® I219-LM
Wi-Ficheckmark
Top Wi-Fi standardWi-Fi 5 (802.11ac)
WLAN controller modelIntel Dual Band Wireless-AC 8265
Storage
Total storage capacity0GB
Storage drive interfaceM.2, Serial ATA
Number of storage drives supported1
Storage drive sizes supportedM.2
Storage mediacross
Supported storage drive typesHDD & SSD
SSD form factorM.2
Internal I/O
Number of SATA III connectors2
Total number of SATA connectors2
Operating system/software
Operating system installedcross
Expansion slots
PCI Express x4 slots1
PCI Express x1 slots1
PCI Express slots version3.0
PCI Express configurations1x2+2x1,1x4,2x2,4x1
Other features
Maximum internal memory32768 MB
Number of SATA connectors2
DC input voltage12 - 24 V
Embedded options availablecheckmark
Serial port via internal headercheckmark
Thermal Design Power (TDP)15 W
Launch dateQ1'18
Additional headersFront_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); HDMI_CEC; Internal 2x2 power connector
Processor ARK ID124968
Design
Chassis typeUCFF
Product colourBlack
Cooling typePassive
Product typeMini PC barebone
StatusLaunched
Product familyIntel® NUC Kits
Product seriesIntel® NUC Kit with 8th Generation Intel® Core™ Processors
Product codenameDawson Canyon
ARK ID130392
Graphics
Maximum graphics card memory32000 MB
Graphics card familyIntel
On-board graphics card modelIntel® UHD Graphics 620
On-board graphics cardcheckmark
Number of displays supported2
Processor special features
Trusted Platform Module (TPM)checkmark
Intel® My WiFi Technology (Intel® MWT)checkmark
Intel® Identity Protection Technology (Intel® IPT)checkmark
Intel® Anti-Theft Technology (Intel® AT)checkmark
Intel® Smart Response Technologycheckmark
Intel® Hyper Threading Technology (Intel® HT Technology)checkmark
Intel® Turbo Boost Technology2.0
Intel® Quick Sync Video Technologycheckmark
Intel® InTru™ 3D Technologycheckmark
Intel® Clear Video HD Technology (Intel® CVT HD)checkmark
Intel Flex Memory Accesscheckmark
Intel® AES New Instructions (Intel® AES-NI)checkmark
Enhanced Intel SpeedStep Technologycheckmark
Execute Disable Bitcheckmark
Idle Statescheckmark
Thermal Monitoring Technologiescheckmark
Intel Trusted Execution Technologycheckmark
Intel VT-x with Extended Page Tables (EPT)checkmark
Embedded options availablecross
Intel Rapid Storage Technologycheckmark
Trusted Platform Module (TPM) version2.0
Intel® High Definition Audio (Intel® HD Audio)checkmark
Intel TSX-NIcheckmark
Intel® Secure Keycheckmark
Intel 64checkmark
Intel Stable Image Platform Program (SIPP)checkmark
Intel® OS Guardcheckmark
Intel ME Firmware Version11.8
Intel Virtualization Technology for Directed I/O (VT-d)checkmark
Intel Clear Video Technologycheckmark
Intel Virtualization Technology (VT-x)checkmark
Performance
Motherboard form factorUCFF
Processor socketBGA 1356
Compatible operating systemsWindows 10, 64-bit*|Windows 10 IoT Enterprise*
Trusted Platform Module (TPM)checkmark
Number of processors supported1
Trusted Platform Module (TPM) version2.0
Supported RAID configurationN/A
EAN5032037122061
Warranty1 year

Intel® Trusted Execution Technology for safer computing is a versatile set of hardware extensions to Intel® processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. It enables an environment where applications can run within their own space, protected from all other software on the system.

Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.

Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel® Rapid Storage Technology provides protection, performance, and expandability for desktop and mobile platforms. Whether using one or multiple hard drives, users can take advantage of enhanced performance and lower power consumption. When using more than one drive the user can have additional protection against data loss in the event of hard drive failure. Successor to Intel® Matrix Storage Technology.
