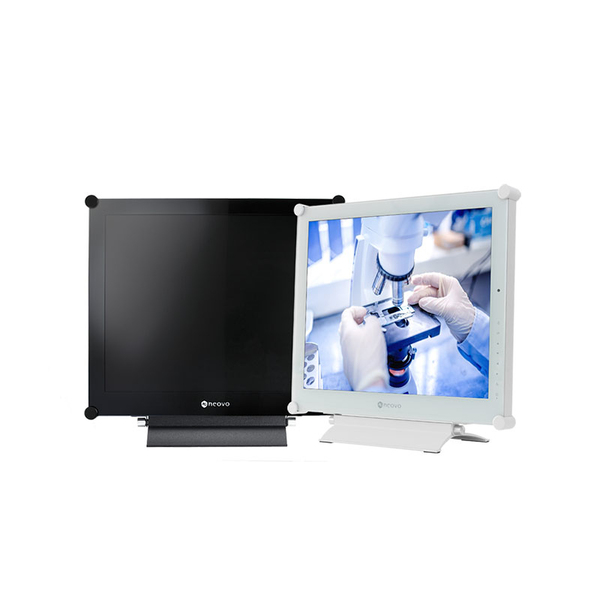

Neovo 17" X-17E, HD, TFT - monitor

Manufacturer: NEOVO
ID: X-17E
Product unavailable
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
Display
Pixel pitch0.264 x 0.264 mm
Contrast ratio (typical)1000:1
Viewing angle, horizontal170°
Viewing angle, vertical160°
Display diagonal43.180 cm (17")
Response time3 ms
Display resolution1280 x 1024 pixels
Digital horizontal frequency24 - 83 kHz
Digital vertical frequency50 - 75 Hz
Supported graphics resolutions1280 x 1024 (SXGA)
Touchscreencross
Contrast ratio (dynamic)20000000:1
Backlight typeLED
Display technologyLED
Native aspect ratio5:4
HD typeSXGA
Panel typeTN
Screen shapeFlat
Display number of colours16.78 million colours
Surface hardness9H
NTSC coverage (typical)72%
Display brightness (typical)250 cd/m²
RGB colour spaceNTSC
Ports & interfaces
Audio inputYes
DVI portcheckmark
VGA (D-Sub) ports quantity1
DVI-D ports quantity1
HDMI ports quantity1
HDMI version1.4
HDMIcheckmark
DisplayPorts quantity1
DisplayPort version1.2a
Built-in USB hubcross
Weight & dimensions
Width (with stand)409.4 mm
Height (with stand)398.2 mm
Depth (with stand)175 mm
Weight (without stand)5.2 kg
Height (without stand)361.9 mm
Width (without stand)409.4 mm
Depth (without stand)64.5 mm
Weight (with stand)6 kg
Energy management
Power consumption (typical)19 W
Power consumption (off)0.3 W
Power consumption (standby)0.5 W
Energy efficiency scaleA to G
Energy efficiency class (SDR)E
Energy consumption (SDR) per 1000 hours13 kWh
Operational conditions
Operating relative humidity (H-H)10 - 90%
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 95%
Packaging data
Package weight7.5 kg
Package depth225 mm
Package height506 mm
Package width506 mm
Ergonomics
Cable lock slotcheckmark
Height adjustmentcross
Tilt angle range0 - 20°
Picture-in-Picturecheckmark
Panel mounting interface75 x 75,100 x 100 mm
Tilt adjustmentcheckmark
Cable lock slot typeKensington
VESA mountingcheckmark
Packaging content
Cables includedAC, Audio (3.5mm), VGA
Quick start guidecheckmark
Stand includedcheckmark
Other features
AC adapter includedcheckmark
Design
Product colourBlack
Housing materialMetal
Market positioningIndustrial
Performance
NVIDIA G-SYNCcross
AMD FreeSynccross
Multimedia
RMS rated power4 W
Built-in speaker(s)checkmark
Built-in cameracross
Number of speakers2
Logistics data
Harmonized System (HS) code85285210
Sustainability
Sustainability certificatesRoHS, Low Voltage Directive (LVD), WEEE, CE, REACH
European Product Registry for Energy Labelling (EPREL) code444555
EAN4710739594898

The X-17E 5:4 semi-industrial monitor with the metal casing is designed for reliable 24/7 operation in demanding environments. With selectable gamma curves and versatile connectivity, this monitor provides an optimal visual experience with excellent colour, brightness, and contrast ratio. NeoV Optical Glass screen and corrosion-resistant metal casing shield it from scratches and chemical exposure which make it ideal for public, laboratory, and light industrial applications.

PROTECTIVE GLASS TO WITHSTAND CHEMICAL EXPOSURE
The NeoV Optical Glass attached to the X-17E screen is scratch-resistant with anti-acid and anti-alkali coating treatment and tough enough to withstand repeated cleaning.

DURABLE IN LIGHT INDUSTRIAL ENVIRONMENT
Its corrosion-resistant metal casing provides enhanced heat dissipation, making the X-17E semi-industrial monitor durable for demanding environments.

VERSATILITY, PRODUCTIVITY AND COMPATIBILITY
The X-17E allows viewing critical data and engaging multiple video sources with versatile connectivity, including DisplayPort, HDMI, DVI, and VGA. The PIP/PBP option allows for increased productivity and efficiency. Selectable aspect ratio and zoom functions provide compatibility with different video sources.

PATENTED ANTI-BURN-IN TECHNOLOGY
AG Neovo’s patented Anti-Burn-in technology tackles the LCD monitor burn-in effect, otherwise known as a ghost image on the screen. Burn-in images result in the polarisation of the liquid crystal material contained within the TFT LCD panel. The Anti-Burn-in technology prolongs the lifetime of AG Neovo monitors featuring this technology to secure user’s investment.

CONSISTENT DESIGN WITH A LONGER LIFETIME
Replacing AG Neovo semi-industrial monitors never requires users to change their whole infrastructure. This is because AG Neovo offers a consistent form factor and long product life cycles. Even as technology advances, no change is made to exterior dimensions or design.

ENHANCED GAMMA CORRECTION
Selectable gamma curves visually optimise different kinds of images. The AG Neovo specialised image settings enhance colour, brightness, sharpness and contrast ratio, allowing the X-17E semi-industrial monitor with a metal casing to improve the light, shadows and colour balance of videos.
