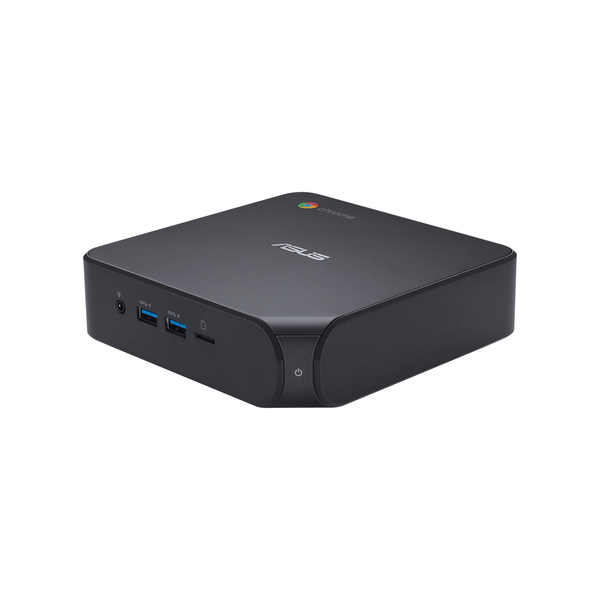

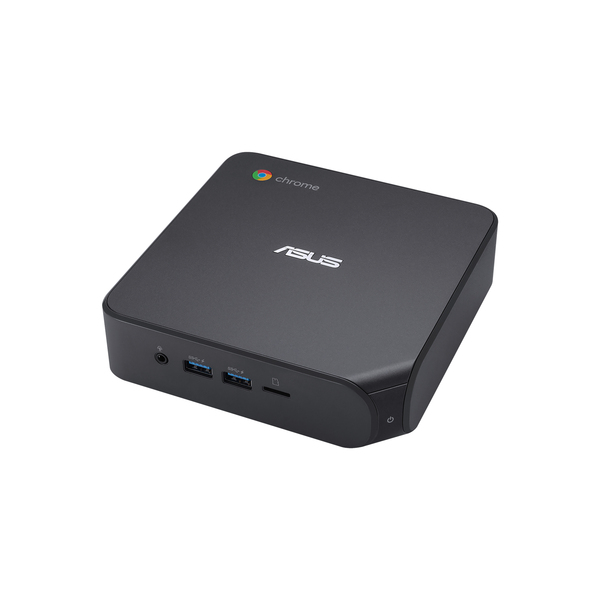

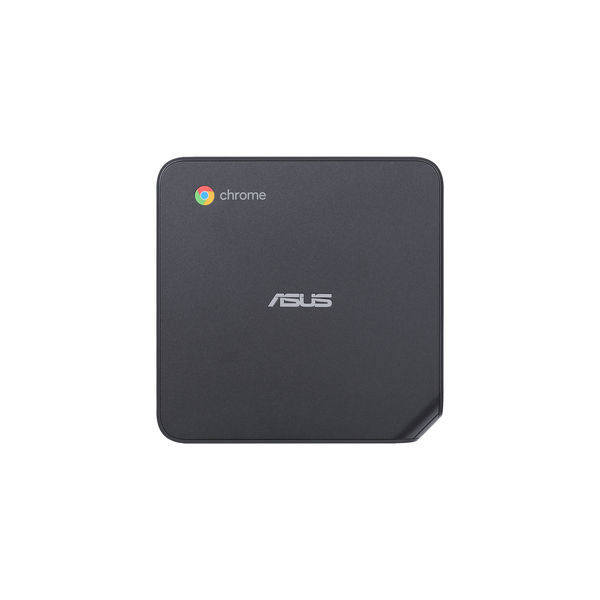

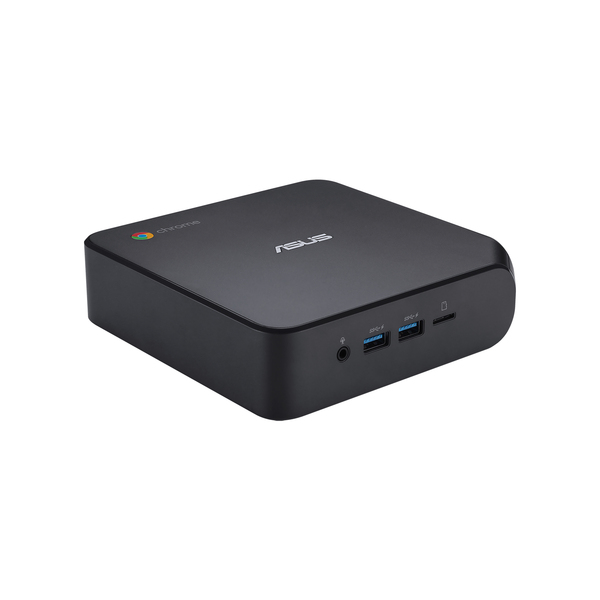

ASUS Chromebox 4 i7-10510U, 8GB, 128GB SSD, Chrome OS Mini PC, Black
| Technical details | |
| Device type | SSD |
| Processor | |
| Processor model | i7-10510U |
| Number of processors installed | 1 |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 4.9 GHz |
| Processor cache | 8 MB |
| Processor frequency | 1.8 GHz |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0.8 GHz |
| Configurable TDP-up frequency | 2.3 GHz |
| Configurable TDP-up | 25 W |
| Processor generation | 10th gen Intel® Core™ i7 |
| Hard drive | |
| Total storage capacity | 128 GB |
| Memory | |
| Internal memory type | DDR4 SDRAM |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 128 GB |
| Memory clock speed | 2666 MHz |
| Memory layout (slots x size) | 2 x 4 GB |
| Internal memory | 8 GB |
| Display | |
| Display included | ![]() |
| Touchscreen | ![]() |
| Audio | |
| Built-in speaker(s) | ![]() |
| Ports & interfaces | |
| Ethernet LAN | ![]() |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | ![]() |
| DC-in jack | ![]() |
| DVI port | ![]() |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| Combo headphone/mic port | ![]() |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 5 |
| Weight & dimensions | |
| Weight | 1 kg |
| Height | 4 cm |
| Width | 14.85 cm |
| Depth | 14.85 cm |
| Energy management | |
| Power supply | 90 W |
| Networking | |
| Wi-Fi standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax |
| Cabling technology | 10/100/1000Base-T(X) |
| Bluetooth version | 5.0 |
| Ethernet LAN | ![]() |
| Antenna type | 2x2 |
| Bluetooth | ![]() |
| LAN controller | Realtek RTL8111H-CG |
| Wi-Fi | ![]() |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Storage | |
| Drive capacity | 128 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| Optical drive type | No |
| Card reader integrated | ![]() |
| SSD interface | PCI Express |
| Number of SSDs installed | 1 |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| SSD form factor | M.2 |
| NVMe | ![]() |
| Total SSDs capacity | 128 GB |
| Certificates | |
| Certification | BSMI/CB/CE/FCC/UL/Energy Star/C-Tick/WiFi/RF/VCCI |
| Operating system/software | |
| Operating system installed | Chrome OS |
| Operating system architecture | 64-bit |
| Packaging content | |
| Mouse included | ![]() |
| Keyboard included | ![]() |
| Design | |
| Chassis type | Mini PC |
| Cable lock slot | ![]() |
| Product colour | Black |
| Placement supported | Horizontal/Vertical |
| Product type | Mini PC |
| Cable lock slot type | Kensington |
| Colour name | Gun Metal |
| Graphics | |
| On-board graphics card model | Intel UHD Graphics |
| Discrete graphics card model | Not available |
| On-board graphics card | ![]() |
| Discrete graphics card | ![]() |
| On-board GPU manufacturer | Intel |
| Processor special features | |
| Intel Flex Memory Access | ![]() |
| Enhanced Intel SpeedStep Technology | ![]() |
| Execute Disable Bit | ![]() |
| Idle States | ![]() |
| Intel Trusted Execution Technology | ![]() |
| CPU configuration (max) | 1 |
| Intel VT-x with Extended Page Tables (EPT) | ![]() |
| Embedded options available | ![]() |
| Intel TSX-NI | ![]() |
| Intel 64 | ![]() |
| Intel Stable Image Platform Program (SIPP) | ![]() |
| Intel Virtualization Technology for Directed I/O (VT-d) | ![]() |
| Intel Clear Video Technology | ![]() |
| Intel Software Guard Extensions (Intel SGX) | ![]() |
| Intel Virtualization Technology (VT-x) | ![]() |
| Performance | |
| Product type | Mini PC |
| Audio chip | Realtek ALC5662-CG |
| Logistics data | |
| Harmonized System (HS) code | 84715000 |
| EAN | 4711081269601 |
| Warranty | 2 years |
The ASUS Chromebox 4 is a mini PC designed for web-based productivity and multitasking. It is equipped with a 10th Generation Intel Core i7 processor and 8 GB of DDR4 memory to handle common applications and media streaming. The system is capable of driving up to three 4K displays simultaneously, making it a viable option for multi-monitor workstations. Running on Chrome OS, the device provides direct access to applications available through the Google Play Store within a compact physical footprint.
The internal hardware configuration includes an Intel Core i7-10510U processor with four cores and a boost frequency of up to 4.9 GHz. For storage, it utilizes a 128 GB solid-state drive, which facilitates faster system boot and application load times. Graphics are handled by the integrated Intel UHD Graphics controller. Connectivity options consist of Wi-Fi 6 for wireless networking, a Gigabit Ethernet port for wired connections, and multiple USB ports, including a USB-C 3.2 Gen 1 port that supports both data transfer and DisplayPort video output. The chassis measures 148.5 x 148.5 x 40 mm.
Key Features:- Processor: Intel Core i7-10510U with 4 cores and a 1.8 GHz base frequency
- Memory: 8 GB DDR4 at 2666 MHz
- Storage: 128 GB solid-state drive
- Graphics: Integrated Intel UHD Graphics
- Operating system: Chrome OS
- Networking: Wi-Fi 6, Gigabit Ethernet, Bluetooth 5.0
- Ports: 2 USB 3.2 Gen 1 Type-A, 1 USB-C 3.2 Gen 1, 2 HDMI, 1 audio jack, 1 card reader
- Chassis & size: Mini PC, 148.5 x 148.5 x 40 mm
- Power supply: 90W
