Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Weight & dimensions | |
| Weight | 1.67 kg |
| Fan thickness | 2.5 cm |
| Radiator width | 12 cm |
| Radiator depth | 40.2 cm |
| Radiator height | 2.7 cm |
| Tube length | 46.5 cm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Waterblock width | 7.5 cm |
| Waterblock depth | 8.6 cm |
| Waterblock height | 7.1 cm |
| Energy management | |
| Pump voltage | 12 V |
| Pump current | 0.2 mA |
| Fan voltage | 12 V |
| Fan current | 0.17 A |
| Fan power consumption | 2.04 W |
| Pump power consumption | 2.4 W |

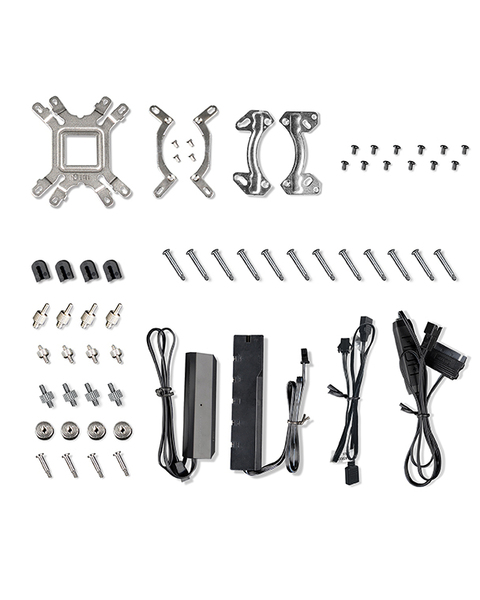

| Packaging content | |
| Mounting kit |  |
| Screws included | |
| Installation instruction | |
| CPU socket spacer(s) | |
| CPU bracket(s) | |
| Adapter frame included | |
| Other features | |
| Noise level | 30 dB |
| Country of origin | China |
| Number of fans supported | 3 |
| Design | |
| Material | Aluminium, Copper |
| Product colour | Black |
| Number of fans | 3 fan(s) |
| Illumination colour | Multi |
| Fan connector | 4-pin |
| Radiator material | Aluminium |
| Illumination LED | |
| Performance | |
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+, Socket TR4, Socket sTRX4 |
| Suitable location | Processor |
| Maximum airflow | 69.34 cfm |
| Maximum air pressure | 2.42 mmH2O |
| Pump motor speed | 2550 RPM |
| Fan speed (max) | 1800 RPM |
| Fan speed (min) | 500 RPM |
| Quantity per pack | 1 pc(s) |
| Pump noise level | 17.8 dB |
| Pulse-width modulation (PWM) support | |
| Pump connector | 3-pin |
| EAN | 6933412727293 |
| Source: Icecat.biz | |
BETTER BY DESIGN
The iconic DeepCool Castle EX infinity mirror pump design with a new twist. See the new DeepCool logo on an enlarged mirror chip for a new instant classic.
SHINE ON

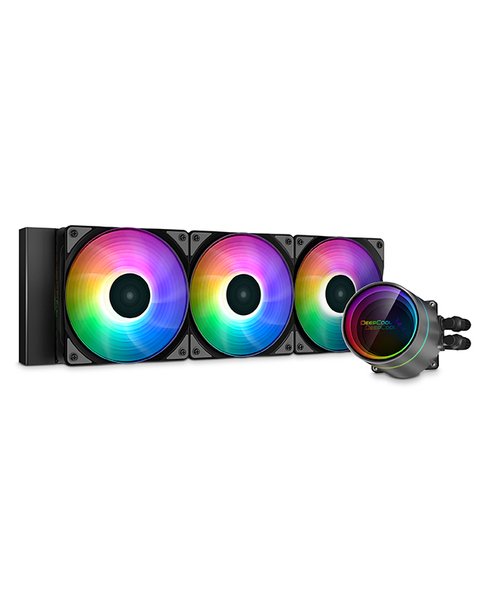

Three DeepCool CF120 series PWM fans output brilliant color with 12 RGB LEDs per fan.
EFFICIENT COOLING
Designed from the inside out, the new dual-chamber pump features an optimized flow route for better heat exchange.
POWERFUL AND QUIET
A stronger 3-phase motor provides higher cooling performance with an increased flow rate while keeping noise levels low.
MORE SURFACE AREA
With 25% more skived fins on the copper cold plate, the larger surface area effectively dissipates heat.
PROTECT WHAT’S YOURS
After 3 years of R&D, DeepCool launched a new standard for liquid cooling systems—Anti-Leak Technology.This new design helps regulate system pressure balance to significantly improve operational safety and minimize leakage.
The iconic DeepCool Castle EX infinity mirror pump design with a new twist. See the new DeepCool logo on an enlarged mirror chip for a new instant classic.
SHINE ON
Three DeepCool CF120 series PWM fans output brilliant color with 12 RGB LEDs per fan.
EFFICIENT COOLING
Designed from the inside out, the new dual-chamber pump features an optimized flow route for better heat exchange.
POWERFUL AND QUIET
A stronger 3-phase motor provides higher cooling performance with an increased flow rate while keeping noise levels low.
MORE SURFACE AREA
With 25% more skived fins on the copper cold plate, the larger surface area effectively dissipates heat.
PROTECT WHAT’S YOURS
After 3 years of R&D, DeepCool launched a new standard for liquid cooling systems—Anti-Leak Technology.This new design helps regulate system pressure balance to significantly improve operational safety and minimize leakage.
